Short Description:

Tianjin Rainbow is specialized in the manufacture of steel products. Including : steel tubes, steel anlge, hot rolled T bar , welded T bar , H beam ofdifferent standards, hot dip galvanizing service .


Whatsapp

Product Detail

Product Tags

Product Description:

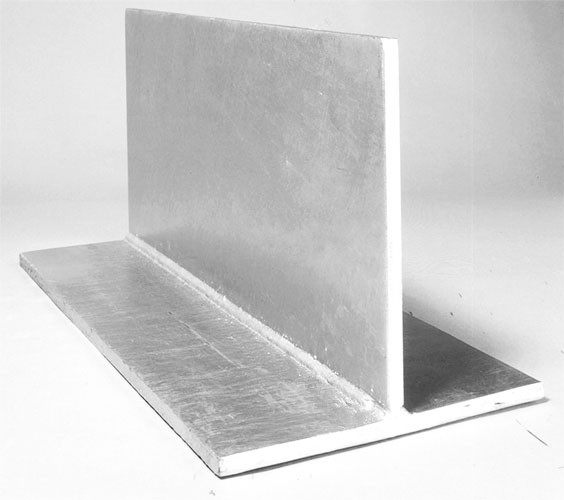

Traditional-T-Ba

Our T bar Feathers:

Size: 150*6*150*6mm-400*20*400*20mm or as customers' request.
Materials: G250,G300,G350,SS400,A36, Q235B, Q345B,S235jr,S355jr
Standard: AS/NZS 1554.5:2004,ASTM, ANSI, GB, DIN, JIS, EN, ISO.
Surface treatment: Hot dipped galvanized 600g/ or prime painting .
Welding: One continuous weld full length.
Straightness: +/-2mm
Camber & Sweep: +/-2mm
Flatness: +/-2mm

Product Specification:

We are specialized in Prime steel T bar, Sizes as follow:
Section
Size
Length(m)
kg/Piece
Section
Size
Length(m)
Kg/Piece
T Bar
200*6*200*6
0.9
16.956
T Bar
200*10*200*10
2.1
65.94
T Bar
200*6*200*6
1.2
22.608
T Bar
200*10*200*10
2.4
75.36
T Bar
200*6*200*6
1.5
28.26
T Bar
200*10*200*10
2.7
84.78
T Bar
200*6*200*6
1.8
33.912
T Bar
200*10*200*10
3
94.2
T Bar
200*6*200*6
2.1
39.564
T Bar
200*10*200*10
3.3
103.62
T Bar
200*6*200*6
2.4
45.216
T Bar
200*10*200*10
3.6
113.04
T Bar
200*6*200*6
2.7
50.868
T Bar
200*10*200*10
3.9
122.46
T Bar
200*6*200*6
3
56.52
T Bar
200*10*200*10
4.2
131.88
T Bar
200*6*200*6
3.3
62.172
T Bar
200*10*200*10
4.5
141.3
T Bar
200*6*200*6
3.6
67.824
T Bar
200*10*200*10
5.2
163.28
T Bar
200*8*200*6
0.9
19.8
T Bar
200*10*200*10
5.4
169.56
T Bar
200*8*200*6
1.2
26.4
T Bar
200*10*200*10
5.7
178.98
T Bar
200*8*200*6
1.5
33
T Bar
200*10*200*10
6
188.4
T Bar
200*8*200*6
1.8
39.6
T Bar
250*12*200*10
3.9
153.075
T Bar
200*8*200*6
2.1
46.2
T Bar
250*12*200*10
4.2
164.85
T Bar
200*8*200*6
2.4
52.8
T Bar
250*12*200*10
4.5
176.625
T Bar
200*8*200*6
2.7
59.4
T Bar
250*12*200*10
4.8
188.4
T Bar
200*8*200*6
3
66
T Bar
250*12*200*10
5.1
200.175
T Bar
200*8*200*6
3.3
72.6
T Bar
250*12*200*10
5.4
211.95
T Bar
200*8*200*6
3.6
79.2
T Bar
250*12*200*10
5.7
223.725
T Bar
200*8*200*6
3.9
85.8
T Bar
250*12*200*10
6
235.5
T Bar
250*10*200*6
4.2
121.968
T Bar
250*10*200*10
4.2
148.386
T Bar
250*10*200*6
4.5
130.68
T Bar
250*10*200*10
4.5
158.985
T Bar
250*10*200*6
4.8
139.392
T Bar
250*10*200*10
4.8
169.584
T Bar
250*10*200*6
5.1
148.104
T Bar
250*10*200*10
5.1
180.183
T Bar
250*10*200*6
5.2
151.008
T Bar
250*10*200*10
5.2
183.716
T Bar
250*10*200*6
5.4
156.816
T Bar
250*10*200*10
5.4
190.782
T Bar
250*10*200*6
5.7
165.528
T Bar
250*10*200*10
5.7
201.381
T Bar
250*10*200*6
6
174.24
T Bar
250*10*200*10
6
211.98

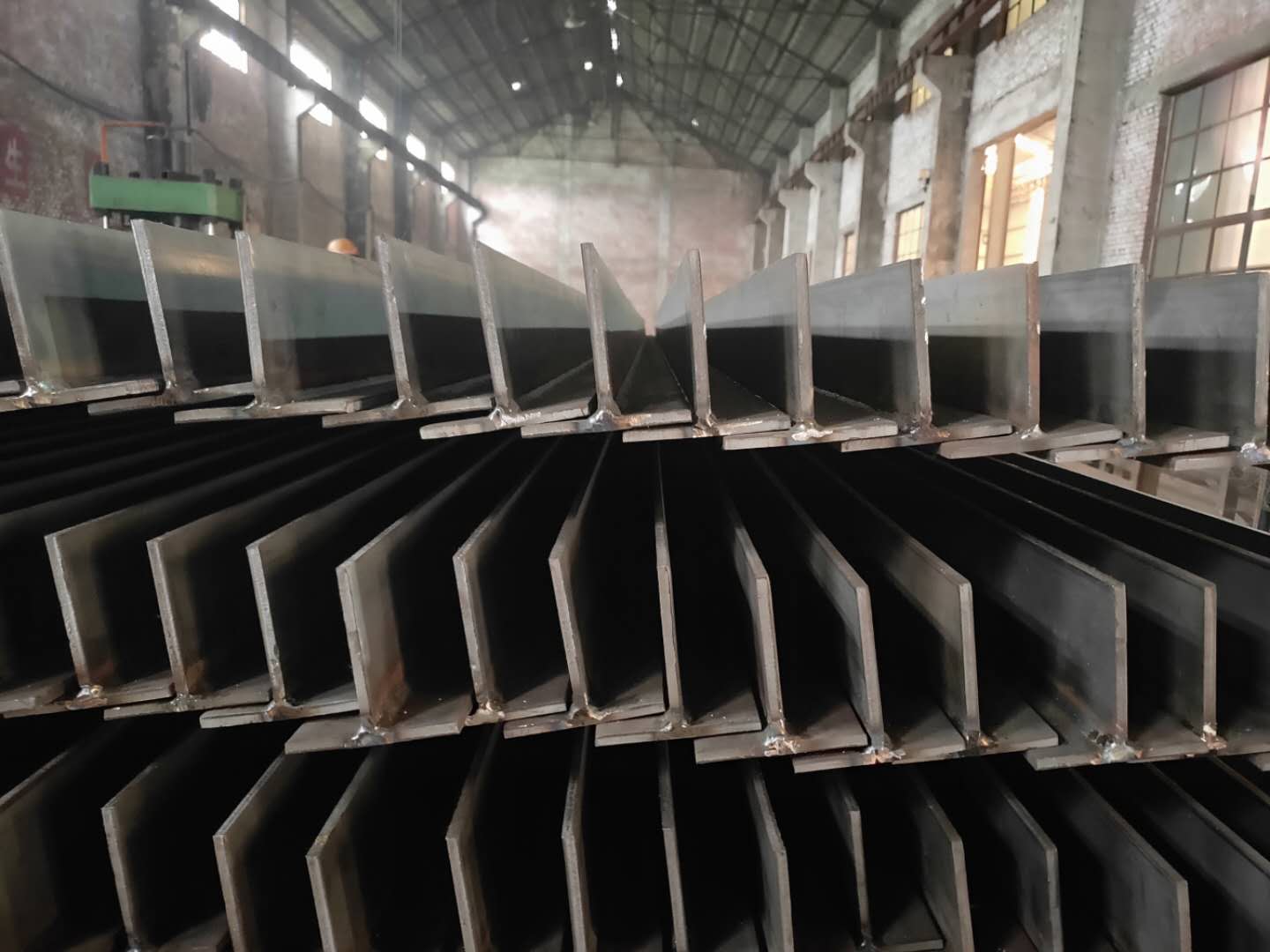

Product Display:

T bar 10
T bar 11

 is a type of steel cast into a T shape. Because its section and the English letter "T" the same name.

 can be divided into two kinds:

1. It is directly divided into H-section steel. T-section steel uses the same standard as H-section steel (GB/T11263-2017), and it is an ideal material to replace double-angle steel welding. It has the advantages of strong bending ability, simple construction, cost saving and light structural weight.

2. Hot-rolled T-shaped steel is mainly used in mechanical and filling hardware steel.

Hot dip galvanized  All of our lintel and t bar range include the following features and benefits;

• Fully hot dip galvanized to AS/NZS4680

• R3 Durability Rating to AS/NZS2699.3

• Full product warranty

• Fully engineered

• Compliant with relevant Australian Building Codes & Standards

• Labelled & Bar Coded (excludes custom lines)

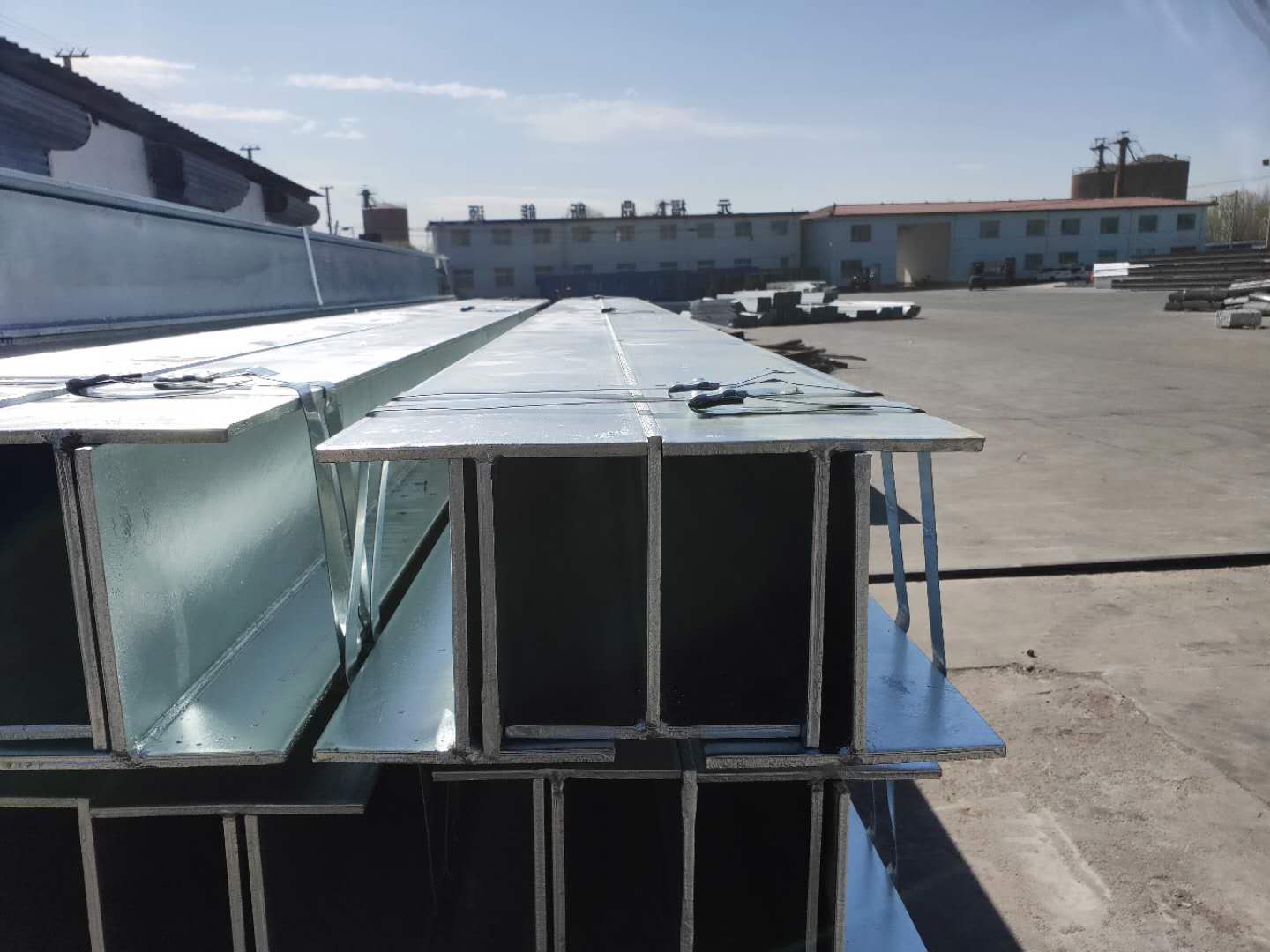

Packing& Loading:

t bar6
T bar5

Company Profile:

tube

Welcome to Tianjin Rainbow Steel. We manufacture steel products or steel structure for the Solar Mounting Steel Structure, Transmission & Distribution Steel Structures (Towers & Poles) , Construction, Industrial, Scaffolding and Greenhouse Construction. Tianjin Rainbow Steel Group was founded in 2000, Located in Tianjin City. After several years of development, Rainbow Steel has developed into an intergrated iron and steel enterprise of galvanized steel pipe, galvanized steel angle bar, galvanized profiles, steel structures, and we are also the biggest electrical transmission steel tower and pole factory in china. our group has our own galvanizing mill, So all the jobs can be galvanized from our own factory. Discover our vast metal product range including Steel Pipes, Iron Angles, Iron Beams, Perforated Steel Products, Welded Steel Structures, Steel Tower&Pole, Exciting projects, extensive industry expertise and high-quality service offering.
