2019 wholesale price Electrical Gi Conduit Pipes - Universal Concrete Insert Strut – Rainbow Detail:
Tianjin Rainbow Steel Group was founded in 2000, located in Tianjin City. With development of the past 20 years, Rainbow Steel became into an integrated iron and steel enterprise of galvanized steel pipe, galvanized steel angle bar, galvanized profiles, galvanized big steel structures for construction.Our team has manufacturing technologies, processing experiences, engineering capabilities and advanced equipments. Our people are intelligent and hardworking. Our products includes big steel structures for construction, high way traffic facilities, high speed rail steel structure post, subway steel props or steel structures, solar mounting system, and other big jobs of steel structure.
Concrete Inserts are the ideal solution for easily installed anchors to concrete foundations. Made from cold-rolled steel and available in Pre-Galvanized (PG), Hot-Dip Galvanized (HD), and Stainless Steel finishes (type 316 [ST6] or 304 [ST4]), our inserts are designed for high performance and reliability in every application throughout the construction and civil engineering industries.
Our inserts are easily installed without the dust, noise, or sparks of other anchoring methods. Easily removable plastic strips or Ethafoam filling prevent concrete from entering the channel during the pour, and twist-in strut nuts allow for adjustable anchoring positions along the channel.
STANDARD CONCRETE INSERTS
Strut Spot Concrete Inserts and Continuous Concrete Inserts offer reliable load bearing capability with easy installation.
Spot inserts are ideal for single pipe-support or trapeze-style hangers with a maximum allowable load of 800 pounds when used with Flex-Strut FS-7025-1/2″ insert square nuts or larger (sold separately). 1/4″ and 3/8″ square nuts also available upon request.
Continuous inserts can be installed in ceilings or walls for a variety of applications. Depending on the size of the product, our inserts offer maximum allowable loads from 800 pounds to 2,000 pounds per foot, and can be ordered in up to 20-foot lengths.
HEAVY-DUTY CONCRETE INSERTS
When the job calls for heavy load, spot applications, such as curtain walls or glass/stone retention, our engineers can assist you in designing heavy-duty concrete inserts to meet your job requirements.
Our heavy-duty concrete inserts are Hot-Dip Galvanized and come complete with anchor end caps, plastic closure strip, and headed studs for a secure anchor to the concrete. Multiple stud lengths and diameters are available based on loading requirements. When properly embedded, our heavy-duty concrete inserts are ideal for a variety of heavy loads and small edge distance applications, including:
- Curtain wall, brick, stone, and precast facades
- Structural and architectural steel components
- Mechanical and electrical services
- Machine/asset anchoring
- Elevator and escalator components
Concrete Insert is ideal for anchoring structures and supports to concrete. This product allows easy installation before the concrete is poured, and attachment anywhere along its length using 1-5/8″ Fittings,Channel Nuts or other products. It is perfect for applications that may need to be re-configured or re-anchored.
This product may be used for anchorage on ceilings, floors or walls. Being a pre-pour installation, it is ideal for applications with cracked concrete concerns and avoids the creation of Silica Dust during installation. It is also OPA approved for seismic bracing applications.
Channel dimensions are 1 5/8″ wide x 1 3/8″ deep x 12 ga. thick. Embedment tabs are spaced at 8″ O.C. and have an embedment depth of 2-7/8″. The product may be supplied with Back Plates, End Caps and a Closure Strip to prevent concrete seepage into the channel, per the options below.
Our Concrete Insert is available in Pre-Galvanized (PG), Hot-Dip Galvanized (HG), and Plain (PL).
Options:
“CS/EC” Suffix – With Closure Strip, End Caps & Back Plates
“W/O” Suffix – No Closure Strip, no End Caps, with Back Plates
Part No. Length (ft) Finish Product Weight / Piece (lbs)
20′ CS/EC 20′ PG 38.8
20′ CS/EC 20′ HG 40.9
20′ CS/EC 20′ PL 38.6
20′ W/O 20′ PG 38.6
20′ W/O 20′ HG 38.6
20′ W/O 20′ PL 38.6

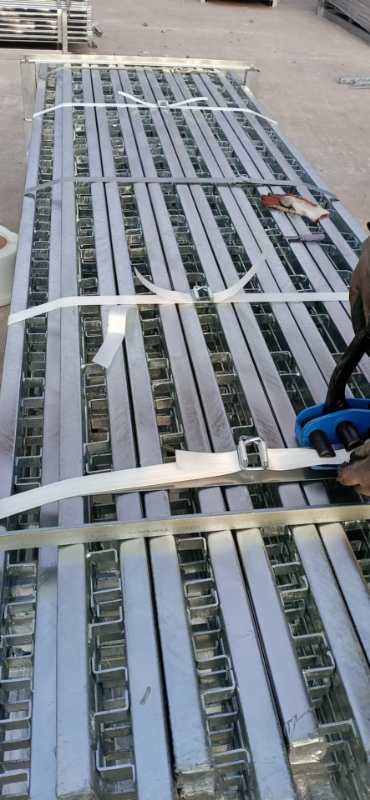

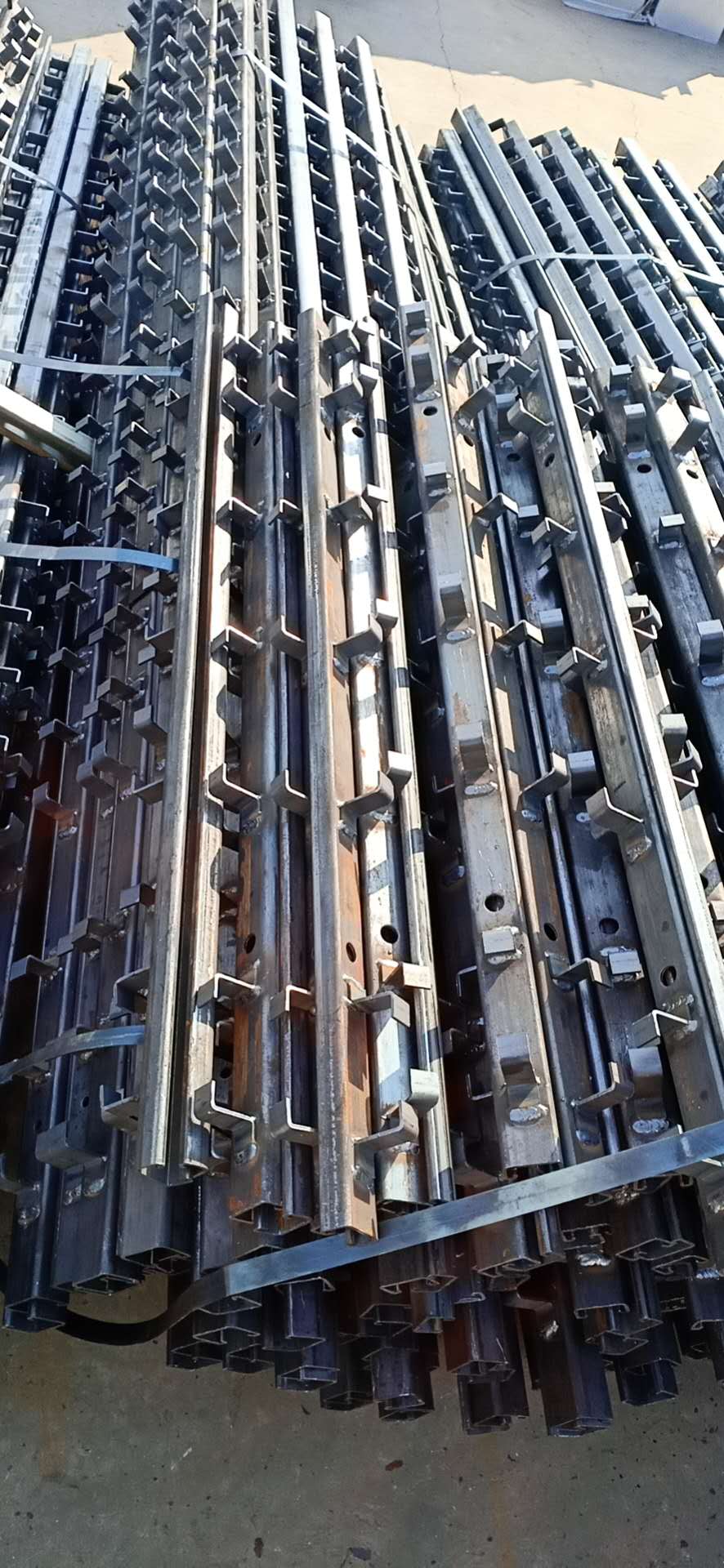

Product detail pictures:
