Agricultural hose reel irrigation system

Short Description:

Hose reel irrigation system uses the sprinkler pressure water to drive the water turbine to rotate, the winch to rotate through the variable-speed device, and the sprinkler car to move and spray the irrigation machinery automatically.


Product Detail

Product Tags

Product Description:

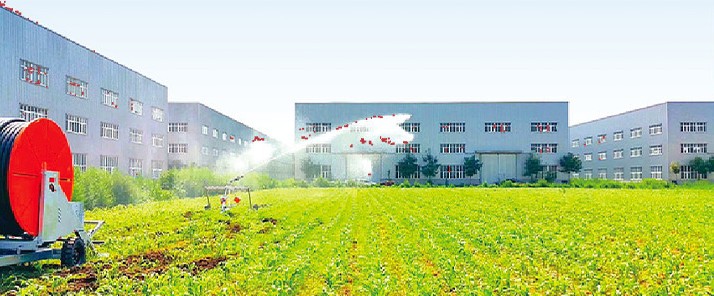

hose reel irrigation system 2



Hose reel irrigation system uses the sprinkler pressure water to drive the water turbine to rotate, the winch to rotate through the variable-speed device, and the sprinkler car to move and spray the irrigation machinery automatically. It has the advantages of convenient movement, simple operation, saving labor and time, high irrigation precision, good water-saving effect, strong adaptability and so on. It is suitable for the water-saving irrigation machine of 100-300 mu strip land.

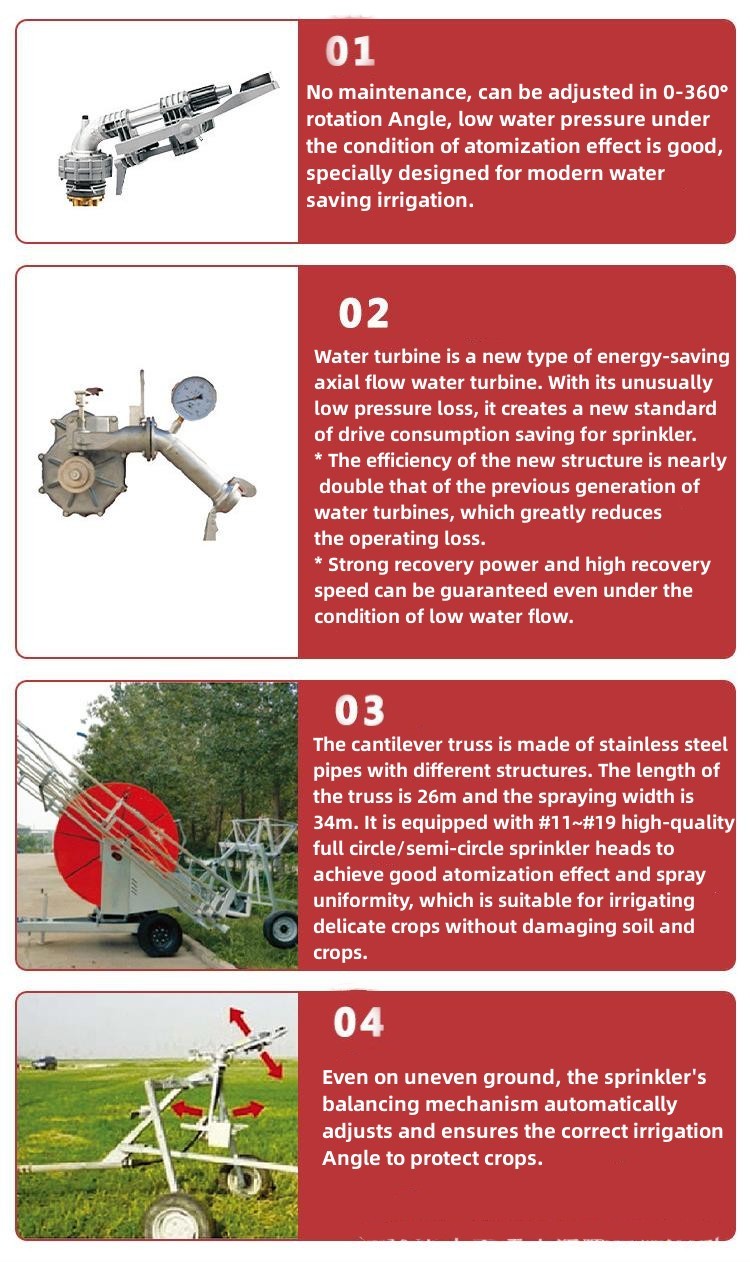

hose reel irrigation system 8

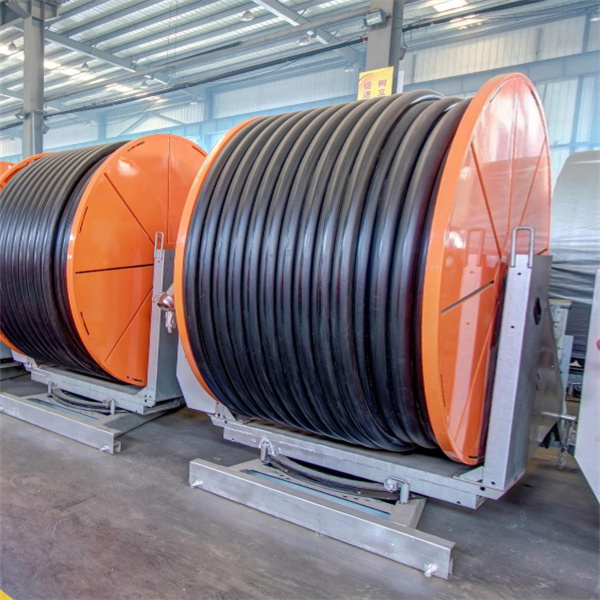

hose reel irrigation system 9

Product Specification:

Basic Specification of JP75-300 Hose Reel
Item
Description
Parameter
1
External Dimensions(L*W*H,mm)
3500*2100*3100
2
PE pipe(Dia*L,mm*m)
75*300
3
Coverage Length(m)
300
4
Coverage Width(m)
27-43
5
Nozzle Range(mm)
3.6-7.5
6
Inlet Water Pressure(Mpa)
0.35-1
7
Water Flow(m³/h)
15-37.8
8
Sprinkler Range(m)
27-43
9
Boom Type Coverage Width(m)
34
10
Precipitation(mm/h)
6-10
11
Max.Controlled Area(ha)Per Time
20



Product Display:

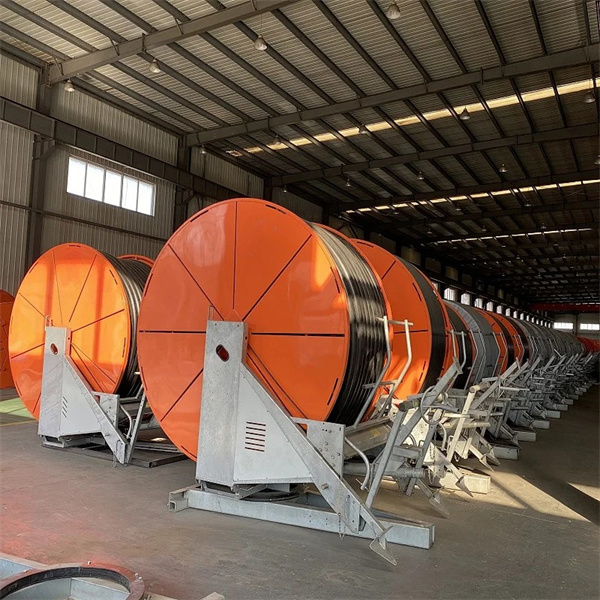

hose reel irrigation system 10

Product Applications:

hose reel irrigation system 5

Spray gun type: ultra-long range, irrigation uniformity, simulated artificial rainfall, in a simple way to irrigate a variety of high and low stalk crops.

hose reel irrigation system 7

Cantilever type: Low pressure irrigation of delicate crops, no damage to soil and crops, control width up to 34m

FAQ:

1.What is hose reel irrigation system?
Hose reel irrigation systems, also called traveling gun systems, consist of a single powerful, portable sprinkler head that sprays water in a circular pattern.
2.What are the advantages of using hose reel?

Reduces wear: Fluid hoses are typically made of rubber and will wear over time. Allowing vehicles or equipment to roll over the hose will cause damage and premature wear. Using a hose reel will increase the life of the hose in a very significant way and reduce costs of premature replacement of hoses.
3.What is function of hose reel?

Fire hose reels are located to provide a reasonably accessible and controlled supply of water to combat a potential fire risk. They are ideal for large high risk environments such as schools, hotels, factories etc.
