Aluminium Building Construction Materials Fast Aluminum Formwork for Concrete

Short Description:

Steel frame formwork is made up of 12mm thick plywood covered with hollow steel. It is a complete product system with many types,such as wall formwork, column formwork, angle formwork and so on. Ancillary products and accessory variety are complete, and product assembly is convenient. It is practical, safe, reliable, cost-saving and applicable to various solutions. As a result, it provides a set of complete and reliable formwork products for building construction, especially wall and column construction.


  • Material: Aluminum, plywood
  • Feature: High Strength
  • Type: Alu Drop Head Panel & Deck form for slab construction
  • Advantage: Quick Installation
  • Project Solution Capability: Fully engineering design service
  • Product Detail

    Product Tags

    company philosophy

    Product Description

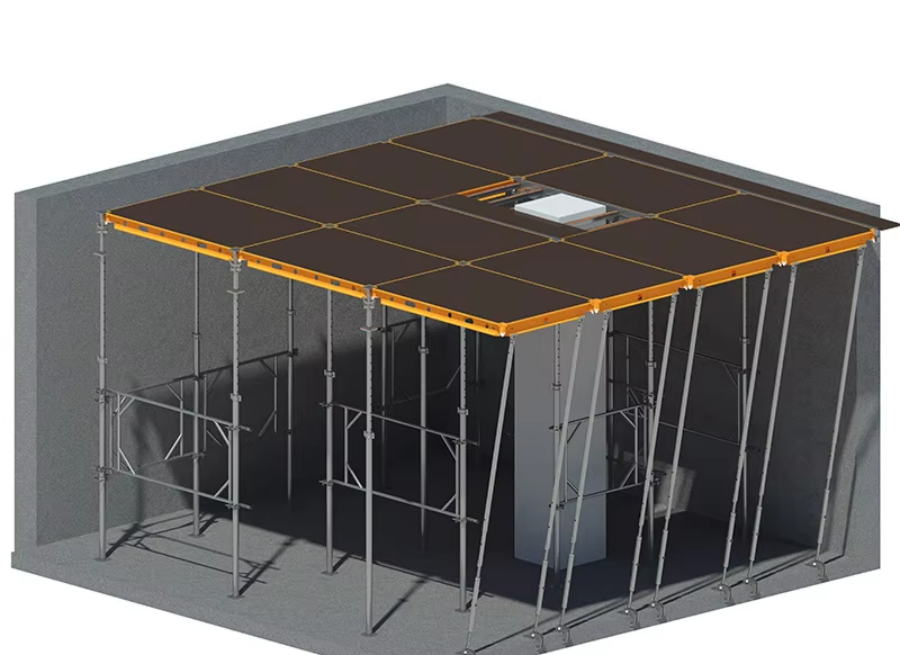

    Aluminum Frame Formwork009
    Timber Beam Formwork015

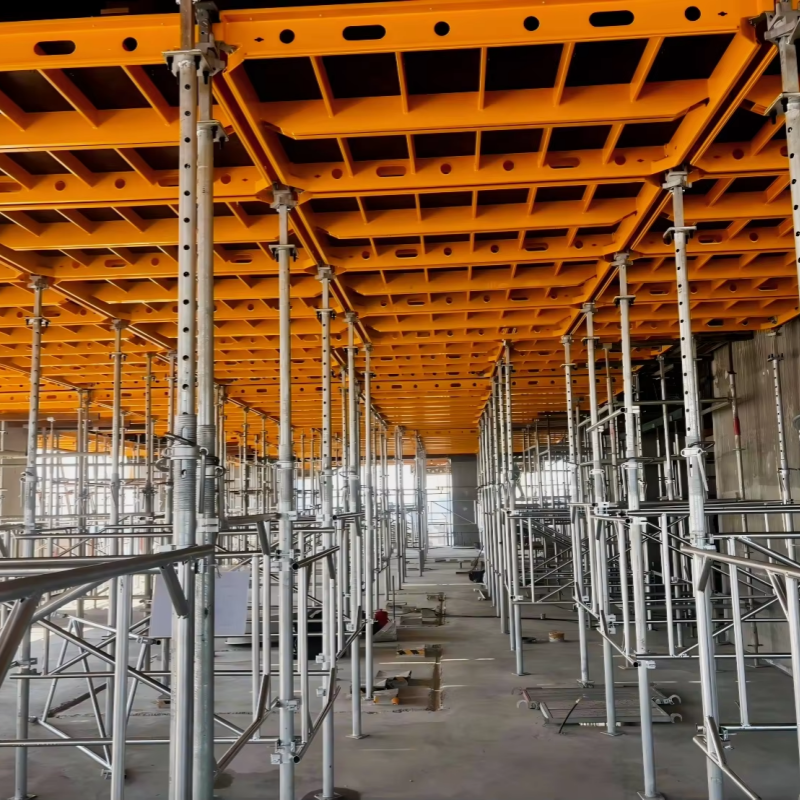

    Timber Beam Formwork016

    Introducing our innovative Steel Frame Formwork System, the ultimate solution for your construction needs. Designed with versatility and efficiency in mind, our formwork system combines the durability of a 12mm thick plywood core with the strength of hollow steel, ensuring a robust framework for any project.

    Our Steel Frame Formwork is available in various types, including wall formwork, column formwork, angle formwork, and slab formwork, making it suitable for a wide range of applications. Whether you are constructing residential buildings, commercial structures, or industrial facilities, our formwork panels provide the reliability and safety you need to get the job done right.

    What sets our Steel Frame Formwork apart is its complete product system, which includes a comprehensive range of ancillary products and accessories. This ensures that you have everything you need for seamless assembly and efficient operation on-site. The practical design allows for quick setup and dismantling, saving you valuable time and labor costs.

    In addition to its practical benefits, our Steel Frame Formwork is also cost-effective. The high-strength steel frame combined with quality plywood ensures that you receive a product that not only meets but exceeds industry standards for stability and durability. This makes it an ideal choice for contractors looking to optimize their resources while maintaining high-quality construction.

    For those seeking an alternative, we also offer Aluminum Frame Formwork, which provides similar benefits with the added advantage of lightweight handling. Both our steel and aluminum formwork options are designed to meet the diverse needs of modern construction projects.

    Choose our Steel Frame Formwork System for a reliable, safe, and efficient solution that adapts to your construction requirements. Experience the difference in quality and performance today!

    Product Specification

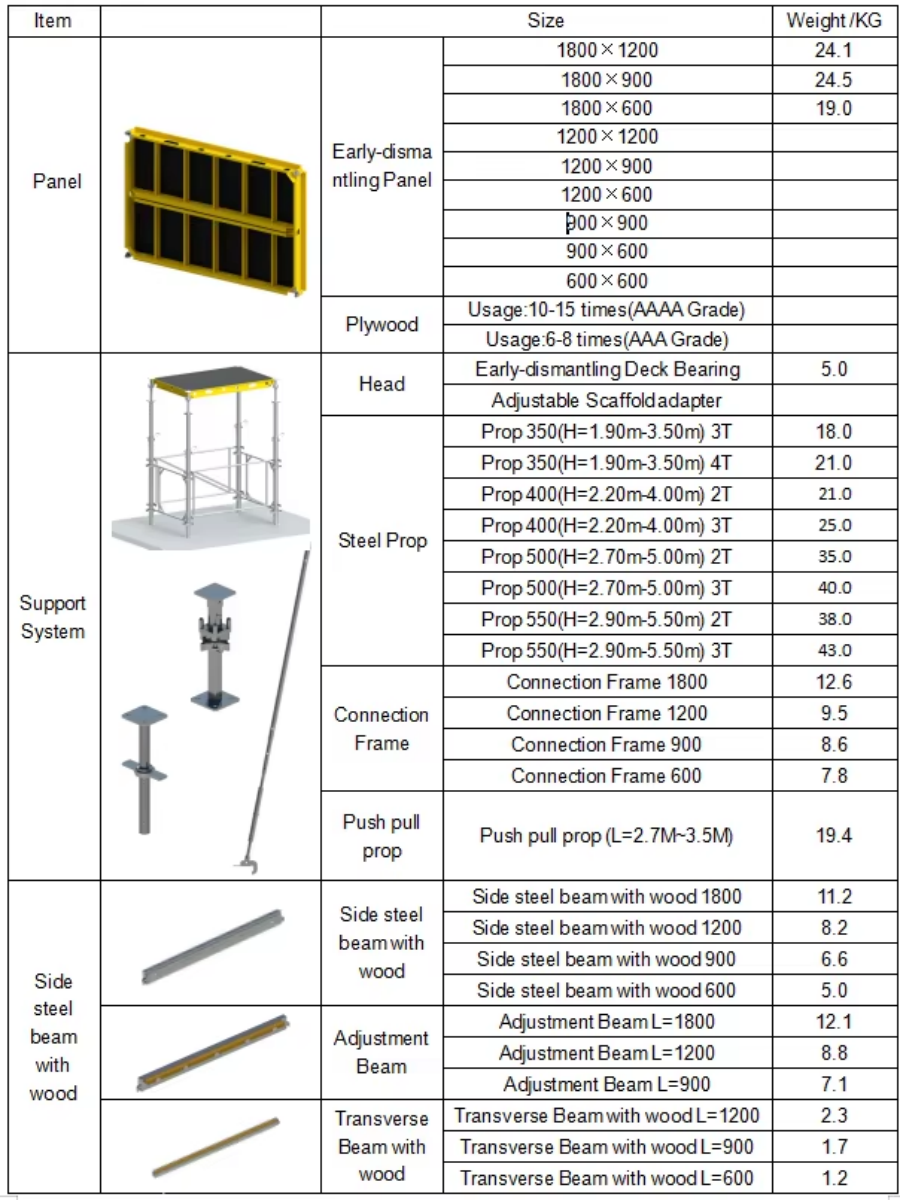

    Aluminum Frame Formwork010
    Material
    Aluminum, aluminum alloy
    Feature
    Aluminium Drop Head Form,Early drop system,Fast installation,without crane assist,slab construction,rapid construction,aluminum,European product standard,Same as Doka and Peri technology
    Type
    Alu Drop Head Panel & Deck form for slab construction
    Advantage
    Quick Installation



    Adjustable Scaffold Push Pull Prop
    Size
    Inner Tube Diameter (mm)
    Outer Tube Diameter (mm)
    Adjustable Length(mm)
    Tube Thickness (mm)


    (more customized size available)


    48.3


    60.3
    1400-2700


    1.5-2.5
    1600-2700
    1620-2640
    2000-3500
    2200-4000
    3000-5500



    Formwork Tie Rod System
    Tie rod types
    17mm tie rod
    12mm tie rod
    20mm tie rod
    hot rolling tie rod
    Material (mm)
    15/17
    10/12
    20/22,21/23,18.8/21
    15/17
    Pitch(mm)
    10/6.35
    4
    10
    10
    Length(m/pc)
    1-6
    1-6
    1-6
    1-6
    Weight(Kg/m)
    1.5
    0.72
    2.5
    1.47
    Surface
    Natural,EG
    Natural,EG
    Natural,EG
    Natural,EG
    Colour
    Original color,
    silver,golden
    Original color,
    silver,golden
    Original color,
    silver,golden
    Original color,
    silver,golden
    Craft
    cold rolled
    cold rolled
    cold rolled
    hot rolled
    Pull(KN)
    45# Steel,140-150;Q235 Steel,90-100
    50-65
    230-245
    180-190



    tie nut types
    tie nut 2legs
    tie nut 3 legs
    combined nut
    wing nut
    material
    cast iron/steel
    cast iron/steel
    cast iron
    cast iron
    weight
    400g,420g,450g,500g,530g,550g,580g,650g
    400g,420g,450g,500g,530g,550g,580g,650g
    1.05kg
    300g
    surface
    galvanized
    galvanized
    galvanized
    galvanized
    Craft
    cast
    cast
    cast
    cast
    colour
    silver/yellow
    silver/yellow
    sliver/yellow
    sliver/yellow



    Formwork Wedge Clamp
    Unit Weight
    Casted: 2.80kg Forged: 3.20kg
    Surface
    Electrical galvanized
    Material
    Q235
    Process
    Drop forged/casted
    Package
    Woven Bags with Wooden/Steel Pallets
    Standard
    EN74/BS1139

    Applications

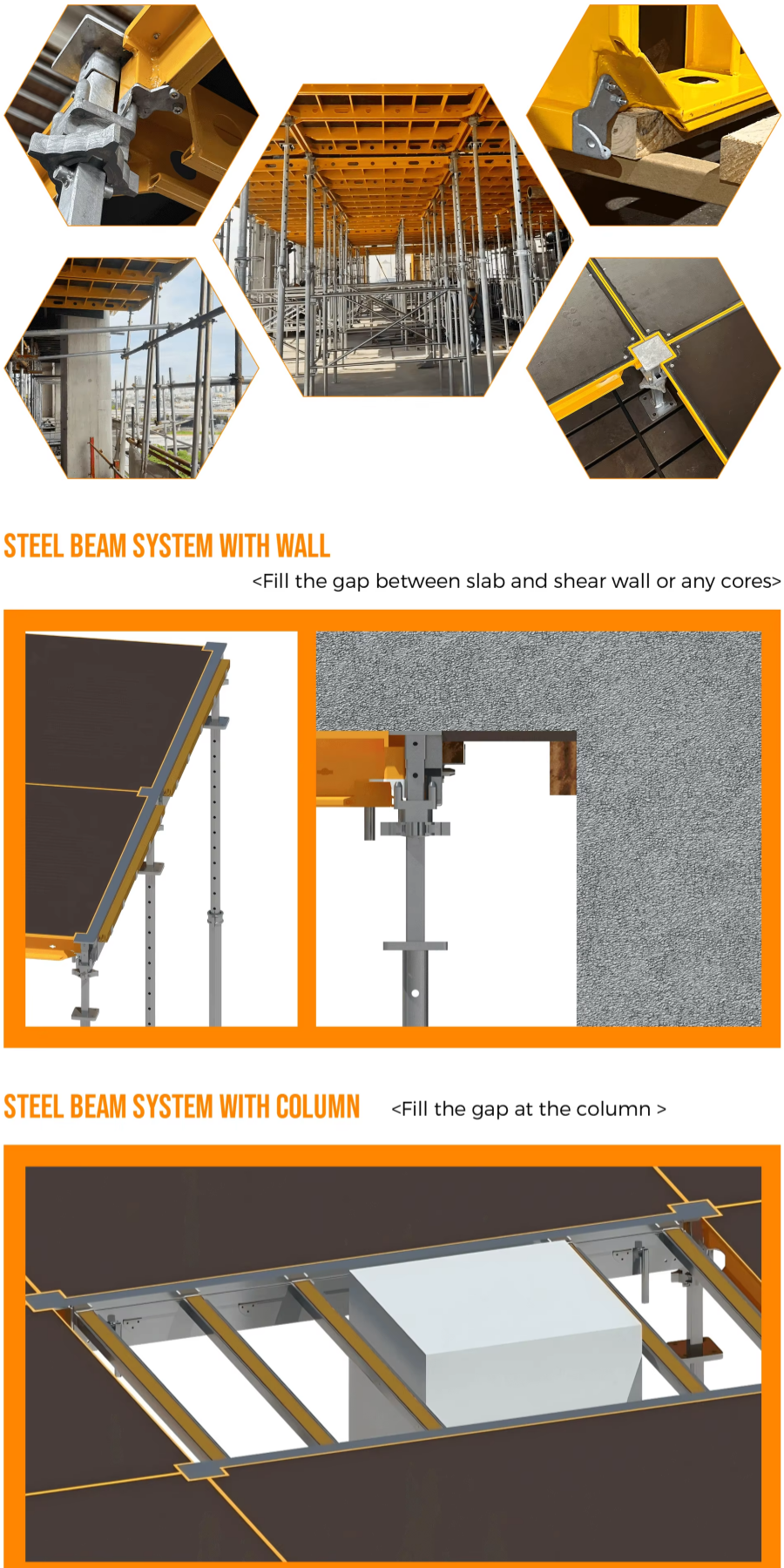

    Aluminum Frame Formwork011

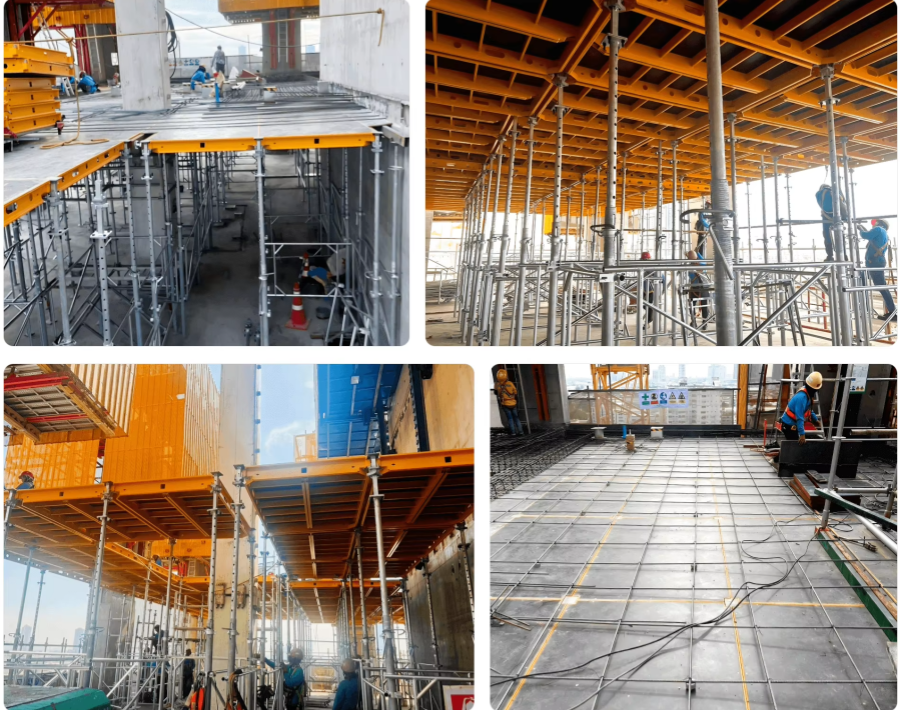

    Aluminum Frame Formwork012

    Steel formwork with wood is a type of steel frame that is used to build structures. It consists of steel formwork frame and different types of wood. The wood is usually plywood, bamboo or birch. The steel formwork frame is made from high-strength steel, so steel formwork with wood has high strength and stability. And steel formwork can be disassembled and reused multiple times, which makes high economic efficiency, and reduces construction costs and construction waste. Steel formwork is also quick to install and dismantle. It is widely used in concrete structure construction and bridge engineering.

    Product Display

    Aluminum Frame Formwork008

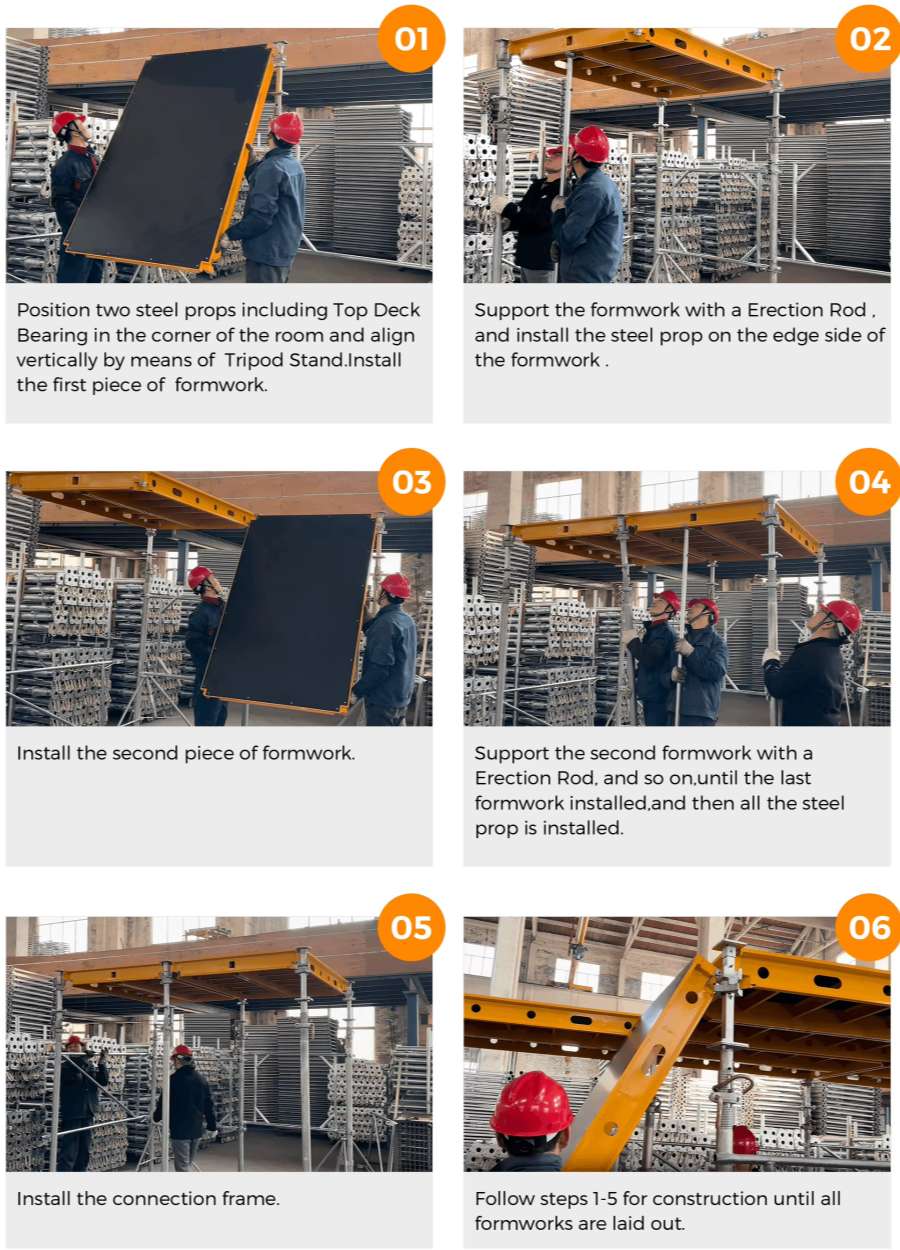

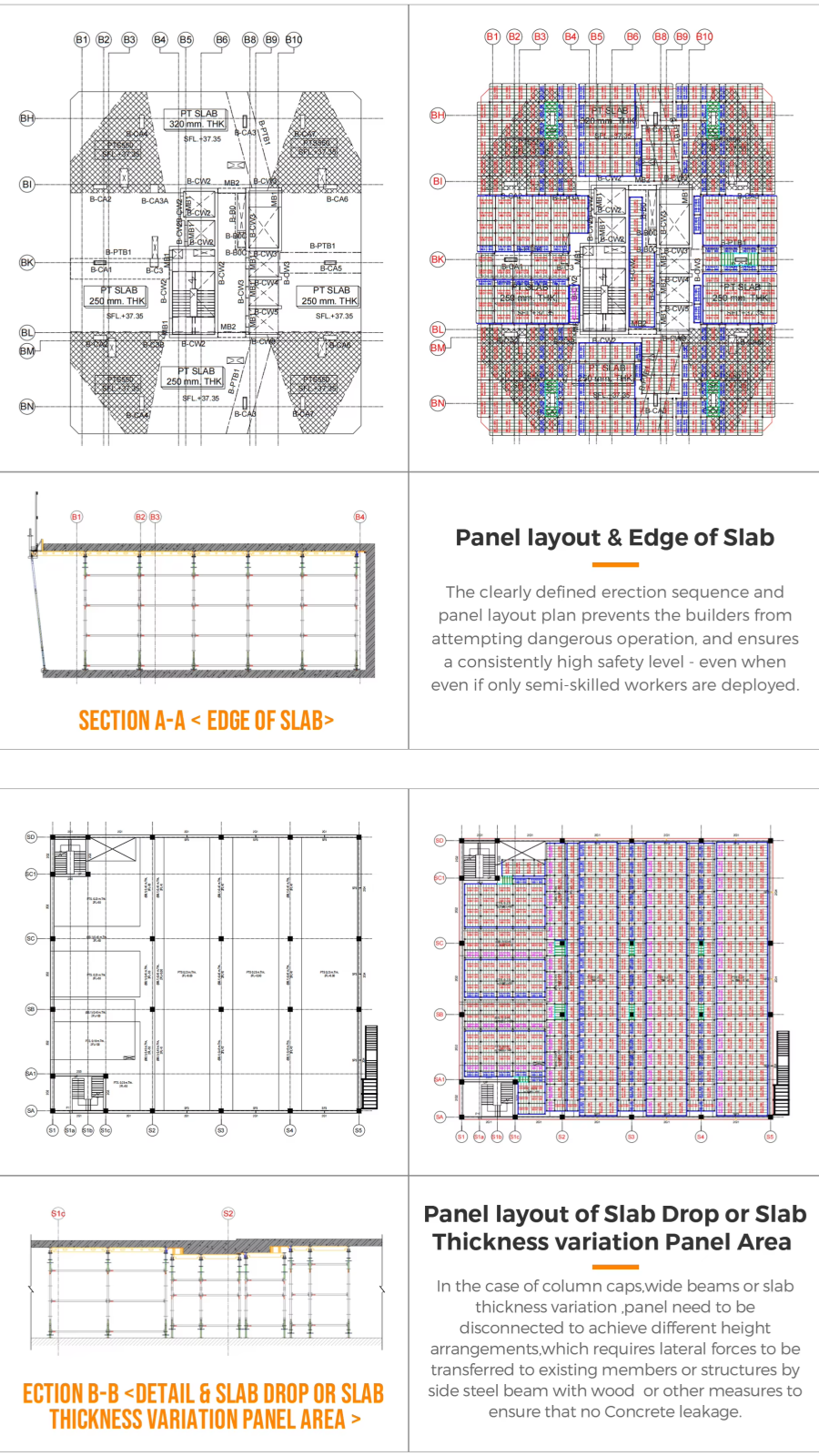

    Aluminum Frame Formwork013

    Product advantages:

    1. Safety, can provide higher case protection.

    2. Quality advantage: The quality of couplers produced by forging technology is superior to other types of products.

    3. Convenient maintenance, forging process is not easy to rust or damage.

    Packing and loading

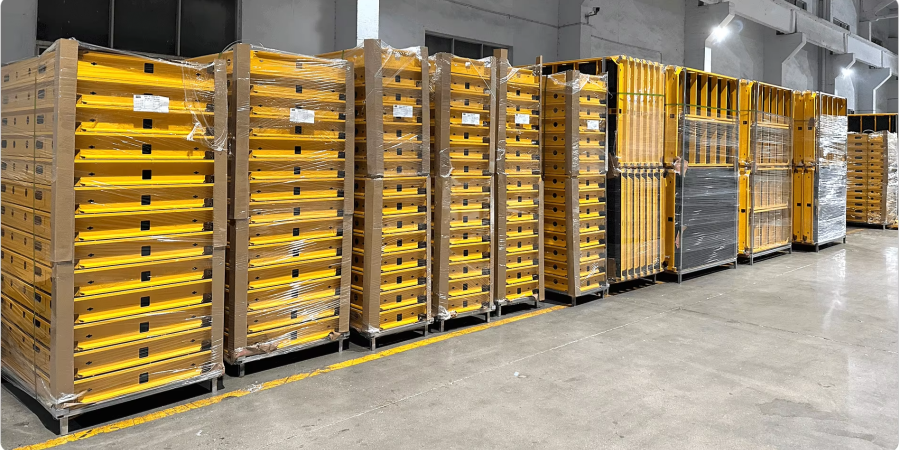

    Aluminum Frame Formwork015

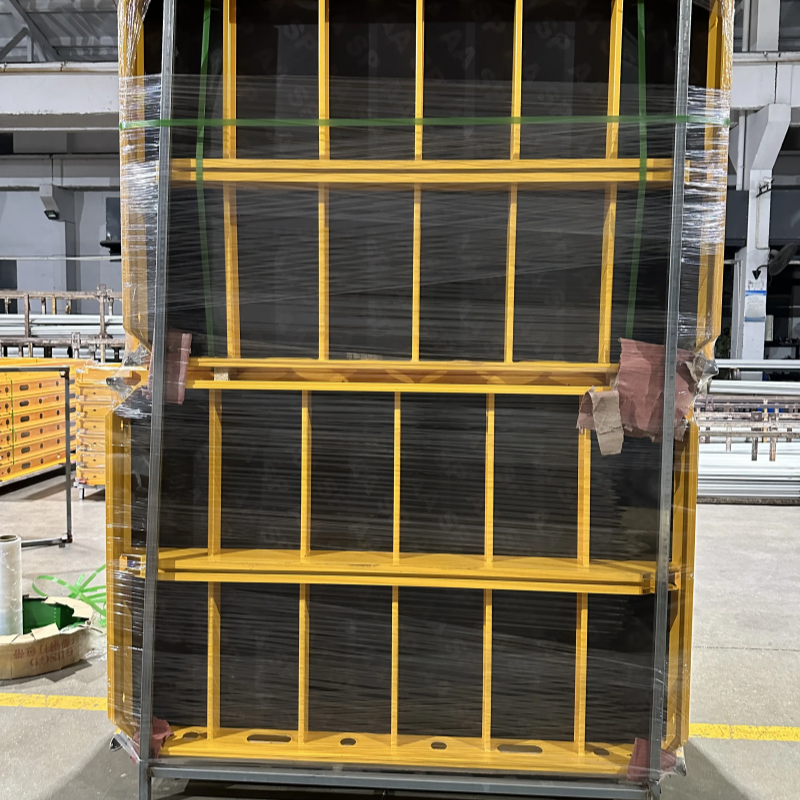

    Aluminum Frame Formwork005

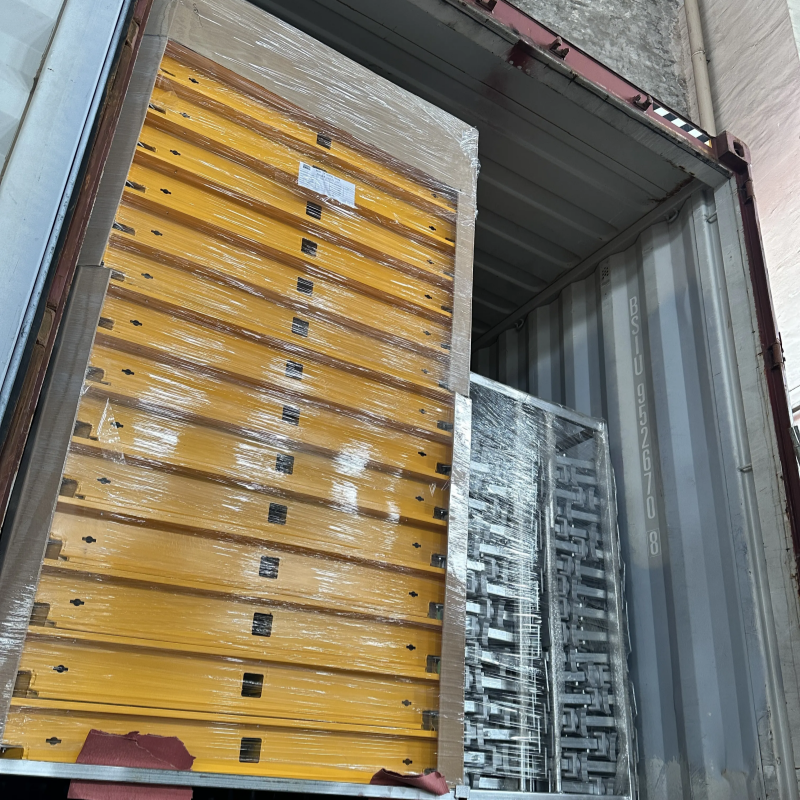

    Aluminum Frame Formwork006

    Our Workshop

    Aluminum Frame Formwork014

    Company Profile

    formwork-clamp030
    formwork-clamp029
    formwork clamp026

    FAQ

    1. who are we?
    We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
    4. why should you buy from us not from other suppliers?
    High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
