Steel Communication Pole & Angle Tower

Short Description:

Communication Tower means a freestanding structure designed and constructed specifically to support an antenna array. The structure may include a monopole tower, self-supporting (lattice) tower, guyed tower and other similar structures.


Product Detail

Product Tags

Communication Angle Steel Tower

3 leg angle antenna communication 4 legged 60 degree angular self supporting steel lattice communication tower are made of , designed on a angular base pattern. The communication tower is optimized for medium to heavy loads which is used for standard cellular sites.
The towers can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices, obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer Specification.

Product Name 3 leg 60 degree angle antenna communication 4 legged angular self supporting steel lattice communication tower
Material 60 degree  Q235,Q345 usually
Design Standard AWS D 1.1; ASTM123, ANSI-TIA-222-H
Bolt Grade 6.8, 8.8
Basic Wind Speed 0-330km/h
Working and Rest Platform height and quantity up to clients
Antenna Load depends on clients
Steel Tube Tower Color customized
Galvanized hot dip galvanized. We have our own galvanization plant.

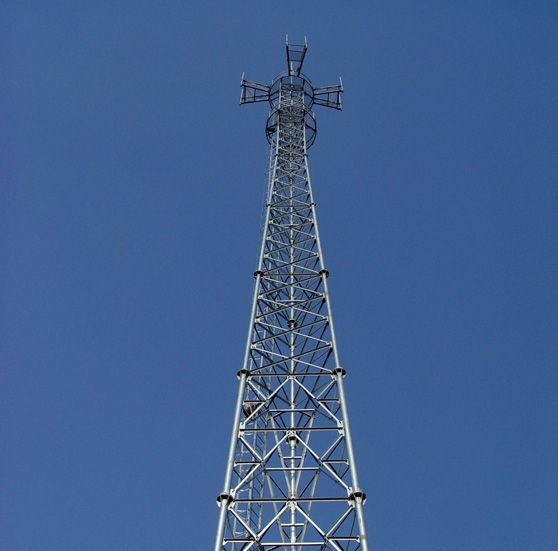

Usage of 3 Legged Tube Towers GSM/CDMA Equipment
Radars
Video Surveillance Equipment
Wind Turbine
Payment 30% deposit and 70% before shipment
Delivery Time usually 30 days after deposit received

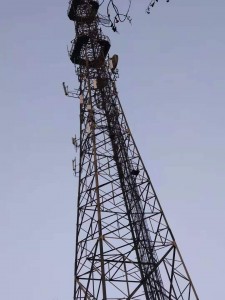

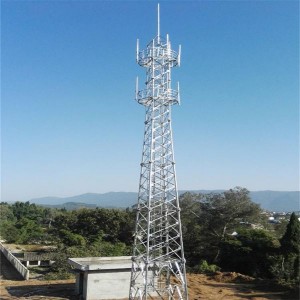

Angle Steel Tower 1
Angle Steel Tower 2

Communication Tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.

Pole’s height 5m to 40m,or customized.
Material Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
Hot rolled coil from ASTM A572 GR65, GR50, SS400
  Round conical; Octagonal tapered; Straight square; Tubular stepped;
Shape of pole Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Brackets/ Arm Single or double brackets/ arm are in the shape and dimension as per customers’ requires.
Length Within 14m once forming without slip joint
Wall thickness 3mm to 20mm
Welding It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,B/T13912-92 standard.
Jointing Jointing of pole with insert mode,inner flange mode,face to face joint mode.
Base plate mounted Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Ground mounted The length buried underground as per customers requirement.
Galvanizing Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.
Powder coating Pure polyester powder painting, color is optional according to
RAL Color stardand.
Wind Resistance Aganist wind pressure of 160Km/h
Manufacturing According to GB/T  1591-1994,GB/T3323—1989III;GB7000.1-7000.5-1996;GB-/T13912-92; ASTMD3359-83
tongxin
danguan5
单管

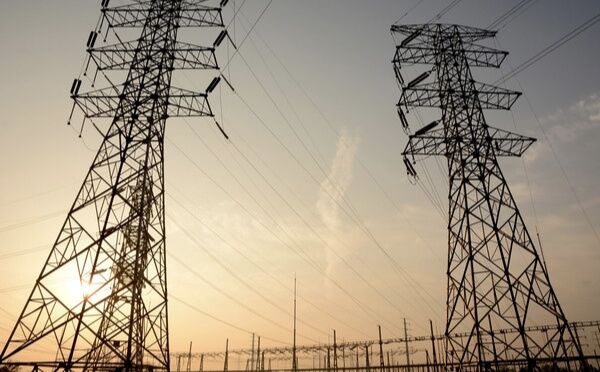

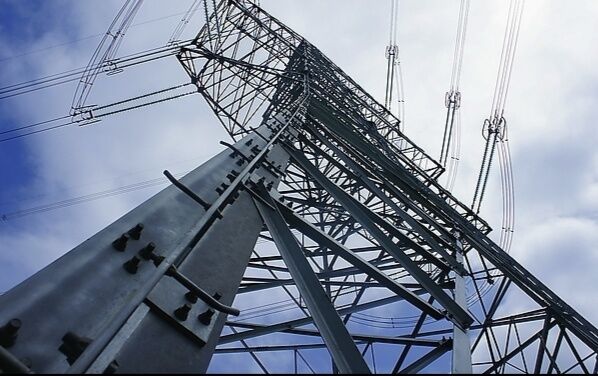

As China’s electricity demand continues to grow, the need for durable and reliable transmission infrastructure is even more urgent. Transmission towers are one of the most important components of any power transmission infrastructure. The galvanized transmission angle steel tower is a proud product of Tianjin Rainbow Steel Group, designed to provide the best support for high-voltage transmission lines.

The galvanized transmission angle steel tower is a communication tower that adopts hot-dip galvanized anti-corrosion treatment. It consists of a solid tower body, platform, lightning rod, ladder and antenna support system, all made of high-quality steel. It is mainly designed for microwave, ultrashort wave, wireless network signal transmission and transmission. With its uncompromising quality, the tower is able to meet the high demands of modern transmission networks.

Tianjin Rainbow Steel Group is committed to producing high-quality transmission towers that are durable, reliable and affordable. We take great pride in the fact that our galvanized power transmission angle steel towers are able to withstand any type of weather conditions. This product is ideal for use in harsh environmental conditions such as strong winds, heavy snow or heavy rain. Our towers are designed to serve as backbones for infrastructure development, providing safe and sustainable solutions for long-distance power transmission.

In conclusion, galvanized transmission angle steel towers are an important part of sustainable infrastructure development in China. It is durable and its uncompromising quality is a testament to the skill and expertise of Tianjin Rainbow Steel Group. With this product, we are committed to providing our customers with reliable, durable and affordable power transmission solutions. Contact us today to learn more about our product and how it can benefit your next power transmission project.
