Short Description:

According to different project topography and meteorological environment, we provide customer with solutions such as double pole solar solution, single poles solar solution, screw pile solar solution, combination of steel pole and embedded concrete, single pole of fishing complementary solution and PV agricultural greenhouse solution.


Whatsapp

Product Detail

Product Tags

Product Description:

 is made of galvanized steel strips by the method of cold-bending formed.The surface treatment are galvanized or bare. It has many advantages compared with traditional structural steel, such as light weight, excellent performance cross-section, high-strength and so on.

According to different project topography and meteorological environment, we provide customer with solutions such as double pole solar solution, single poles solar solution, screw pile solar solution, combination of steel pole and embedded concrete, single pole of fishing complementary solution and PV agricultural greenhouse solution.

Product Display:

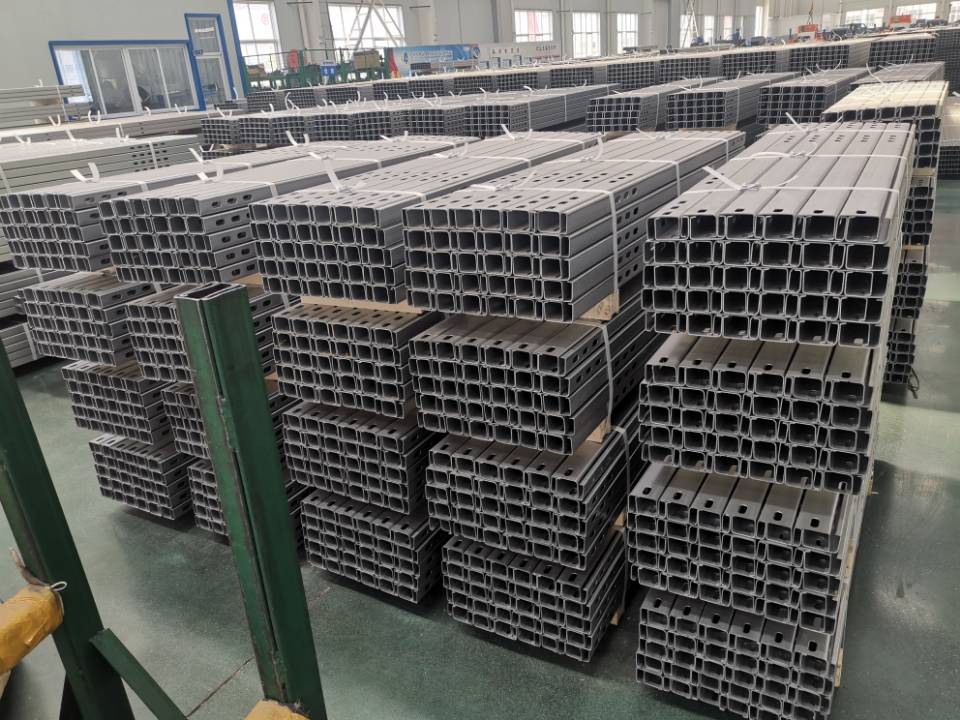

c channel solar tracker1

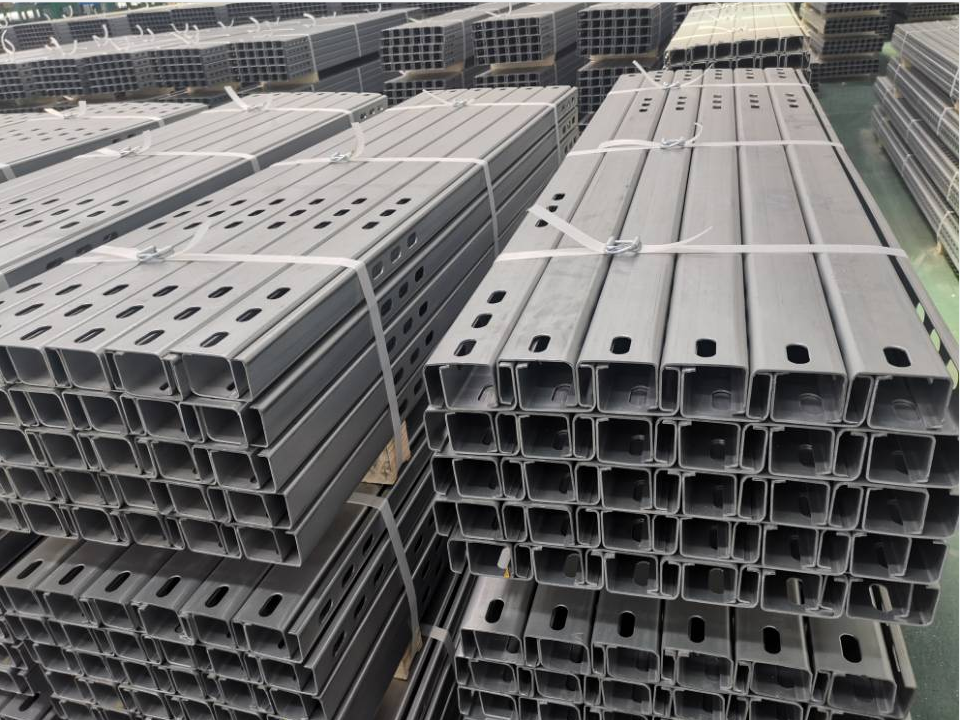

c channel solar tracker 2

Steel U/:

Item: Hot dip galvanized Cold Formed C/U Profile Ground Piles

Material: Q355,S355

Standard: GB/T1591

Surface: Hot dip galvanized according to ASTM A123, BS4687, GB/T13912

Specification: C80*80*15*3.0, C100*100*20*3.5, U150*80*4.0, U160*80*4.5

Product Specification:

No.
Size
Thickness
Type
Surface
Treatment
mm
Inch
Thickness
Gauge
A
21x10
13/16x13/32"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
B
21x21
13/16x13/16"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
C
41x21
1-5/8x13/16"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
D
41x22
1-5/8x7/8"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
E
41x25
1-5/8x1"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
F
41x41
1-5/8x1-5/8"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
G
41x62
1-5/8x2-7/16"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC
H
41x82
1-5/8x3-1/4"
0.8,1.0, 1.2,1.5,1.8,2.0,2.3,2.5
19,16,14,12
Slotted, Solid
HDG,PG,PC

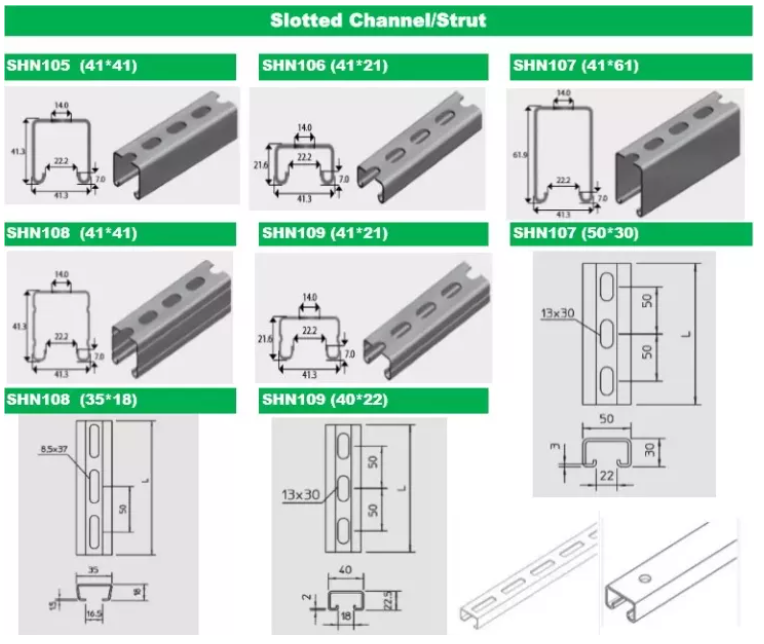

c channel specification 1

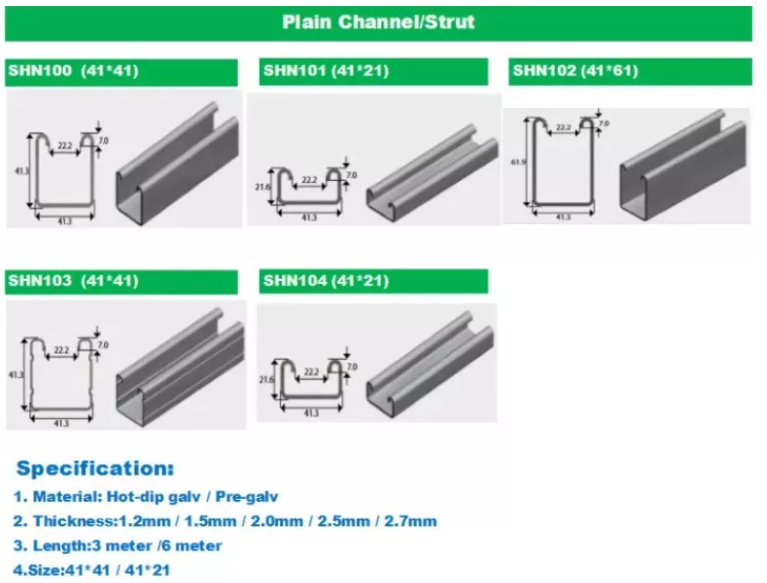

c channel specification 2

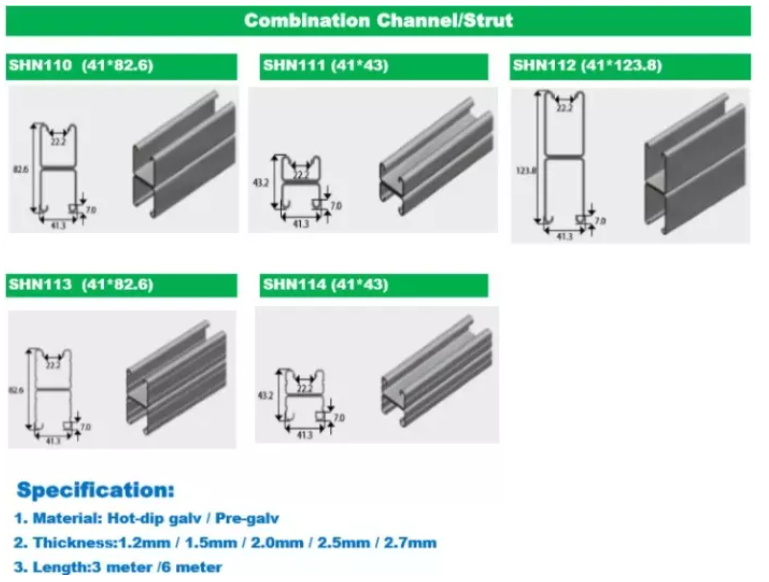

c channel specification 3

Product Applications:

solar mounting traker 5
solar mounting traker 7
solar mounting traker 6

Different  are deigned with different spindle steel tube, usually in square, circular, octagonal form. As an important part of trackers, the square, circular, octagonal spindle tube require high straightness and distortion. We strictly control the dimension accuracy and surface flatness of hot rolled coils from the material link, and then cut and twist the coils twice after the production of steel tube is completed. Straightening to ensure that our products fully meet the requirements of the drawings.

Introducing the perfect solution for all your C-steel needs - China Steel C-channels! Our C-shaped steel forming machines are specially designed for automatic processing of C-channels, ensuring a perfect forming process every time. Our machines are capable of handling various sizes of C-steel, ensuring high quality and efficient production of China cold-formed C-channels.

Our C-Steel is UL Listed and constructed from high-quality materials to ensure long-lasting, reliable performance. The C steel is galvanized for durability and resists rust and corrosion. This makes our Galvanized C Channels an ideal choice for those looking for a product that can withstand harsh environmental conditions.

Carbon steel is widely used in the construction industry as structural steel for purlins and wall beams, making it an integral part of any roof truss or bracket. In addition to architectural applications, C-steel is also used as columns, bridges and arms in mechanical light industrial manufacturing. This makes it a versatile product that can be used in a variety of industries.

Our C Steel products are designed for the perfect combination of strength and durability. The high-quality materials used in our products ensure maximum load-carrying capacity, making them ideal for high-stress applications. With our C-steel, you can be sure your structures will last.

At China Steel C Channel, we pride ourselves on providing our customers with the highest quality products and services. Our team of experts is dedicated to ensuring each customer receives the best possible product, and our C Steel Forming Machines are no exception.

So why wait? Make sure you get the best product for your needs today. Whether you need C-steel for construction or machinery and light industrial manufacturing, our China Steel C-channel steel is the perfect choice for you. Contact us today to learn more about our products and services!

FAQ:

1.What is C channel steel?

Channel steel is a conventional production component that is generally manufactured from hot-rolled steel.

2.What is C in steel design?

Channel is the common notation used in AISC Steel Construction manual for this type of section This section is mostly used for uniformly distributed load applications with small moment/bending.

3.What is the difference between C channel and I-beam?

The C-beam maintains strength tolerances at a lower gauge than the I-beam, which results in thinner, lighter components. If you've never worked with C-beam profiles before, keep reading. We'll take you through the basics so you can determine whether it is the right choice for your design needs.
