China Factory Size Customized Hot-Dip Galvanized T-Bars Lintel for Construction

Short Description:

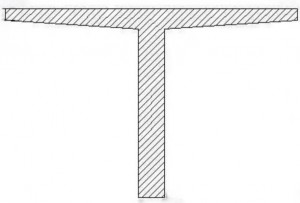

T Bar Lintel

T bar lintel T-beam, with unique T-section design, provides efficient support and stability for all kinds of engineering structures, and is an ideal choice for construction, bridge, machinery manufacturing and other fields. Strictly follow the high standard production process, from raw material screening, cutting, molding to welding, surface treatment and other processes are strictly tested to ensure reliable product quality.

FOB Price: US $500-800/ Ton

Min.Order Quantity: 20 Tons

Supply Ability: 20000 Tons per Month

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

Product Name	STRUCTUAL GALVANIZED STEEL T SHAPED T BEAM BAR
Size	15061506mm-4002040020mm or as customers’ request
Material	G250,G300,G350,SS400,A36, Q235B, Q345B,S235jr,S355jr
Standard	AS/NZS 1554.5:2004,ASTM, ANSI, GB, DIN, JIS, EN, ISO
Surface Treatment	Hot Dipped Galvanized 600g/m2 or Prime Painting
Welding	One Continuous Weld Full Length
Straightness	+/-2mm
Camber & Sweep	+/-2mm
Flatness	+/-2mm
Cutting Length	L/C,T/T,D/A,D/P,WEST UNION
Certification	SGS/ISO/CE/CCC/NEMA

Product Specification

Section	Size	Kg/m	Length(mm)
T Bar	2006200*6	18.84	900-6000
T Bar	2008200*6	22	900-6000
T Bar	25010200*6	29.04	900-6000
T Bar	18010150*10	25.9	900-9000
T Bar	18010200*10	29.83	900-9000
T Bar	18010250*10	33.75	900-9000
T Bar	20010150*10	27.47	900-9000
T Bar	20010200*10	31.4	900-9000
T Bar	25010200*10	35.33	900-9000
T Bar	25012200*10	39.25	900-9000

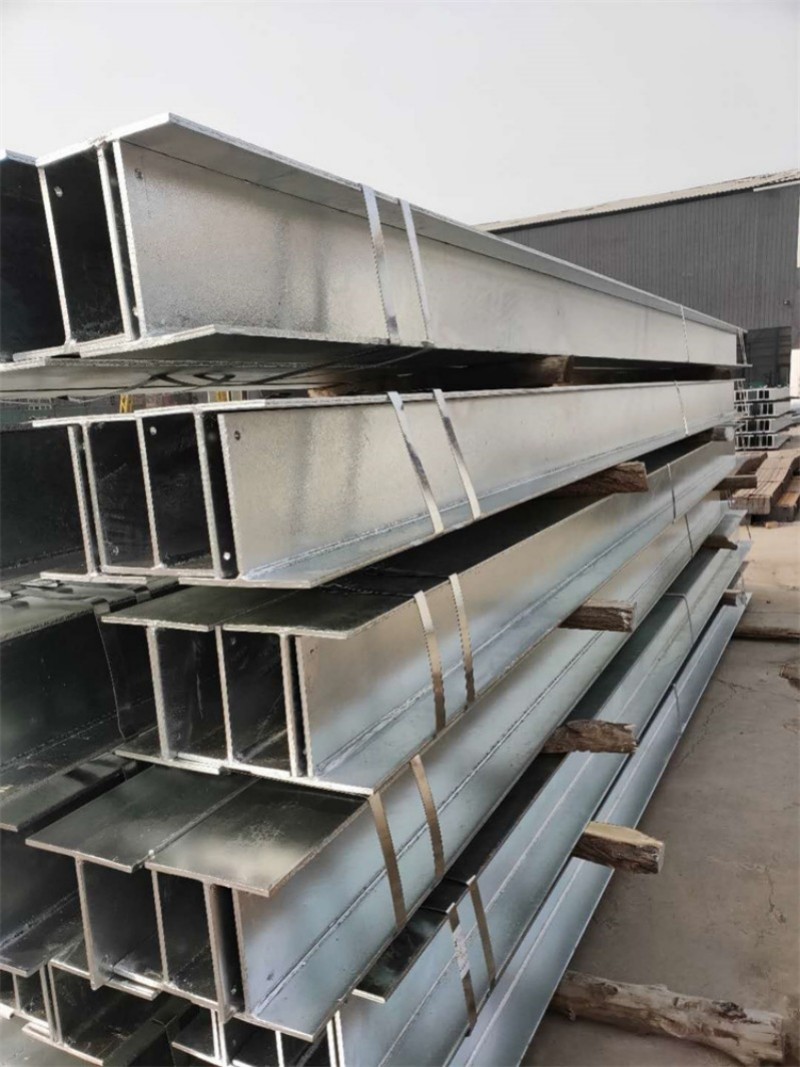

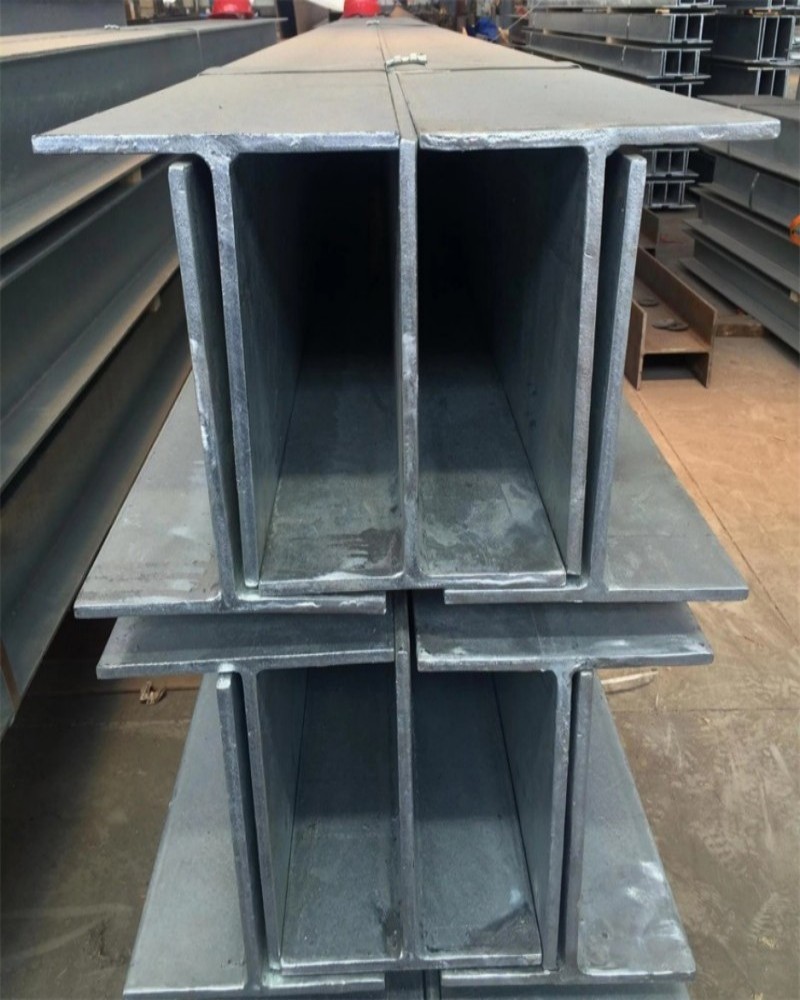

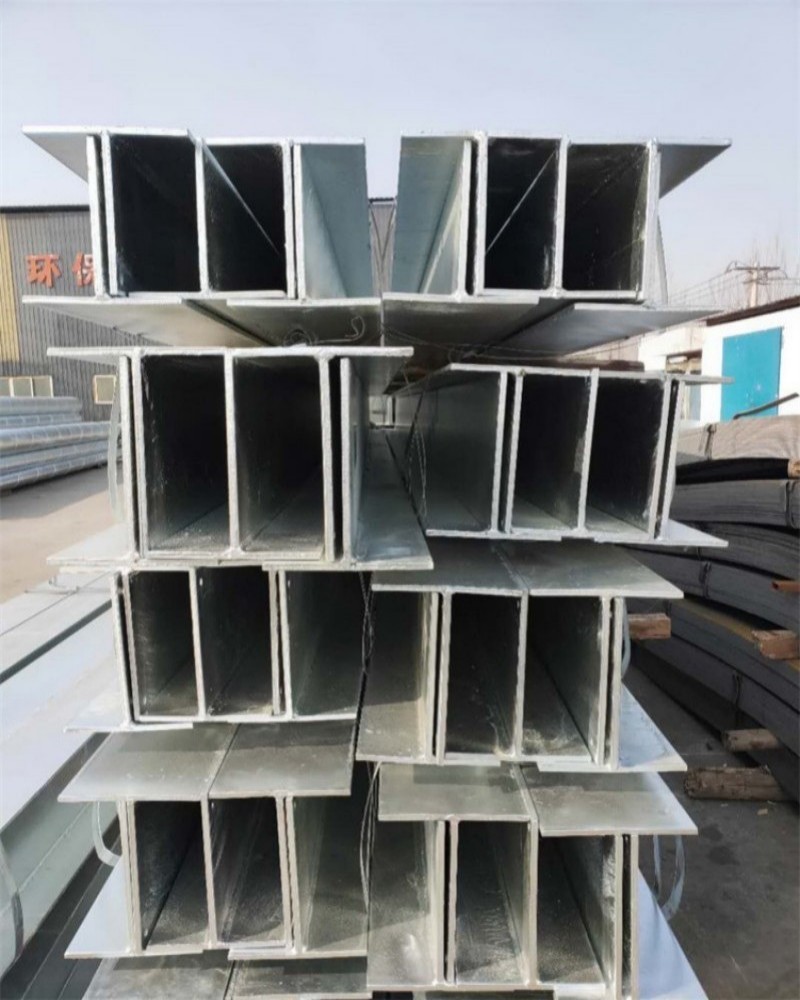

Product Display

PRODUCT FEATURE

- High strength and stability: Made of high-quality steel, processed by advanced technology, dense internal organization, high yield strength and tensile strength, can withstand huge loads to ensure stable structure.

- Reasonable mechanical properties: the cross section shape makes the force distribution uniform, and has high bending, shear and torsional strength, effectively improving the stability and safety of the structure.

- Good processing performance: can be easily cut, bend, punch, welding and other processing, to meet the diverse needs of different projects and complex design.

– Lightweight design: Compared with some traditional structural materials, it can reduce its own weight while ensuring strength, facilitate transportation and installation, and reduce engineering costs.
