Chinese wholesale China Manufacturer Unistrut Slotted U Channel

Chinese wholesale China Manufacturer Unistrut Slotted U Channel Featured Image
  • Chinese wholesale China Manufacturer Unistrut Slotted U Channel
  • Chinese wholesale China Manufacturer Unistrut Slotted U Channel
  • Chinese wholesale China Manufacturer Unistrut Slotted U Channel
  • Chinese wholesale China Manufacturer Unistrut Slotted U Channel

Short Description:

Product Description:Each individual member from our large performance revenue crew values customers’ requirements and organization communication for Chinese wholesale China Manufacturer Unistrut Slotted U Channel, All merchandise are manufactured with advanced equipment and strict QC pr...


  • FOB Price: US $500-800/ Ton
  • Min.Order Quantity: 20 Tons
  • Supply Ability: 20000 Tons per Month
    • Whatsapp

    Product Detail

    Product Tags

    Product Description:

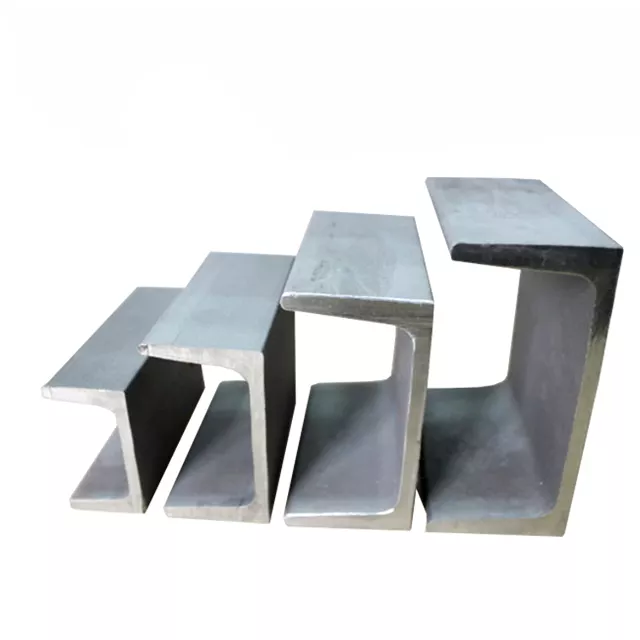

    U channel steel

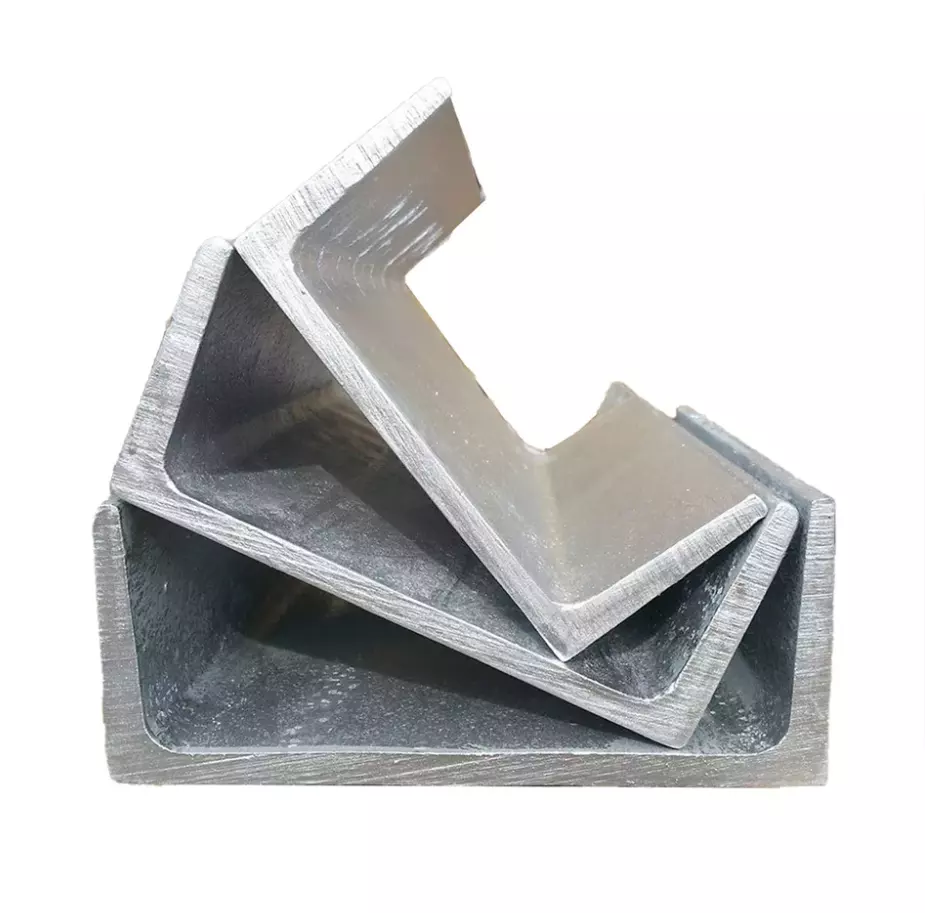

    U channel steel 1

    Each individual member from our large performance revenue crew values customers' requirements and organization communication for Chinese wholesale China Manufacturer Unistrut Slotted U Channel, All merchandise are manufactured with advanced equipment and strict QC procedures in purchase to assure high-quality. Welcome prospects new and old to get hold of us for enterprise cooperation.
    Each individual member from our large performance revenue crew values customers' requirements and organization communication for China Channel Bar, U Beam, With the superior and exceptional service, we've been well developed along with our customers. Expertise and know-how ensure that we are always enjoying the trust from our customers in our business activities. "Quality", "honesty" and "service" is our principle. Our loyalty and commitments remain respectfully at your service. Contact Us Today For further information, contact us now.

    Thickness 4.5mm-17mm
    Item type steel U channel
    Length 6m, 9m, 12m or any length as your requirement
    Material Q195,Q215,Q235B,Q345B,
    S235JR/S235/S355JR/S355
    SS440/SM400A/SM400B
    Technique Hot Rolled
    Application 1.Industrial structure of the steel structure bearing??bracket
    2.Underground engineering steel pile and retaining structure
    3. Industrial equipment structure
    5.Ships, machinery manufacturing frame structure
    6.The train, automobile, tractor beam bracket
    7.Port of conveyor belt, high speed damper bracket
    Surface treatment Galvanized, coated or custom
    Grade Mild steel carbon steel stainless steel
    MOQ 10 ton
    Logo custom

    Product Specification:

    Size Specification(mm) Theory Weight
    (kg/m)
    h b d
    5# 50 37 4.5 5.438
    6.3# 63 40 4.8 6.634
    8# 80 43 5 8.045
    10# 100 48 5.3 10.007
    12# 120 53 5.5 12.059
    12.6 126 53 5.5 12.319
    14#a 140 58 6 14.535
    14#b 140 60 8 16.733
    16#a 160 63 6.5 17.24
    16#b 160 65 8.5 19.752
    18#a 180 68 7 20.174
    18#b 180 70 9 23
    20#a 200 73 7 22.637
    20#b 200 75 9 25.777
    22#a 220 77 7 24.999
    22#b 220 79 9 28.453
    25#a 250 78 7 27.41
    25#b 250 80 9 31.335
    28#a 280 82 7.5 31.427
    28#b 280 84 9.5 35.832
    30#a 300 85 7.5 34.463
    30#b 300 87 9.5 39.173
    32#a 320 88 8 38.083
    32#b 320 90 10 43.107
    36#a 360 96 9 47.814
    36#b 360 98 11 53.466
    40#a 400 100 10 58.928
    40#b 400 102 12.5 65.208

    Inspection:

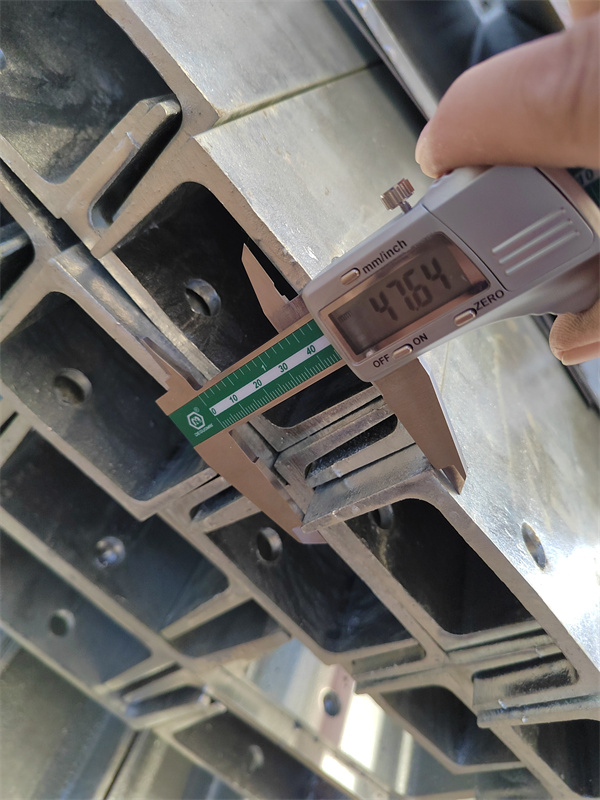

    U channel steel 3

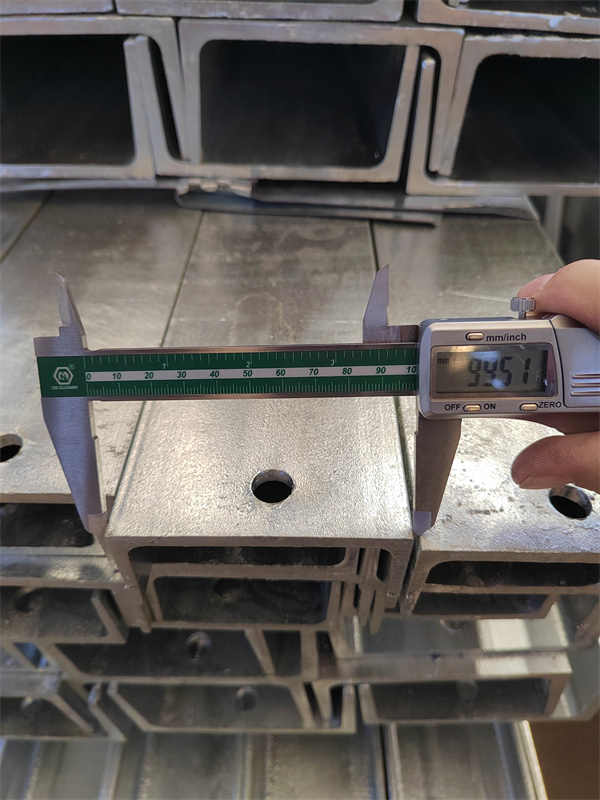

    U channel steel 2

    Features:

    1: If bear the same press, then the U Beam can save 10%-15% material.

    2: You can have more designs of the rooms if you use U Beam than concrete.

    3: U Beam is light than the concrete, so it is easy to carry and cut the cost.

    4: The U Beam is environmentally friendly and reduce the Nuisance dust

    5: The U Beam can save the real working time, because it is easy to carry and can be used in any weather.

    Application:

    1)Used for beams, bridges, transmission towers, etc.

    2)For engineering construction

    3)For steel structure engineering

    4)For automotive parts manufacturing

    5)Container frame

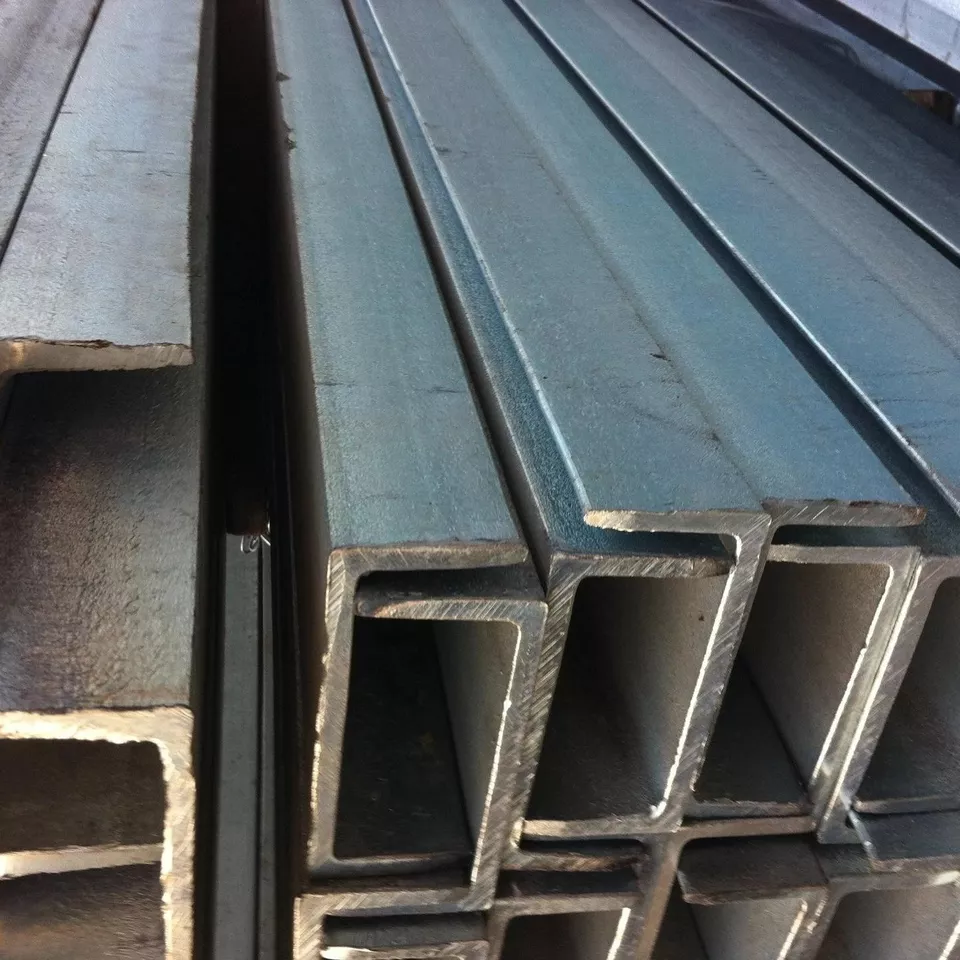

    U channel steel 4

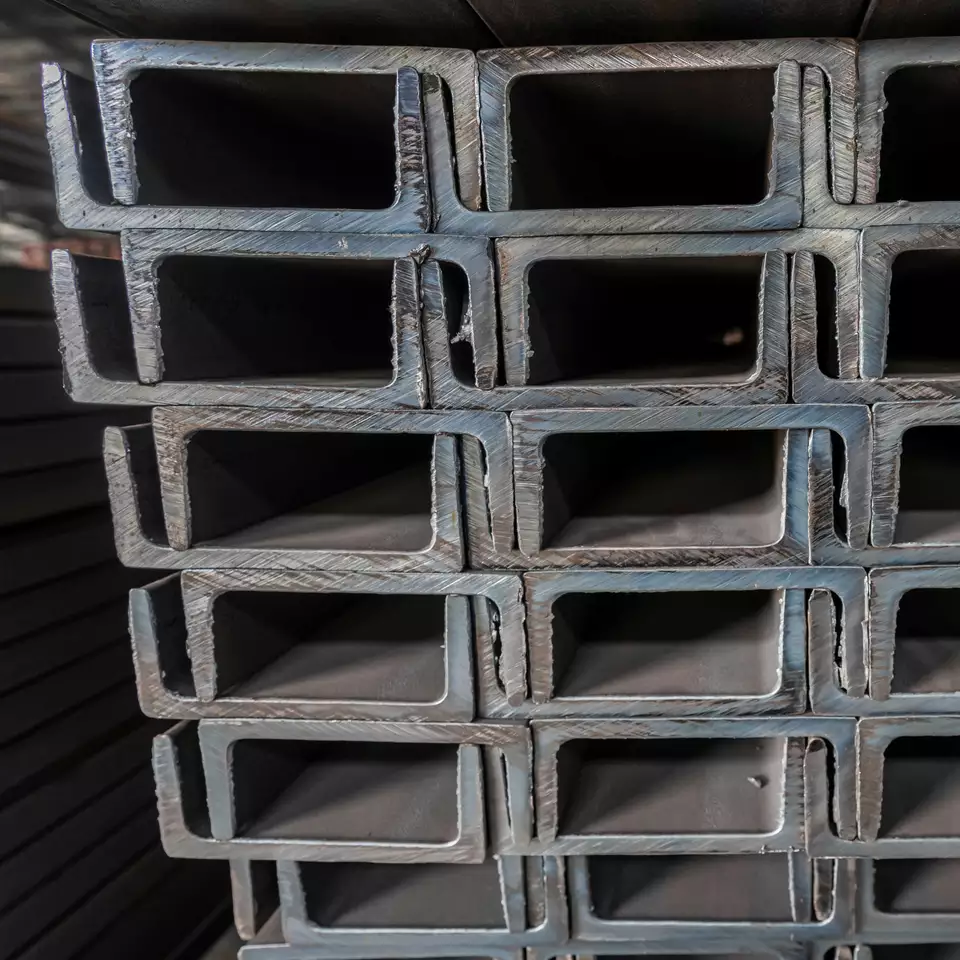

    U channel steel 5

    Introducing the newest addition to our range of premium steel products - Formed Steel U-Channels! This innovative U-shaped steel, also known as U-channel steel, is named after the cross-section of the English letter "U" of steel. With its unique shape resembling the Japanese letter "ひ", the product is designed to provide maximum efficiency and stability, making it ideal for a variety of applications in the construction and manufacturing industries.

    Manufactured from high-quality carbon steel, our U-Channels are ideal for a variety of heavy-duty applications such as building framing, support structures, and more. These structural elements provide high pressure support and long-lasting durability, ensuring stable and reliable support for your projects. Our U-channels are rigorously tested to ensure deformation resistance and durability that exceed industry standards, so you can be confident that your project is using the best available materials.

    Our carbon steel U-channels offer several advantages, including ease of installation. This functionality can be easily integrated into any architectural or industrial environment, even if you have limited experience in the field. Plus, our U-channels can be manipulated and adjusted to your project requirements, making them a versatile and convenient choice for a variety of applications.

    In addition to convenience, carbon steel U-channels offer superior performance that exceeds industry standards. It has a long support time, which ensures that your project maintains stability and structure for an extended period of time, saving you time and money in the long run. Therefore, if you want to ensure that your project is stable and reliable, our formed steel U-channels are the first choice.

    All in all, our carbon steel U-channels are an excellent addition to construction and manufacturing. Its structural integrity, durability, and ease of installation make it the first choice for a variety of heavy-duty applications. Shaped to provide maximum stability and efficiency, our U-channels are an excellent investment in ensuring the success of your project. We guarantee that with our U-channels, you can overcome project challenges and achieve your construction goals, even in the most challenging environments.
