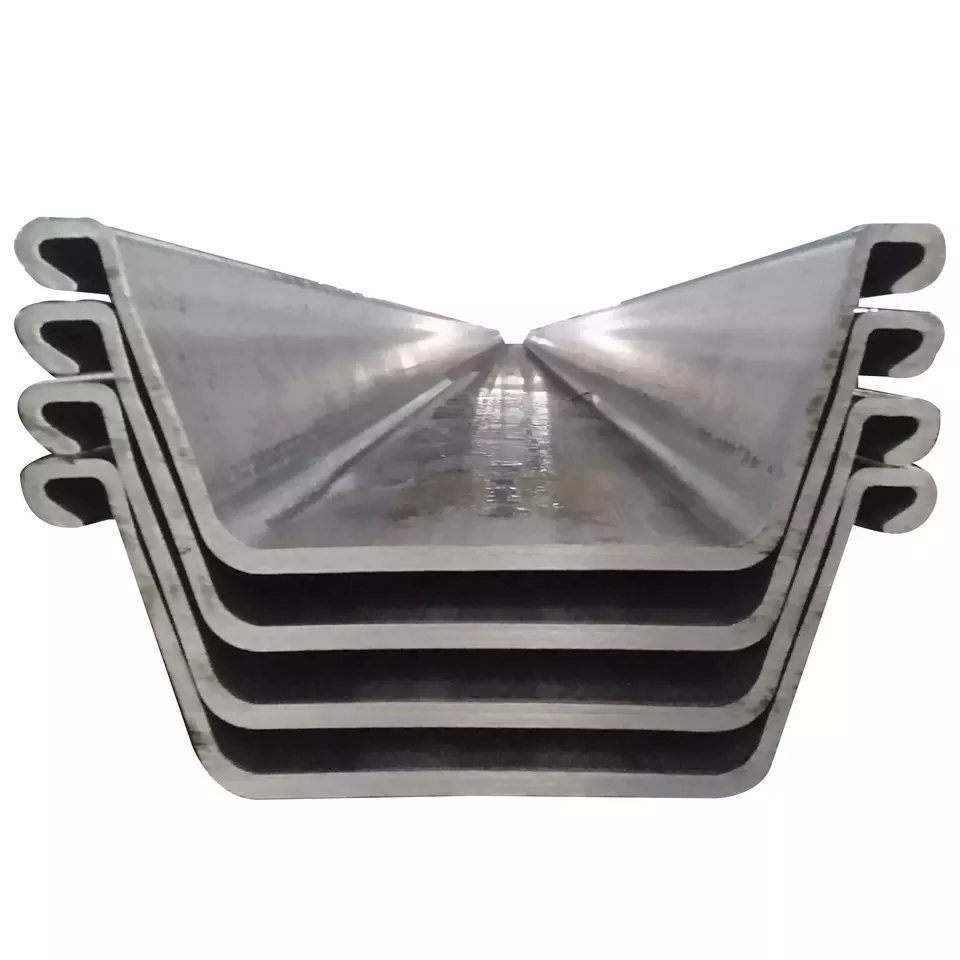

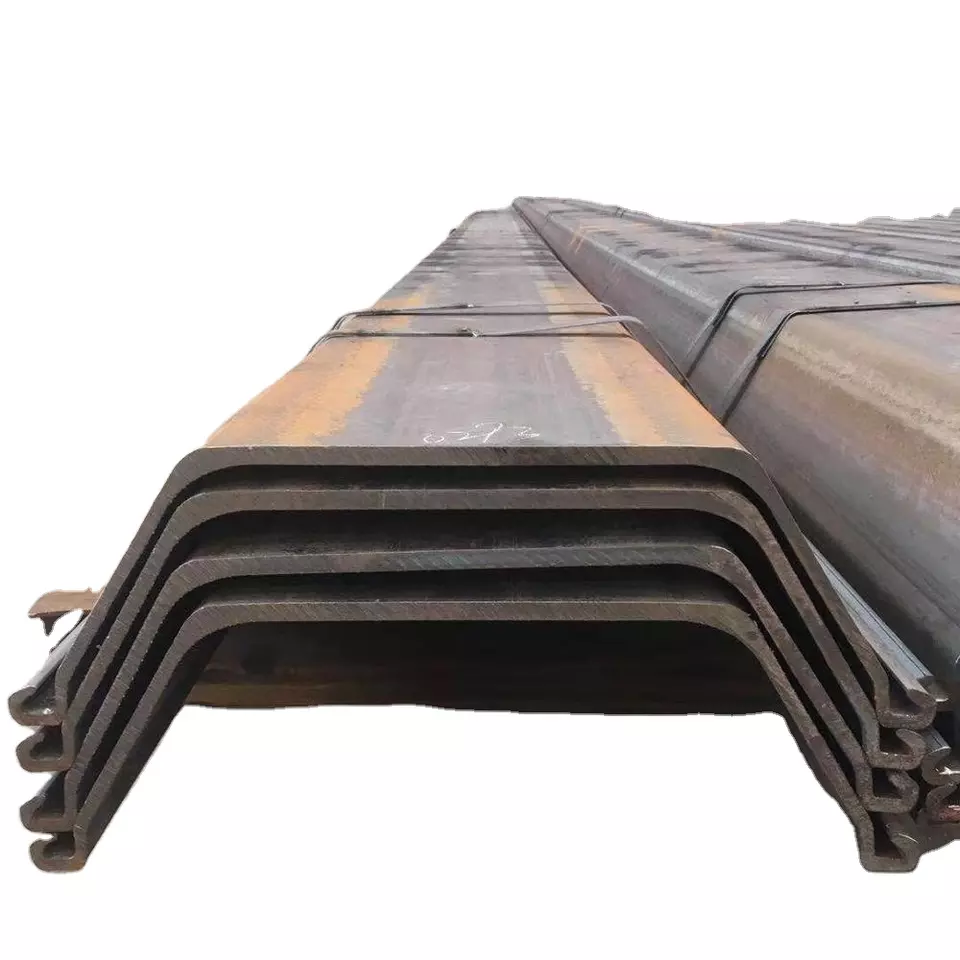

Cold Rolled Structural Steel Sheet Pile
STEEL SHEET PILE |
|||||||
SIZE ?(W*H) |
Width (mm) |
Height (mm) |
WEB THICKNESS (mm) |
PER PIECE |
PER METER |
||
Sectional Are (cm2) |
Theoretical Weight (kg/m) |
Sectional Are(cm2) |
Theoretical Weight (kg/m2) |
||||
400*100 |
400 |
100 |
10.5 |
61.18 |
48.0 |
153.0 |
120.1 |
400*125 |
400 |
120 |
13.0 |
76.42 |
60.0 |
191.0 |
149.9 |
400*150 |
400 |
150 |
13.1 |
74.4 |
58.4 |
186.0 |
146.0 |
400*170 |
400 |
170 |
15.5 |
96.99 |
76.1 |
242.5 |
190.4 |
500*200 |
500 |
200 |
24.3 |
133.8 |
105 |
267.6 |
210.0 |
500*225 |
500 |
225 |
27.6 |
153 |
120 |
306.0 |
240.2 |
600*130 |
600 |
130 |
10.3 |
78.7 |
61.8 |
131.2 |
103.0 |
600*180 |
600 |
180 |
13.4 |
103.9 |
81.6 |
173.2 |
136.0 |
600*210 |
600 |
210 |
18.0 |
135.3 |
106.2 |
225.5 |
177.0 |
750 |
204 |
10 |
99.2 |
77.9 |
132 |
103.8 |
|
700*205 |
750 |
205.5 |
11.5 |
109.9 |
86.3 |
147 |
115.0 |
750 |
206 |
12 |
113.4 |
89 |
151 |
118.7 |
Structural Steel Sheet Pile has a wide range of applications, listed as follows;
(1) River bank protection and flood control. Steel sheet pile is usually used in river revetment, ship lock, lock structure and flood control, its advantage is easy to water construction; Long service life.
(2) water catching station. Steel sheet piles, which used to be used as temporary supports for pumping stations, can also be used for permanent structures, greatly reducing construction time and costs. Pumping stations tend to be rectangular structures, but from the existing open structures, circular will be the future development trend.
(3) Bridge pier. The use of steel sheet piles is most economical when the pile is under load or when the construction speed is required. It can play the role of both foundation and pier, and can operate in one direction, taking up little time and space.
(4) Road widening retaining wall. The key of road widening construction is land occupation and construction speed, especially in the case of borrowing other lanes, steel sheet pile can meet the above requirements, without soil excavation and clearing.
