Concrete Forms Wall Tie Snap Tie With Plastic Cone

Short Description:

Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1″ breakback. Each Tie incorporates an anti-turn device in order to properly break after use.Long End, Short End, and Odd End Snap Ties for plywood forming. Available with 1″ x 1″ cones (plastic),  washers (metal) and water resistant seal options.


  • Product name: Snap Tie
  • Material: Q235 Steel
  • Accessories: Snap Tie/Wedge/A Bracket
  • Surface: black
  • Keywords: form tie system
  • Product Detail

    Product Tags

    company philosophy

    Product Description

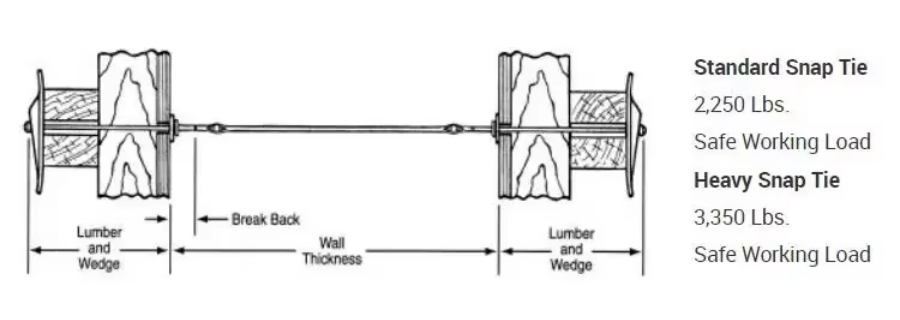

    Snap Tie015

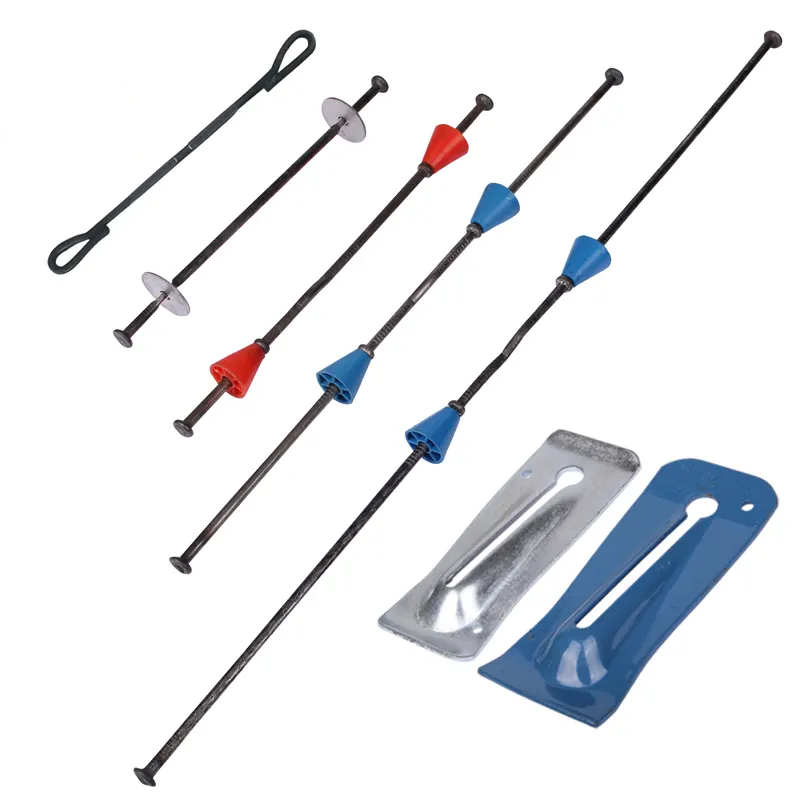

    Snap Tie001
    Snap Tie004
    Snap Tie006

    Introducing Our Premium Concrete Snap Ties: The Ultimate Solution for Forming Systems

    Elevate your construction projects with our high-quality Concrete Snap Ties, expertly designed to streamline your lumber forming systems. Manufactured with integral heads and available in both Metal and Plastic Form Spreaders, our Snap Ties are engineered for durability and ease of use. With a nominal 1" breakback, these ties ensure a secure fit while providing the flexibility needed for various applications.

    Our Concrete Snap Ties come equipped with an innovative anti-turn device, guaranteeing proper breakage after use. This feature not only enhances safety but also simplifies the removal process, making your workflow more efficient. Whether you need Long End, Short End, or Odd End Snap Ties for plywood forming, we have you covered. Each tie is available with 1" x 1" cones (plastic), metal washers, and water-resistant seal options, ensuring versatility for any project.

    The snap tie wedge, crafted from high-strength galvanized steel, serves as a reliable holding device in double waler or double strong back snap tie forming applications. This component is crucial for ensuring proper load distribution when installed correctly, providing peace of mind during the construction process.

    Our Concrete Snap Ties are not just functional; they are designed to meet the rigorous demands of modern construction. Whether you're working with round wall ties or brick wall ties, our products deliver the performance and reliability you need.

    Choose our Concrete Snap Ties for your next project and experience the difference in quality and efficiency. With our commitment to excellence, you can trust that our products will help you achieve superior results in your concrete forming applications. Upgrade your construction toolkit today!

    Product Specification

    Size Weight(KG) Packing
    6" 0.093 100pcs/Carton
    8" 0.103 100pcs/Carton
    10" 0.113 100pcs/Carton
    12" 0.123 100pcs/Carton
    14" 0.133 100pcs/Carton
    16“ 0.143 100pcs/Carton
    18” 0.153 100pcs/Carton
    24“ 0.183 100pcs/Carton

     4-3/4":  6"-24" short end

    Size Weight(KG) Packing
    6" 0.128 100pcs/Carton
    8" 0.138 100pcs/Carton
    10" 0.148 100pcs/Carton
    12" 0.158 100pcs/Carton
    14" 0.168 100pcs/Carton
    16“ 0.178 100pcs/Carton
    18” 0.188 100pcs/Carton
    24“ 0.218 100pcs/Carton



    Applications

    Metal U Clip013
    Metal U Clip011
    Metal U Clip010
    Metal U Clip013

    Product Display

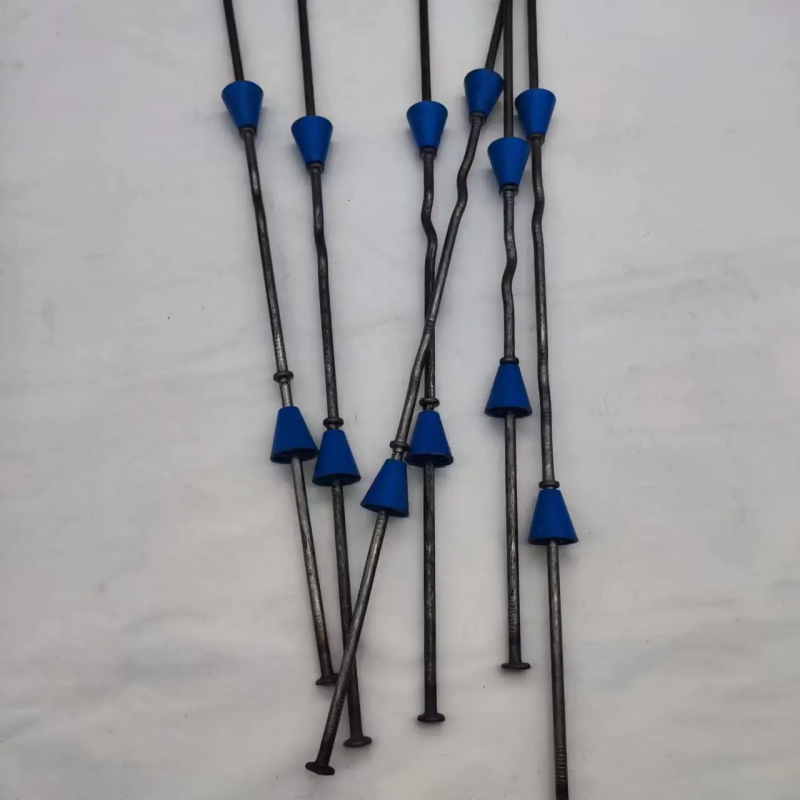

    Snap Tie019

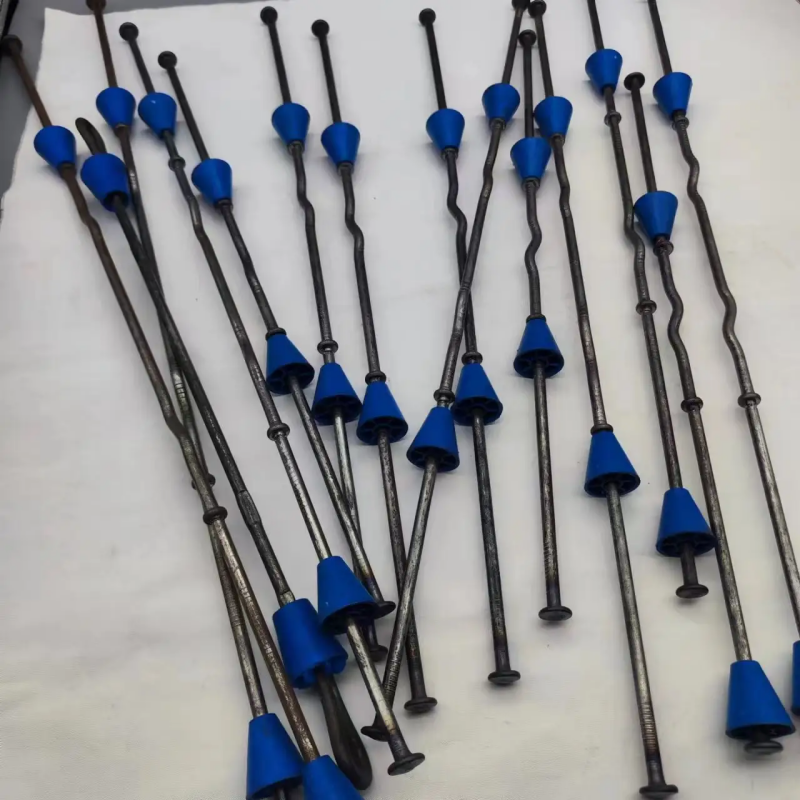

    Snap Tie020

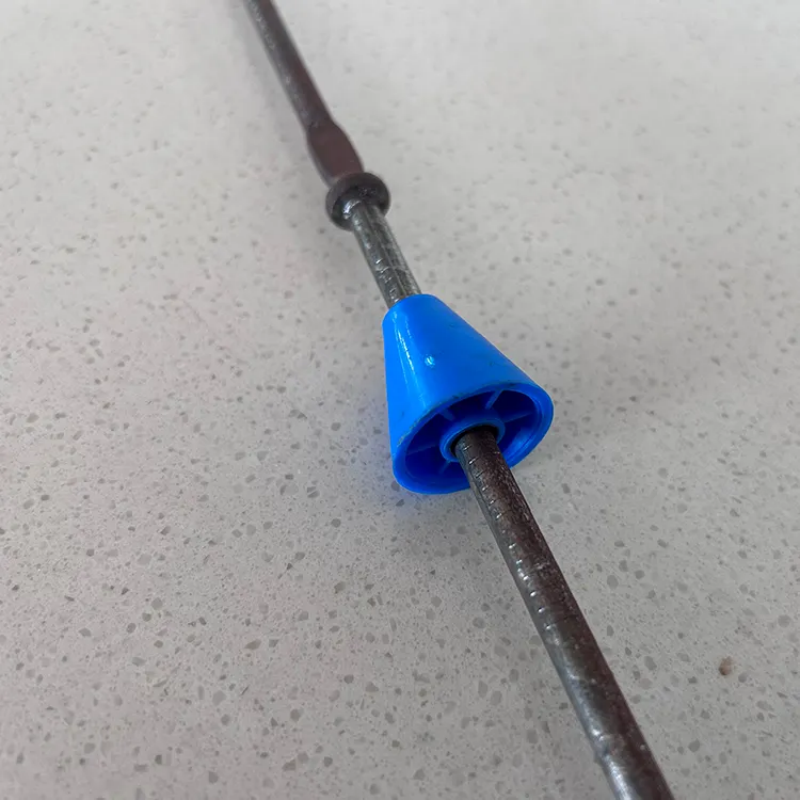

    Snap Tie018
    Snap Tie022

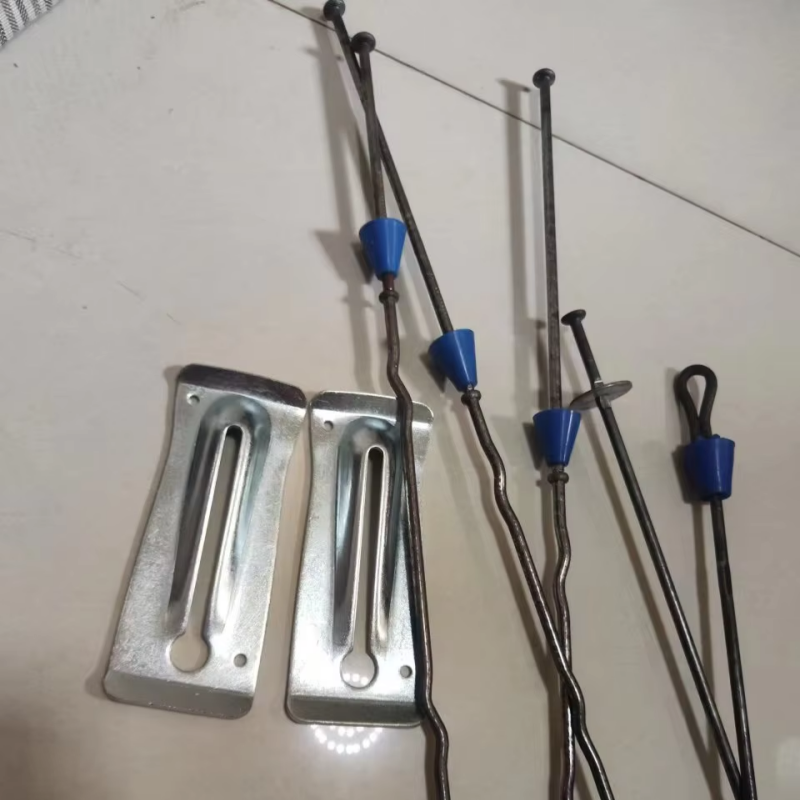

    Snap Tie023

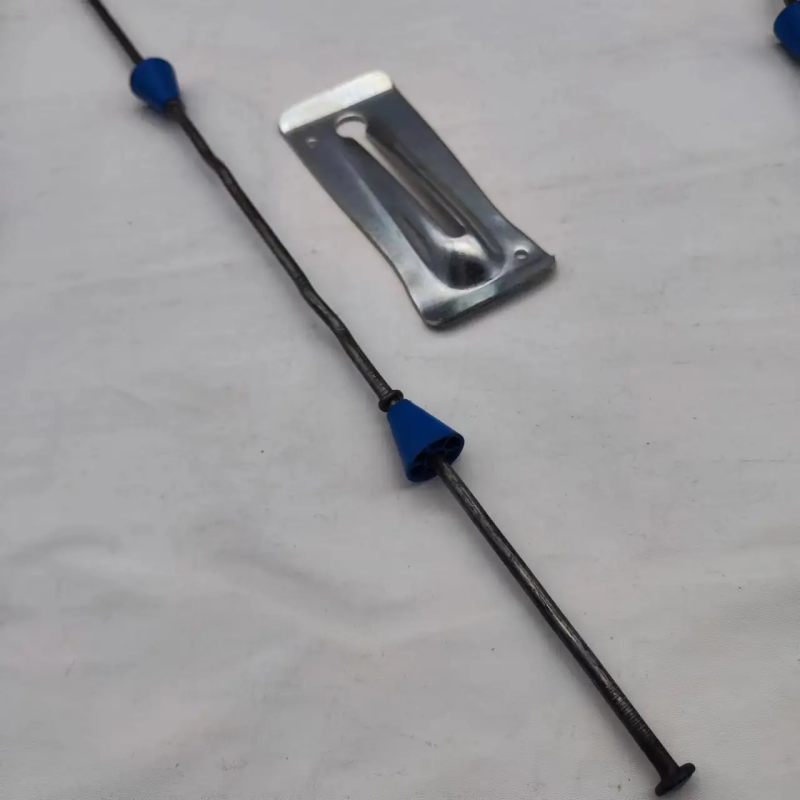

    Snap Tie021

    Snap Ties are used to vertically form concrete walls that can have a wide variety of widths and heights. There are various systems you can use to create the form system you require depending on your needs. Snap ties make the installation of concrete formwork and the subsequent removal extremely easy and efficient.

    Packing and loading

    Snap Tie024
    Snap Tie007

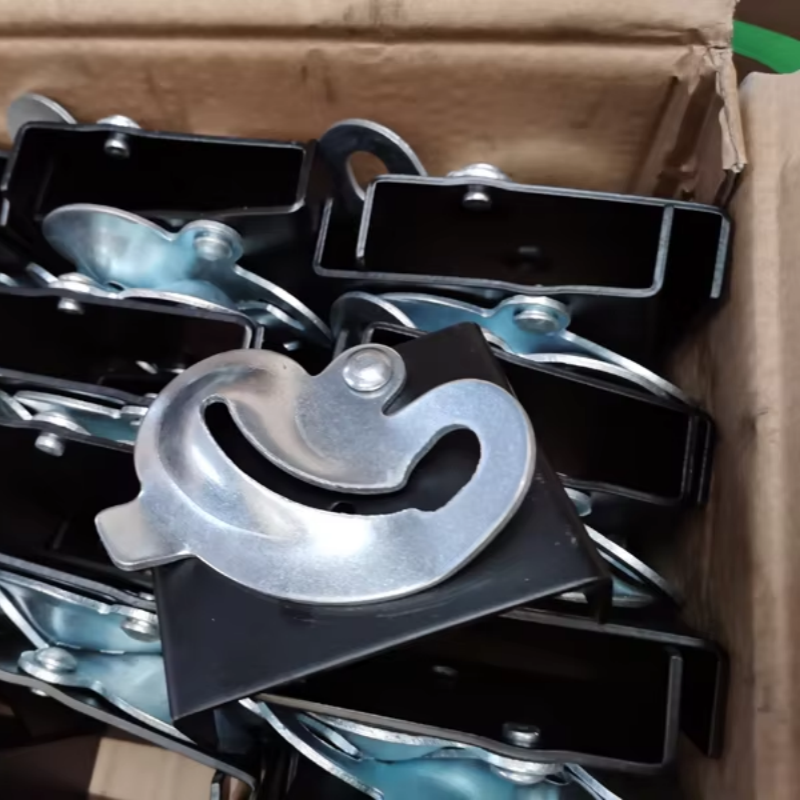

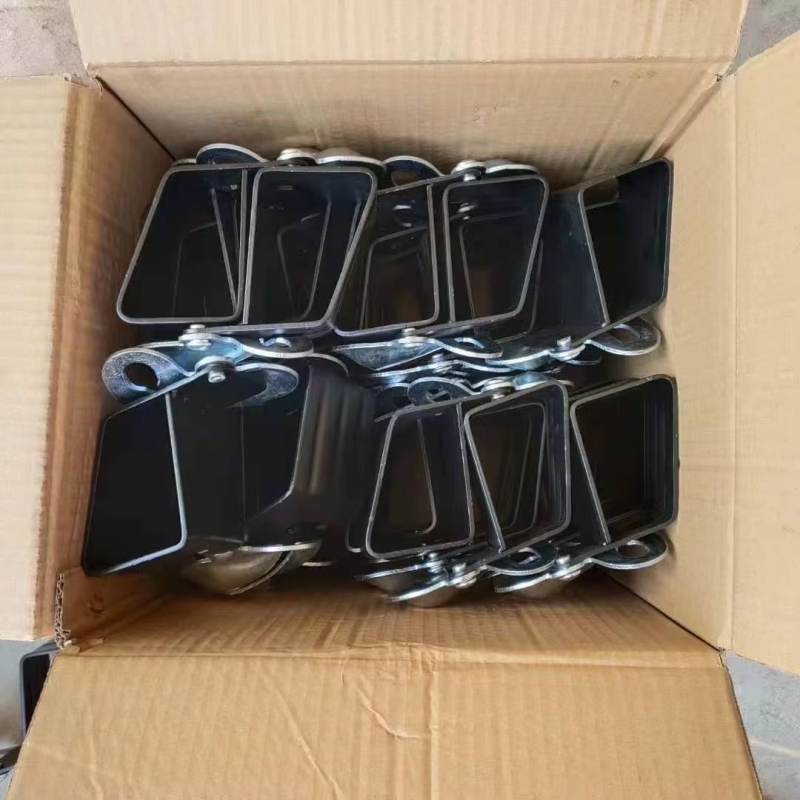

    Snap Tie011
    Snap Tie012

    Our Workshop

    spring clamp020

    Company Profile

    formwork-clamp030
    formwork-clamp029
    formwork clamp026

    FAQ

    1. who are we?
    We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Steel Angle, Steel H Beam, Steel Props, Scaffoldings, Scaffolding Accessories, Formwork Accessories,
    4. why should you buy from us not from other suppliers?
    High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards
    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
