Construction Concrete Metal formwork Panel Adjustable Steel Beam
Introducing our premium Steel Formwork System, the ultimate solution for heavy civil construction projects. Designed to provide a robust and reliable temporary structure frame for concrete pouring, our steel formwork is engineered to meet the highest industry standards. Whether you are working on concrete formwork slabs, walls, or columns, our high-quality steel formwork and accessories are your one-stop solution for all your construction needs.
Our steel formwork panels are crafted from top-grade materials, utilizing China National Standard Q235 Steel or Japan Standard SS400 Steel. This ensures durability and strength, allowing you to achieve flawless concrete finishes every time. The modular design of our formwork boards allows for versatility and adaptability on-site. With various standard sizes available, including 200*1200mm, 250*1200mm, 300*1200mm, 400*1200mm, 600*1200mm, and larger options like 200*1800mm, 300*1800mm, and 600*1800mm, you can easily customize your formwork system to fit the specific requirements of your building structure.
Our metal formwork for concrete is not only easy to assemble but also designed for efficient use, minimizing waste and maximizing productivity. Each component is meticulously crafted to ensure a perfect fit, allowing for seamless integration into your construction workflow.
With our Steel Formwork System, you can expect exceptional quality, reliability, and performance. Elevate your construction projects with our comprehensive range of concrete formwork solutions, and experience the difference that high-quality materials and innovative design can make. Choose our steel formwork for your next project and build with confidence!
|
Flat Form Parameters
|
|||
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Thickness
|
|
1800
|
200 |
55 |
3 |
|
1500
|
|||
|
1200
|
|||
|
750
|
|||
|
600
|
|||
|
1800
|
300 |
55 |
3 |
|
1500
|
|||
|
1200
|
|||
|
750
|
|||
|
600
|
|||
|
1800
|
150 |
55 |
3 |
|
1500
|
|||
|
1200
|
|||
|
900
|
|||
|
600
|
|||
|
1800
|
125 |
55 |
3 |
|
1500
|
|||
|
900
|
|||
|
750
|
|||
|
600
|
|||
|
1800
|
100 |
55 |
3 |
|
1500
|
|||
|
1200
|
|||
|
750
|
|||
|
600
|
|||

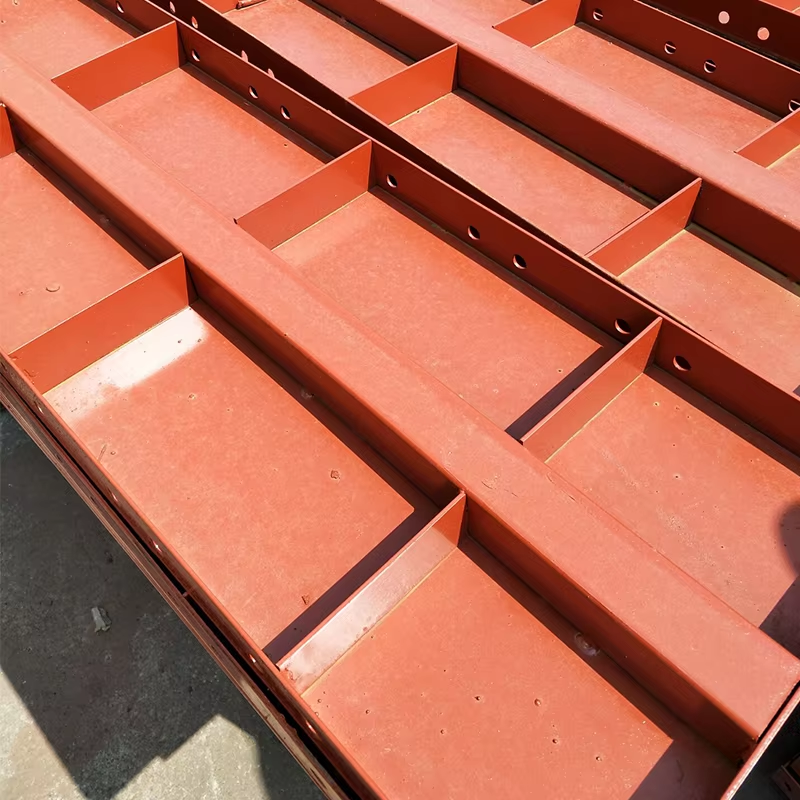

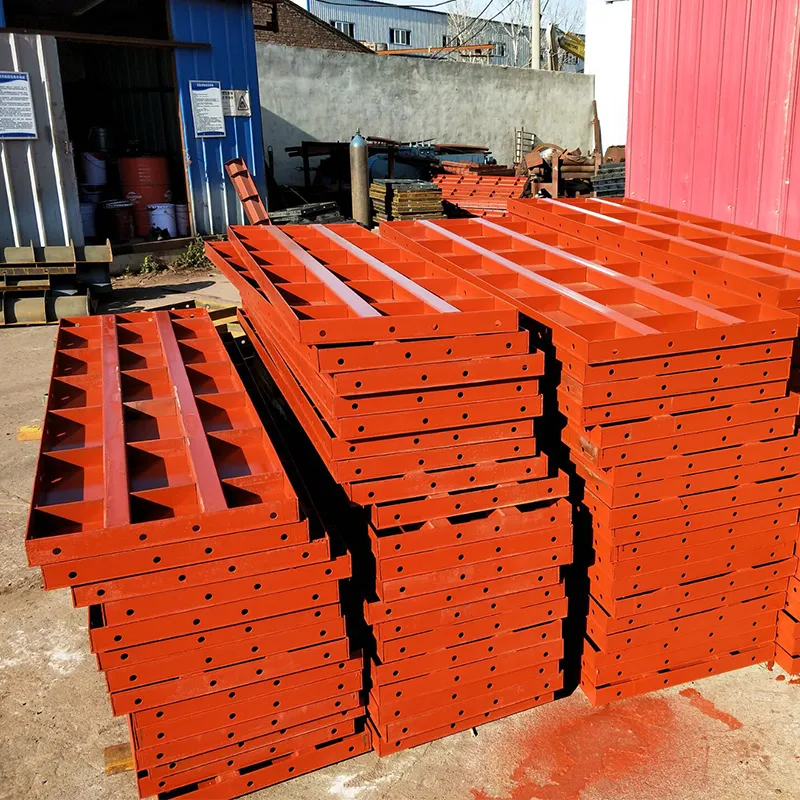

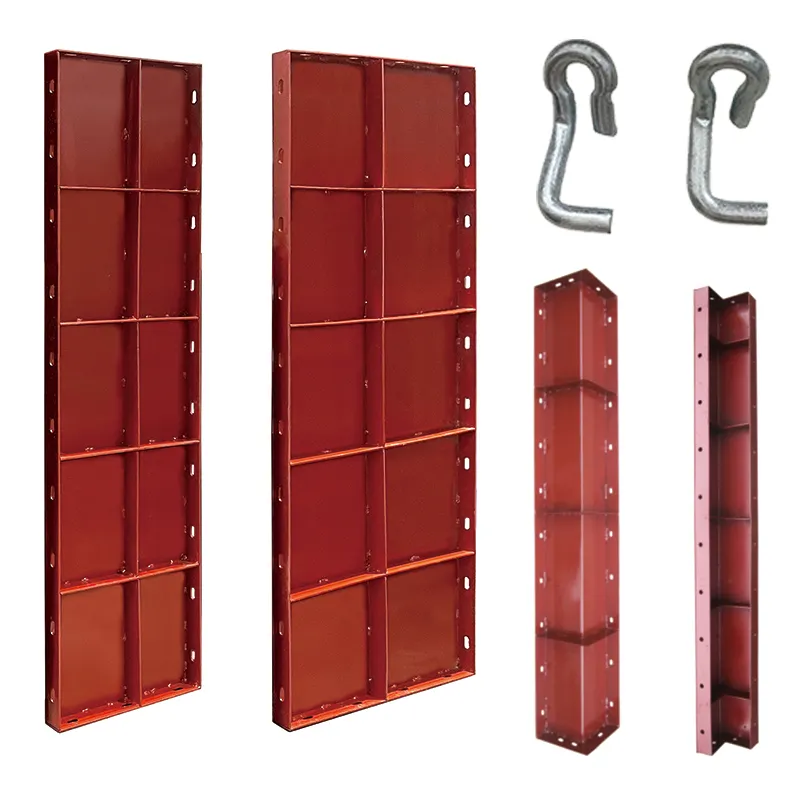

Flat Forms - These are used for forming plane surfaces. They are fabricated into rectangular panels of various standard widths and lengths.
|
Inner Corner Form Parameters
|
|
DIMENSION(MM)
|
|
100*1800*150
|
|
100*1500*150
|
|
100*1500*120
|
|
100*900*150
|
|
100*750*150
|
|
150*1800*150
|
|
150*1500*150
|

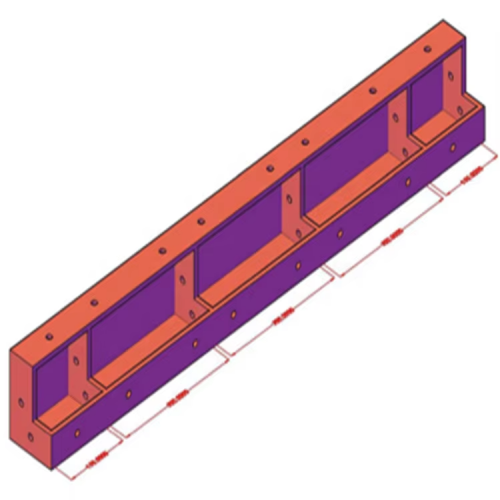

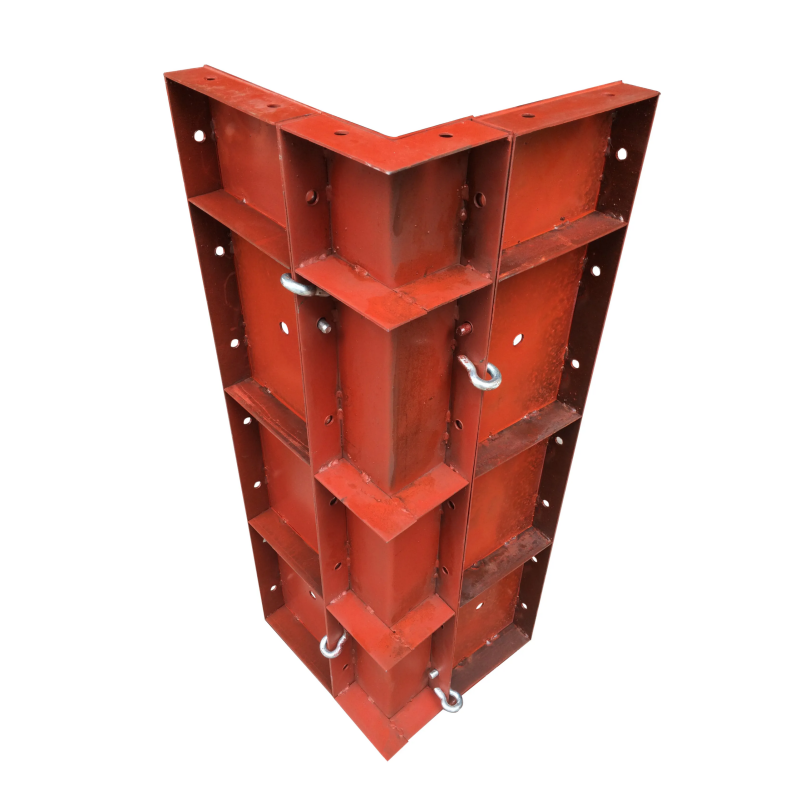

Inner Corner Forms - These are used for forming inner right-angled corners of a structure
|
Corner Angle Form Parameters
|
|
DIMENSION(MM)
|
|
50*150*50
|
|
50*1200*50
|
|
50*900*50
|
|
50*750*50
|
|
50*600*50
|

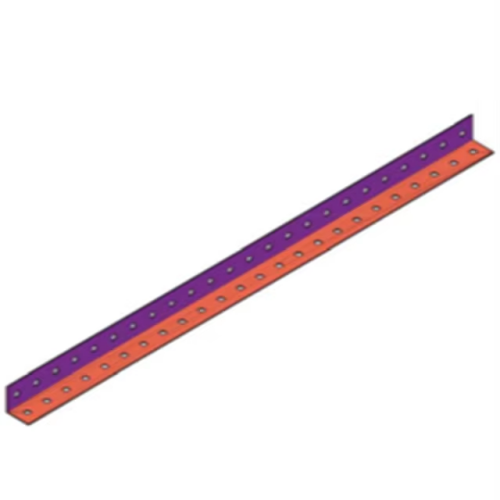

Corner Angles - These are used for forming external angles by combining 2 flat forms into a right-angled corner.
|
L-Shape Forms Paramaters
|
|
DIMENSION(MM)
|
|
100*300*150
|
|
100*350*150
|
|
100*400*150
|
|
100*450*150
|
|
100*500*150
|
|
150*300*150
|
|
150*350*150
|
|
150*400*150
|
|
150*450*150
|

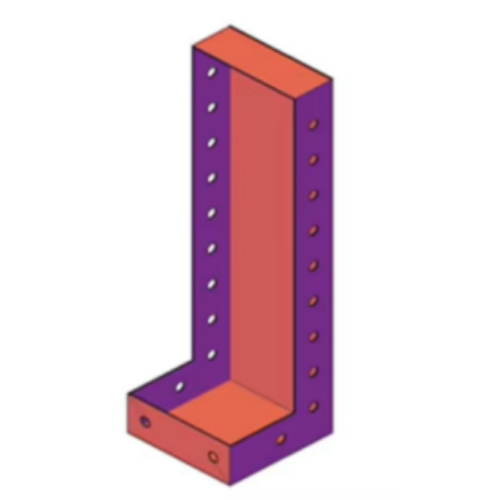

L-Shape Forms Paramaters-These are short inner corner forms for forming and short lengths of right-angle corners of structure.They consist of two form faces of various dimensions.
STEEL FORMWORK SYSTEM
1. Materials
All of our formwork shutters are using China National Standard Q235 Steel, or Japan Standard SS400 Steel.
2. Modular designing
Based on the Modular designing ideas, we make the shutters into various standard size, like 200*1200mm, 250*1200mm, 300*1200mm, 400*1200mm, 600*1200mm, or 200*1800mm, 300*1800mm, 600*1800mm.The standard shutters can be combined into various size based on the building structure drawing accordingly.

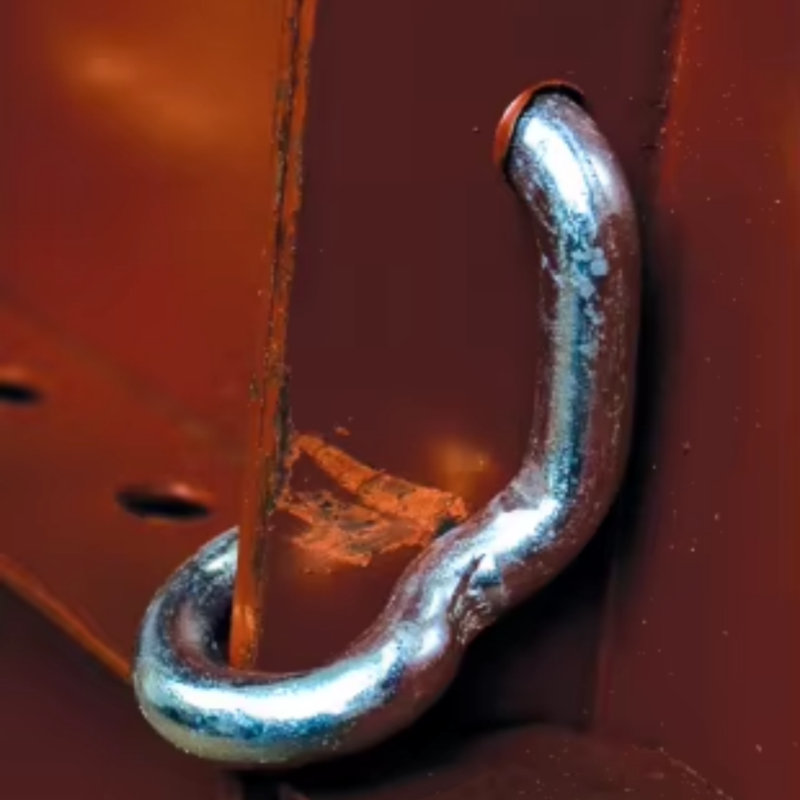

Easy fix way.

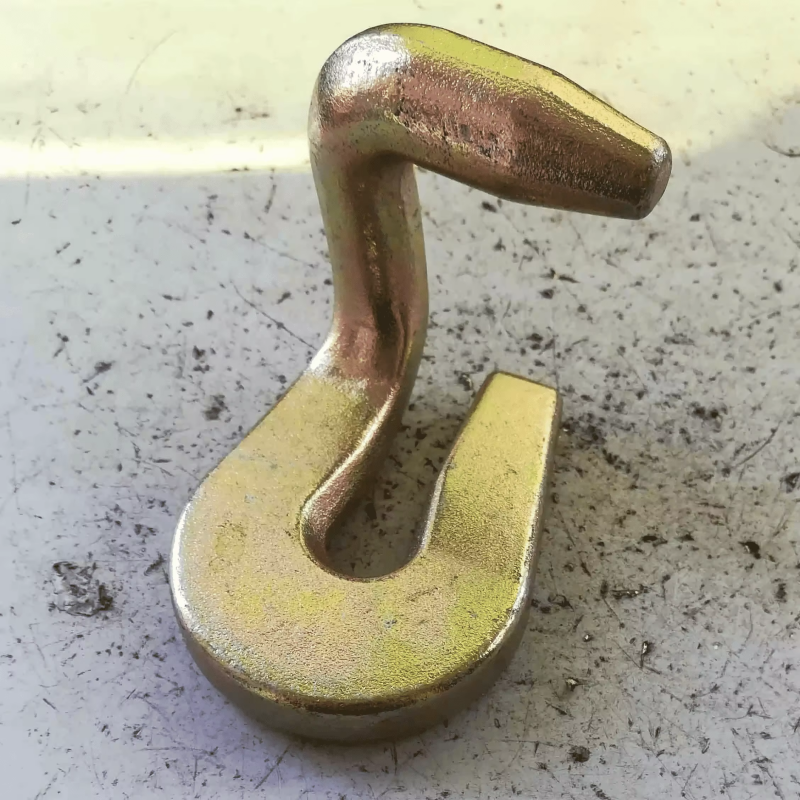

Using the standard U clips as the fix parts, easy fixing, easy dismantling, only with a simple hand hammer

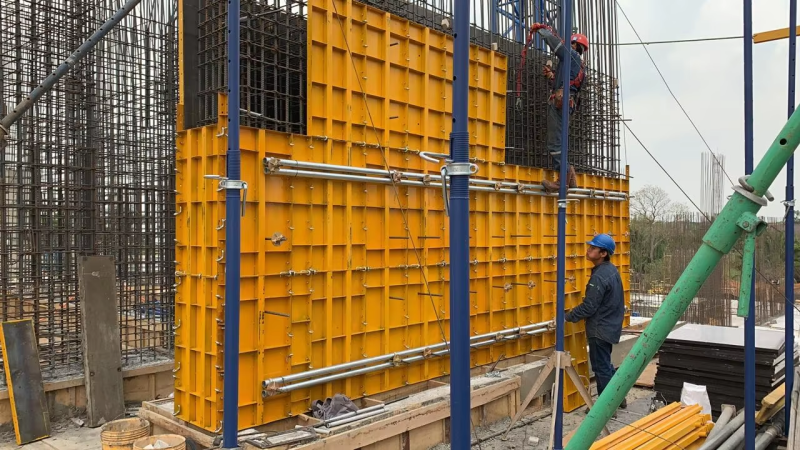

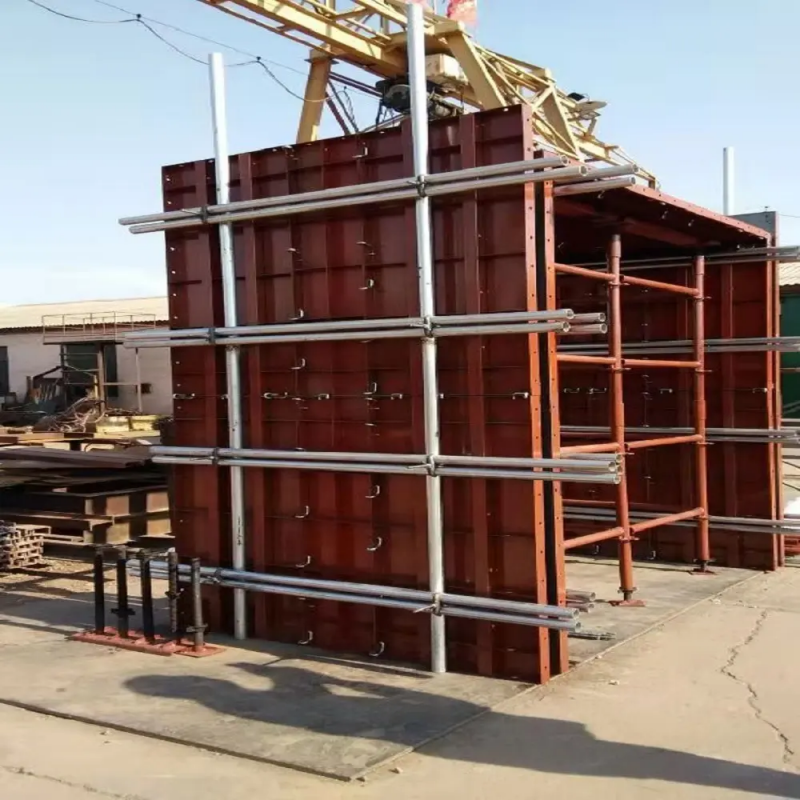

Reinforcement way and Support way
For the reinforcement waler, you can use D48 steel pipes as the transversal direction, and normal wood for vertical direction with the tie rod
Smooth Cutting Surface
It is made of raw materials from the original manufacturer, with fine workmanship, composite standard, and fiat section without buns.
Accurate Dimensions
The thickness of the product is accurate, It is cut in strict accordance with the requirements of customers.
♦Texture of material-Select high quality raw materials to ensure product quality.
♦Scientific structure-Scientific structure, more durable, better use.
♦Advanced technology-Advanced technology, fast production, guarantee delivery speed.
♦After sale guarantee-Professional after-sales team, one-to-one service, more efficient and assured.
1. who are we?
We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
4. why should you buy from us not from other suppliers?
High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
