construction galvanized adjustable steel props scaffolding shoring prop

Short Description:

Scaffolding props is a widely used in the vertical direction of the support structure of the support components, reasonable load capacity, with economic, environmental protection and other characteristics, can be used repeatedly for life.


  • Product name: scaffold steel prop
  • Surface treatment: galvanized, painting, powder coating
  • Package: Bundle Loaded
  • Type of Scaffolding: light duty and heavy duty
  • Material: Q235 Steel
  • Product Detail

    Product Tags

    company philosophy

    Product Description

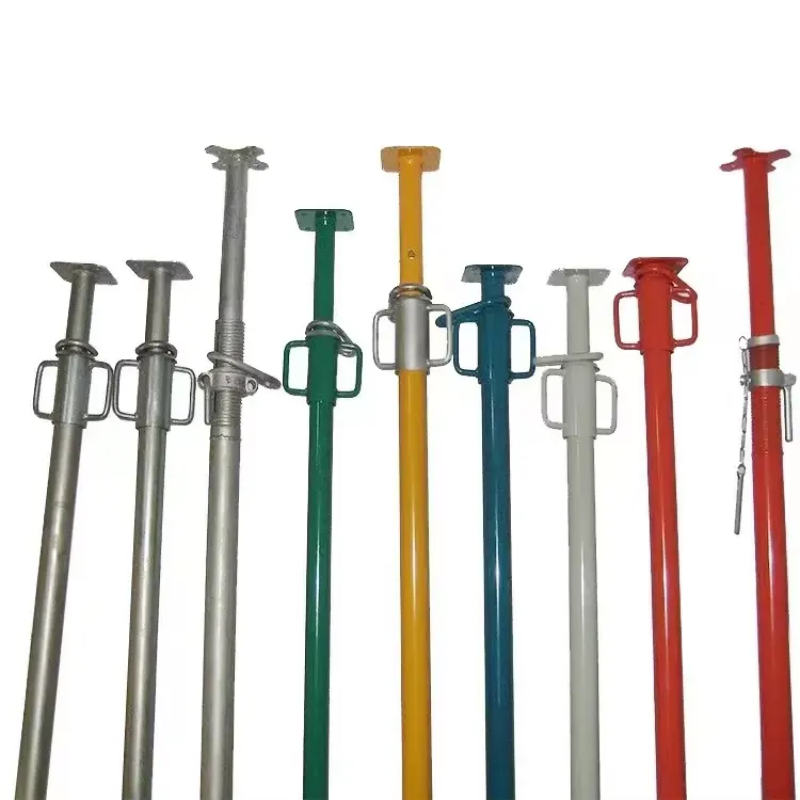

    Steel Prop004

    Introducing our premium Adjustable Steel Props, the ultimate solution for your construction needs. Designed to provide robust vertical support, these scaffolding props are essential components for any construction project, ensuring safety and stability at every level. With a reasonable load capacity and a commitment to economic and environmental sustainability, our props are engineered for repeated use throughout their lifespan.

    Our Adjustable Jack Stands feature a versatile height range from 2.0 to 3.5 meters, making them ideal for 3-meter high floors, with additional heights available to suit your specific requirements. The innovative design includes a rotating collar nut with a convenient handle, allowing for easy cleaning of concrete on the steel prop, ensuring a smooth and efficient workflow on-site.

    Crafted with precision, the adjustable prop sleeve is threaded and rolled by lathe, ensuring a seamless rotation of the nut handle for effortless adjustments. The base plates are equipped with punched holes, enabling secure fitting on sole plates or timber beams, providing added stability and safety during use.

    Our Adjustable Metal Steel Props are not only versatile but also adaptable to various load capacities by utilizing different dimensions of steel tubes. This flexibility makes them an indispensable tool for contractors and builders alike, whether for residential, commercial, or industrial projects.

    Choose our Adjustable Steel Props for your next construction endeavor and experience the perfect blend of strength, reliability, and ease of use. Elevate your construction projects with our top-of-the-line scaffolding props, designed to meet the demands of modern construction while prioritizing safety and efficiency. Trust in our Adjustable Steel Props to support your vision and build a solid foundation for success.

    Product Specification

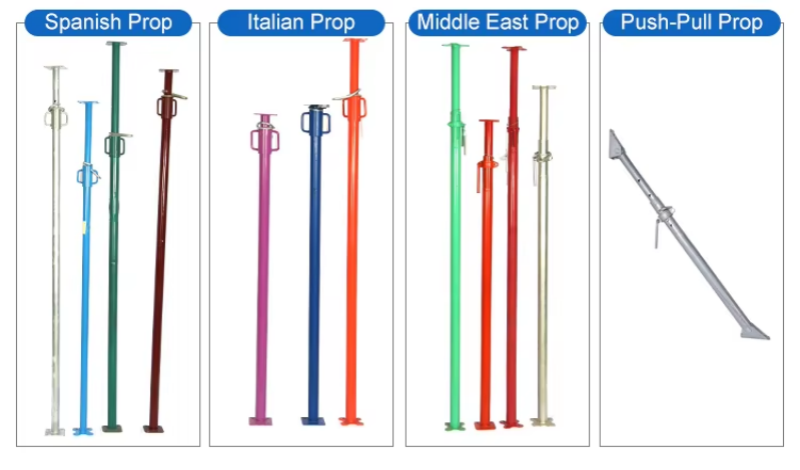

    Steel Prop015
    Middle East Type Prop
    Adjustable Height
    (mm)
    Inner Tube OD
    (mm)
    Outer Tube OD
    (mm)
    Thickness
    (mm)
    Surface Treatment
    1800-3200
    48
    60
    1.8/2.0/2.2/2.5/3.0
    Powder Coated/
    Electric galvanized/Painted
    2000-3500
    48
    60
    1.8/2.0/2.2/2.5/3.0
    2200-4000
    48
    60
    1.8/2.0/2.2/2.5/3.0
    2800-5000
    48
    60
    1.8/2.0/2.2/2.5/3.0



    Italian Type Prop
    Adjustable Height
    (mm)
    Inner Tube OD
    (mm)
    Outer Tube OD
    (mm)
    Thickness
    (mm)
    Surface Treatment
    1600-2900
    48
    56
    1.6/1.8/2.0/2.2

    Powder Coated/
    Electric galvanized/Painted
    1800-3200
    48
    56
    1.6/1.8/2.0/2.2
    2000-3600
    48
    56
    1.6/1.8/2.0/2.2
    2200-4000
    48
    56
    1.6/1.8/2.0/2.2



    Spanish Type Prop
    Adjustable Height
    (mm)
    Inner Tube OD
    (mm)
    Outer Tube OD
    (mm)
    Thickness
    (mm)
    Surface Treatment
    1600-2900
    40
    48
    1.6/1.8/2.0/2.2

    Powder Coated/
    Electric galvanized/Painted
    1800-3200
    40
    48
    1.6/1.8/2.0/2.2
    2000-3500
    40
    48
    1.6/1.8/2.0/2.2
    2200-4000
    40
    48
    1.6/1.8/2.0/2.2



    Heavy Duty Steel Prop
    Min
    Max
    Internal Tube
    External Tube
    1.8m
    3.2m
    48*2.0/2.5/3.0mm
    60*2.0/2.5/3.0mm
    2.0m
    3.6m
    48*2.0/2.5/3.0mm
    60*2.0/2.5/3.0mm
    2.2m
    4.0m
    48*2.0/2.5/3.0mm
    60*2.0/2.5/3.0mm
    2.4m
    3.9m
    48*2.0/2.5/3.0mm
    60*2.0/2.5/3.0mm
    3.5m
    4.0m
    48*2.0/2.5/3.0mm
    60*2.0/2.5/3.0mm
    3.0m
    5.0m
    48*3.5/4.0mm
    60*3.5/4.0mm



    Light Duty Steel Prop
    Min
    Max
    Internal Tube
    External Tube
    1.6m
    3.0m
    40*2.0mm
    48*2.0mm
    48*2.0mm
    56*2.0mm
    60*2.0mm
    1.8m
    2.5m
    40*2.0mm
    48*2.0mm
    48*2.0mm
    60*2.0mm
    2.0m
    3.5m
    40*2.0mm
    48*2.0mm
    48*3.5mm
    60*3.5mm

    Applications

    steel prop base plate018
    steel prop base plate019

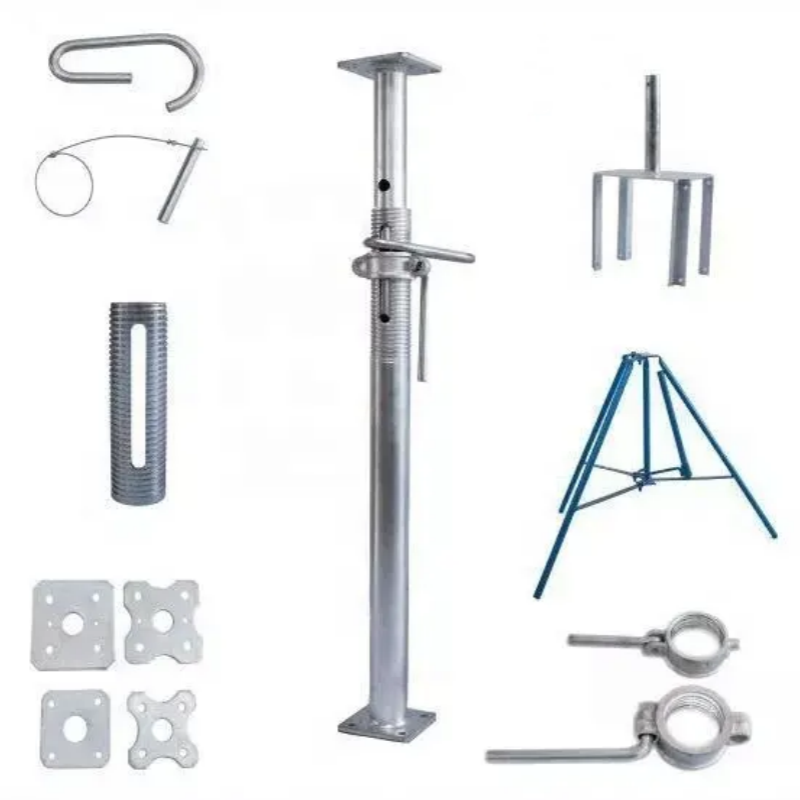

    1. A complete set of steel prop consists of Top Plate, Base Plate,Inner pipe,outer pipe, Prop Sleeve, Prop Nut and G Pin.
    2.The steel prop is easy to assemble and disassemble due to its simple structure.
    3. Can be adjusted to any length within its range;it can be reused.
    4. Widely used in proping system such as construction,plants and bridge etc.

    Product Display

    Steel Prop046
    Steel Prop011

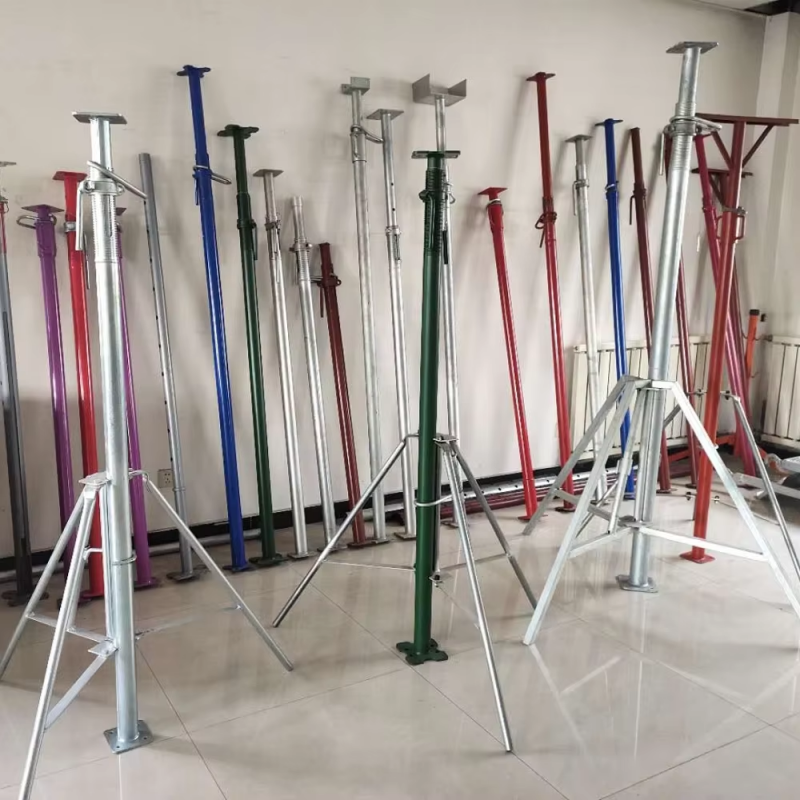

    Steel Prop Sleeve011
    Steel prop
    steel prop base plate011
    steel prop base plate010

    Product advantages:

    1. Safety, can provide higher case protection.

    2. Quality advantage: The quality of couplers produced by forging technology is superior to other types of products.

    3. Convenient maintenance, forging process is not easy to rust or damage.

    Packing and loading

    Steel Prop008
    steel prop base plate015
