dip-galvanized Steel Lattice Tower - H Beam for Fixed Solar Mounting System – Rainbow Detail:

Product Description:

h beam 8
H beam13

We work extensively with many of the world’s leading solar tracker companies and frame manufacturers to help them enrich their size range and reduce logistics costs. By working with us, suppliers can optimize their price products and delivery schedules to ensure competitive advantages.

The material is made of American standard wide-flange H Beam with the size standard of ASTM A6. The steel grade can be selected between ASTM A572 GR50 /GR60, ASTM A992 or Q355. The hot-dip galvanizing meets ASTM A123, ISO1461 and AS/NZS4680 standards. We are also happy to meet other quality standards and different HDG coating thickness for our customers, as it is our tradition to quickly respond to customer needs and act immediately. The company’s long-term inventory of the common specifications of the WF beams 2000 tons, to meet the customer’s fastest delivery requirements.

We cherish our customers’ projects as we cherish our own products. We work with our customers from the start of the project, better packaging and loading solutions; more flexible delivery schedules and third-party inspections will all receive the same attention here. Even after the project is completed, our global customers can still rely on our after-sale service to ensure that the product will be used effectively in the long period.

Product Specification:

Specifications (in,Xlb/lft)	Hight (mm)	Width (mm)	Web thinckness (mm)	Flange thickness (mm)	Corner radius (mm)	Theoretical weight
W6 x 7	147	100	3.3	4.2	-	10.56
W6 x 8.5	148	100	4.3	4.9	6	13.0
W6 x 9	150	100	4.3	5.5	6	13.5
W6 x 12	153	102	5.8	7.1	6	18.0
W6 x 15	152	152	5.8	6.6	6	22.5
W6 x 16	160	102	6.6	10.3	6	24
W6 x 20	157	153	6.6	9.3	6	29.8
W6 x 25	162	154	8.1	11.6	6	37.1
W8 x 9	200	80	4.3	5.2	8	13.5
W8 x 10	200	100	4.3	5.2	8	15
W8 x 13	203	102	5.8	6.5	8	19.3
W8 x 15	206	102	6.2	8	8	22.5
W8 x 18	207	133	5.8	8.4	8	26.6
W8 x 21	210	134	6.4	10.2	8	31.3

Inspection:

IMG_20190426_1527542

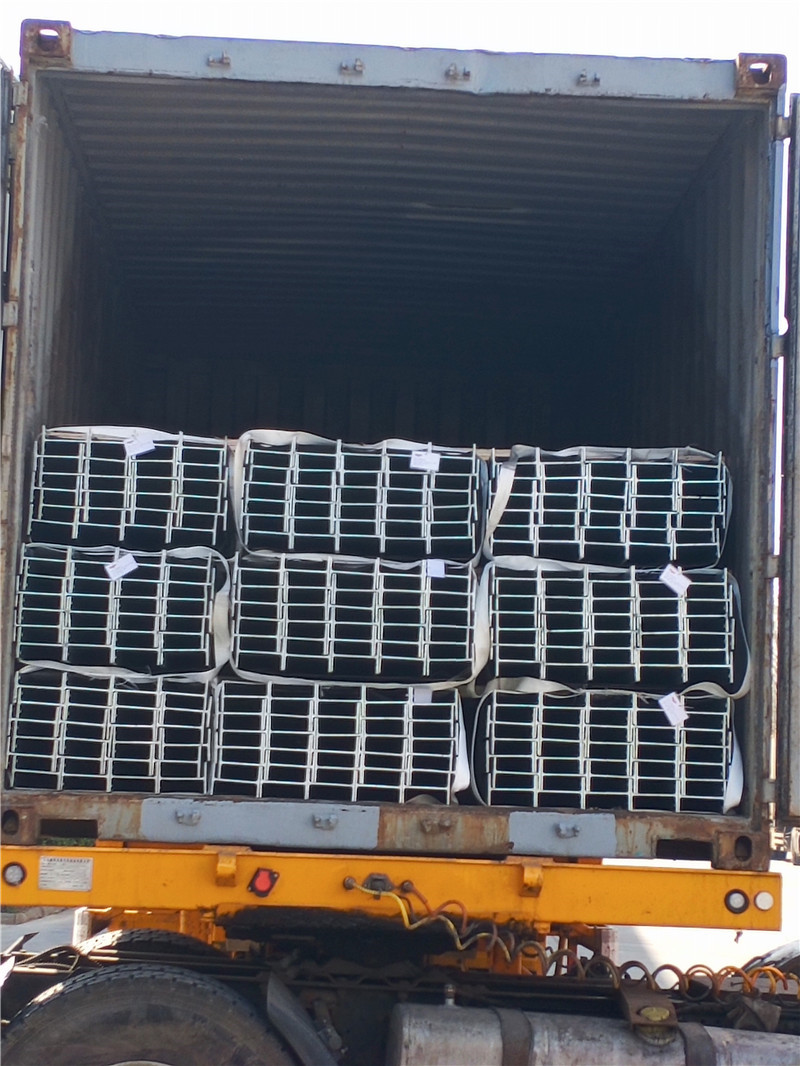

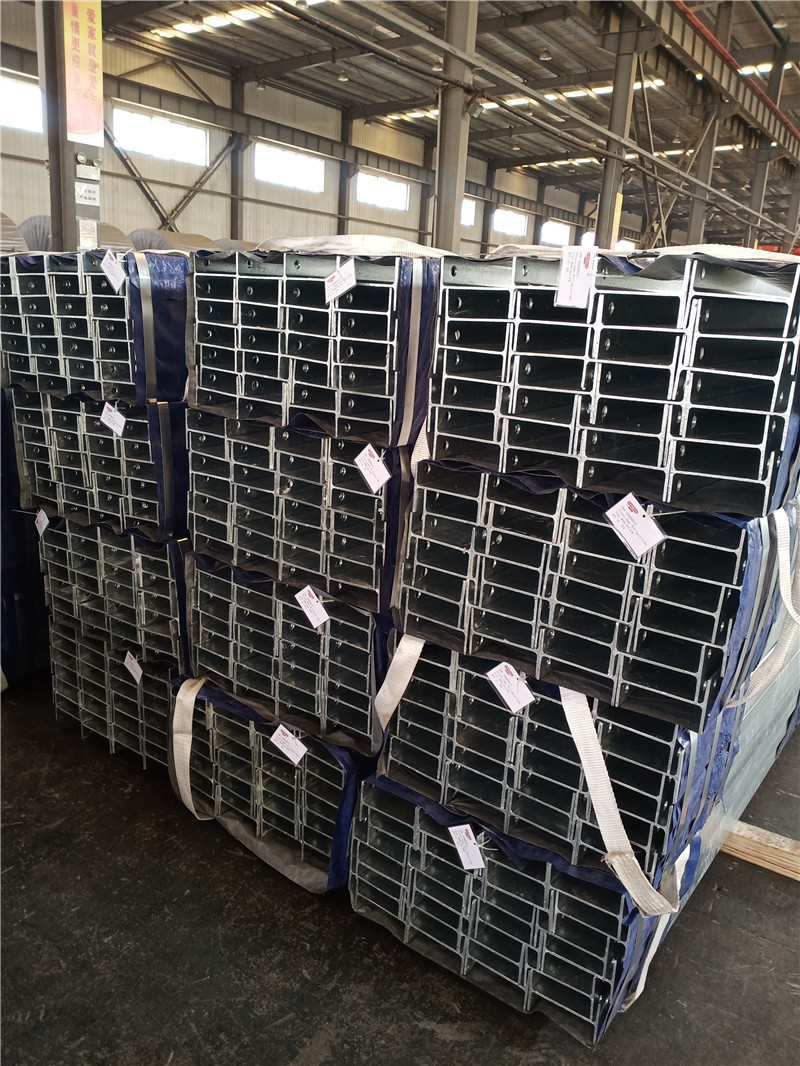

Packing& Loading:

solar tracker h beam
solar tracker h beam 1

Product detail pictures:
