Fence Door/Fencingdoor for House/Farm/Villa

Short Description:

Our , made of high quality galvanized square, round and oval pipe is ideal for protecting horse. It has 3-7 rails to support the fence and each rails has different spacing to prevent horse hooves and feet from catching in the fence. It can be used at ranch, farm in shape of round pen and fence box based on the horses’ height and number.


Product Detail

Product Tags

Product Description:

Fence Post Frame
Fence Post Frame

Our , made of high quality galvanized square, round and oval pipe is ideal for protecting horse. It has 3-7 rails to support the fence and each rails has different spacing to prevent horse hooves and feet from catching in the fence. It can be used at ranch, farm in shape of round pen and fence box based on the horses' height and number. Our fence panel is produced under professional cut short machine, welded team and packing technology. It is widely used in New Zealand, Australia, America, Western countries and so on.

• The mental fence contains sheep, goats, cattle, and pigs effectively;

• Galvanized Iron for strength and zinc coating for weather protection;

• High zinc coated makes the fence durable;

• The dimension is Customizable;

• It is easy to install and use.

Product Specification:

 Round tube style
Height*Length 1m*2.1m,1m*2.9m,1.8m*2.1m
Horizontal rails 32mmOD,42mmOD, (6 round rail)
Vertical pipe 32mmOD,42mmOD
Thickness 1.6mm, 2.0mm
Material pre hot dipped galvanized steel pipe
Accessories 4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel
Square tube style
Height*Length 1m*2.1m,1m*2.9m,1.8m*2.1m
horizontal rails 40*40mm,50*50mm (6 square rail)
vertical pipe 40*40mm,50*50mm
Thickness 1.6mm, 2.0mm
material pre hot dipped galvanized steel pipe
Accessories 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel
Oval rail with square post style
Height*Length 1m*2.1m,1m*2.9m,1.8m*2.1m
horizontal rails 30x60mm, 40x80mm, 42x115mm,50x70mm  (6 oval rail)
vertical pipe 40*40mm,50*50mm
Thickness 1.6mm, 2.0mm
material pre hot dipped galvanized steel pipe
Accessories 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel
Note: we can custom made according to your request

Product Applications:

Widely used in raising the animals, specially the cattle, the cow, the horse, the sheep etc.

The standard specification of horse panels horse panel.Designed with safety, usability and functionality in mind. This is the biggest selling horse panel in the USA and is now selling world wide as it is recognised as a stand out in horse and rider safety.

· Single piece vertical stays through drilled horizontal rails for extra strength,

·J-Legs increase portability and help keep panel on top of ground in wet or boggy conditions,

·Chain connectors offer increased versatility and safety by eliminating foot traps,

· Connects to any other brand of panel with no special connectors or wire needed.

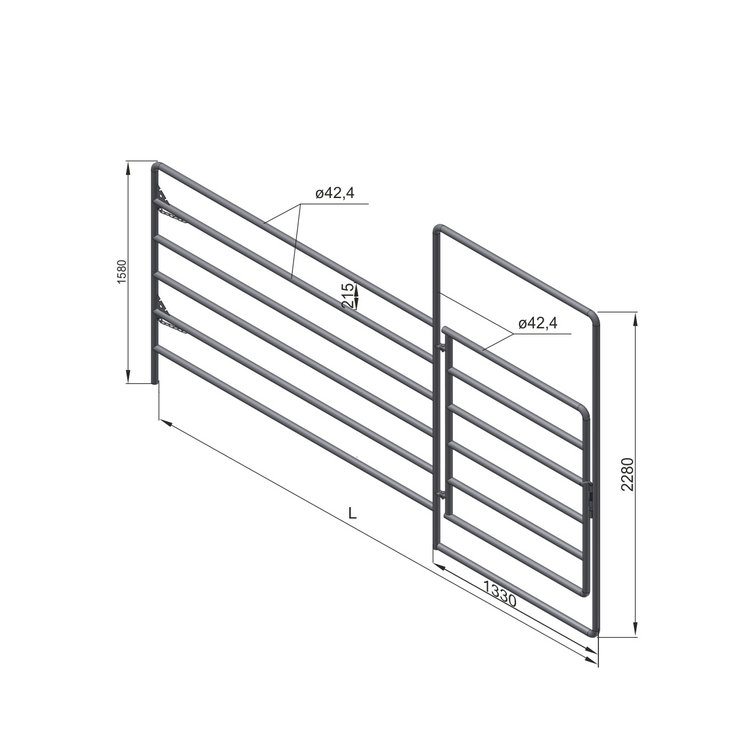

Fence Post Frame 2

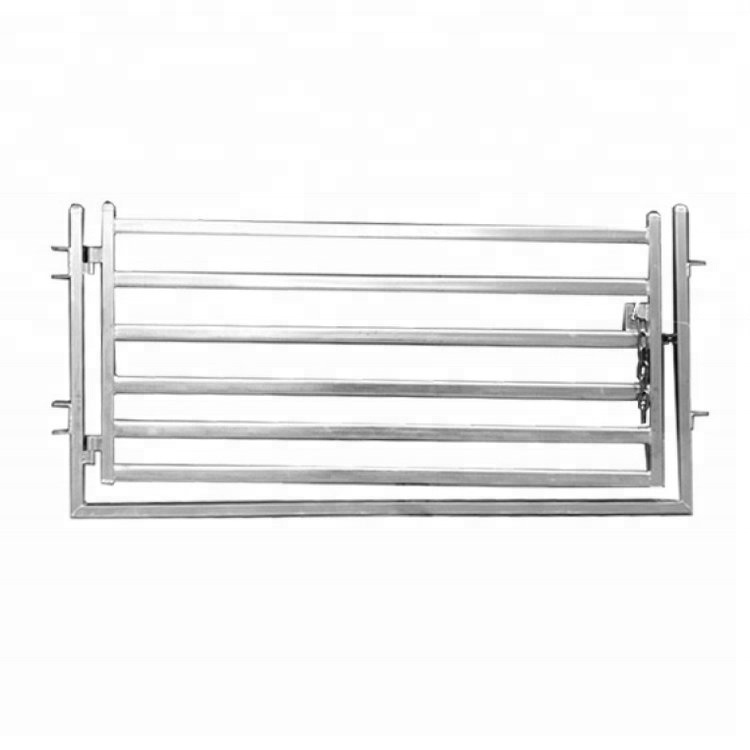

Fence Post Frame 1

Company Profile:

tube

Welcome to Tianjin Rainbow Steel.We manufacture steel products or steel structure for the Solar Mounting Steel Structure, Transmission & Distribution Steel Structures (Towers & Poles) , Construction, Industrial, Scaffolding and Greenhouse Construction. Tianjin Rainbow Steel Group was founded in 2000, Located in Tianjin City. After several years of development, Rainbow Steel has developed into an intergrated iron and steel enterprise of galvanized steel pipe, galvanized steel angle bar, galvanized profiles, steel structures, and we are also the biggest electrical transmission steel tower and pole factory in china. our group has our own galvanizing mill, So all the jobs can be galvanized from our own factory. Discover our vast metal product range including Steel Pipes, Iron Angles, Iron Beams, Perforated Steel Products, Welded Steel Structures, Steel Tower&Pole, Exciting projects, extensive industry expertise and high-quality service offering.
