Galvanized Steel Farm Field Fence Stay Gate

Short Description:

Our , made of high quality galvanized square, round and oval pipe is ideal for protecting horse. It has 3-7 rails to support the fence and each rails has different spacing to prevent horse hooves and feet from catching in the fence. It can be used at ranch, farm in shape of round pen and fence box based on the horses’ height and number.


Product Detail

Product Tags

Product Description:

Fence Post Frame





 are ideal way to get cattle yards built fast. These panels are also portable and suitable to set up holding yards of any size. They come in four different configurations to suit your requirements. Tough and strong, they withstand a range of stock pressure and come ready to use with 16mm pins included.

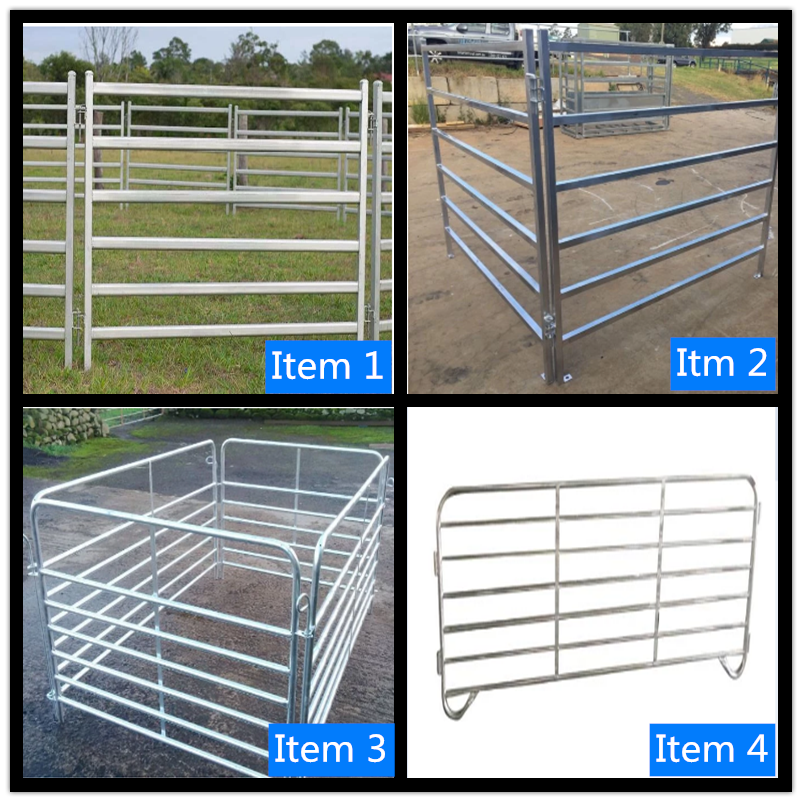

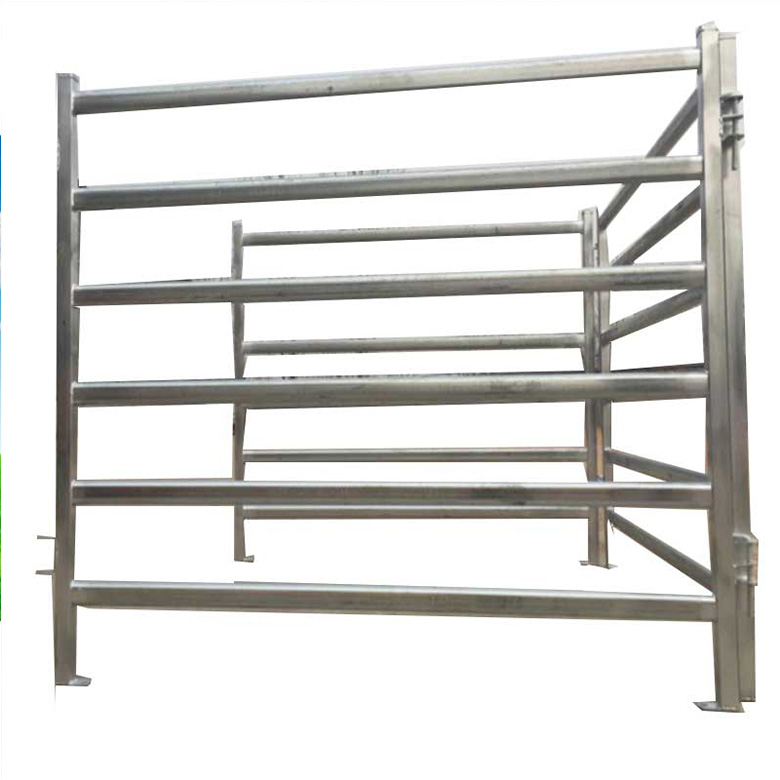

Product Display:

Fence Post Frame
Fence Post Frame
Fence Post Frame

 Feature:

Portable: easy fast to handle (set up, remove and put down), makes the  very flexible.
Robust: interlocking system makes the fence very stable;
Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefit grassland protection.
Livestock Protection: no sharp edge, very smooth welding spot finihment
Cost-effective: give your corral years of service and minimal maintenance at a low initial cost
It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
Main markets: Australia, European countries, Canada, America and Asia countries.

Product Specification:

 Round tube style
Height*Length 1m*2.1m,1m*2.9m,1.8m*2.1m
Horizontal rails 32mmOD,42mmOD, (6 round rail)
Vertical pipe 32mmOD,42mmOD
Thickness 1.6mm, 2.0mm
Material pre hot dipped galvanized steel pipe
Accessories 4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel
Square tube style
Height*Length 1m*2.1m,1m*2.9m,1.8m*2.1m
horizontal rails 40*40mm,50*50mm (6 square rail)
vertical pipe 40*40mm,50*50mm
Thickness 1.6mm, 2.0mm
material pre hot dipped galvanized steel pipe
Accessories 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel
Oval rail with square post style
Height*Length 1m*2.1m,1m*2.9m,1.8m*2.1m
horizontal rails 30x60mm, 40x80mm, 42x115mm,50x70mm  (6 oval rail)
vertical pipe 40*40mm,50*50mm
Thickness 1.6mm, 2.0mm
material pre hot dipped galvanized steel pipe
Accessories 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel
Note: we can custom made according to your request

Product Applications:

It used in cattle yards,sheep yards,horse yards,and all need high security protection livestock yards.
Field fence is a kind of mesh used in cattle, goat, deer, and pig.
Papadopoulos grassland, forestry, highway and environment.
It is used for grassland, pastures, protection of ecological projects.

Fence Post Frame 1
Fence Post Frame 2
