Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow Detail:

We work extensively with many of the world’s leading solar tracker and frame manufacturers to help them enrich their size range and reduce logistics costs. By working with us, suppliers can optimize their price products and delivery schedules to ensure competitive advantages.

The material is made of American standard wide-flange H-beam with the size standard of ASTM A6. The steel grade can be selected between ASTM A572 GR50 /GR60, ASTM A992 or Q355. The hot-dip galvanizing meets ASTM A123, ISO1461 and AS/NZS4680 standards. Of course, we are also happy to meet other quality standards and different HDG coating thickness for our customers, as it is our tradition to quickly respond to customer needs and act immediately. The company’s long-term inventory of the common specifications of the WF beams 2000 tons, to meet the customer’s fastest delivery requirements.

We cherish our customers’ projects as we cherish our own products. We work with our customers from the start of the project, better packaging and loading solutions; more flexible delivery schedules and third-party inspections will all receive the same attention here. Even after the project is completed, our global customers can still rely on our after-sale service to ensure that the product will be used effectively in the long period.



Specifications
(in,Xlb/lft)

Hight
(mm)

Width
(mm)

Web thinckness
(mm)

Flange thickness
(mm)

Corner radius
(mm)

Theoretical weight

W6 x 7

147

100

3.3

4.2

-

10.56

W6 x 8.5

148

100

4.3

4.9

6

13.0

W6 x 9

150

100

4.3

5.5

6

13.5

W6 x 12

153

102

5.8

7.1

6

18.0

W6 x 15

152

152

5.8

6.6

6

22.5

W6 x 16

160

102

6.6

10.3

6

24

W6 x 20

157

153

6.6

9.3

6

29.8

W6 x 25

162

154

8.1

11.6

6

37.1

W8 x 9

200

80

4.3

5.2

8

13.5

W8 x 10

200

100

4.3

5.2

8

15

W8 x 13

203

102

5.8

6.5

8

19.3

W8 x 15

206

102

6.2

8

8

22.5

W8 x 18

207

133

5.8

8.4

8

26.6

W8 x 21

210

134

6.4

10.2

8

31.3

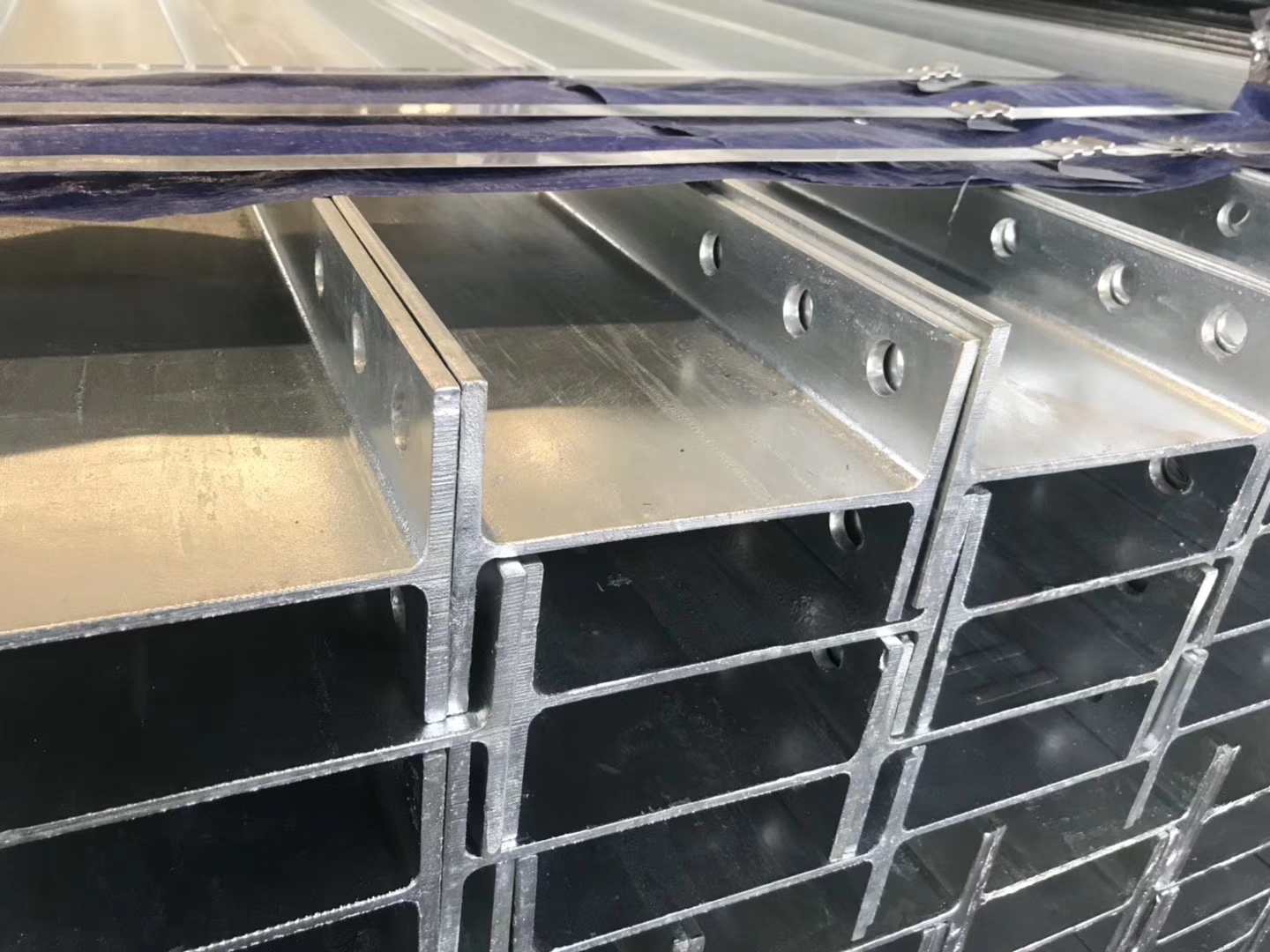

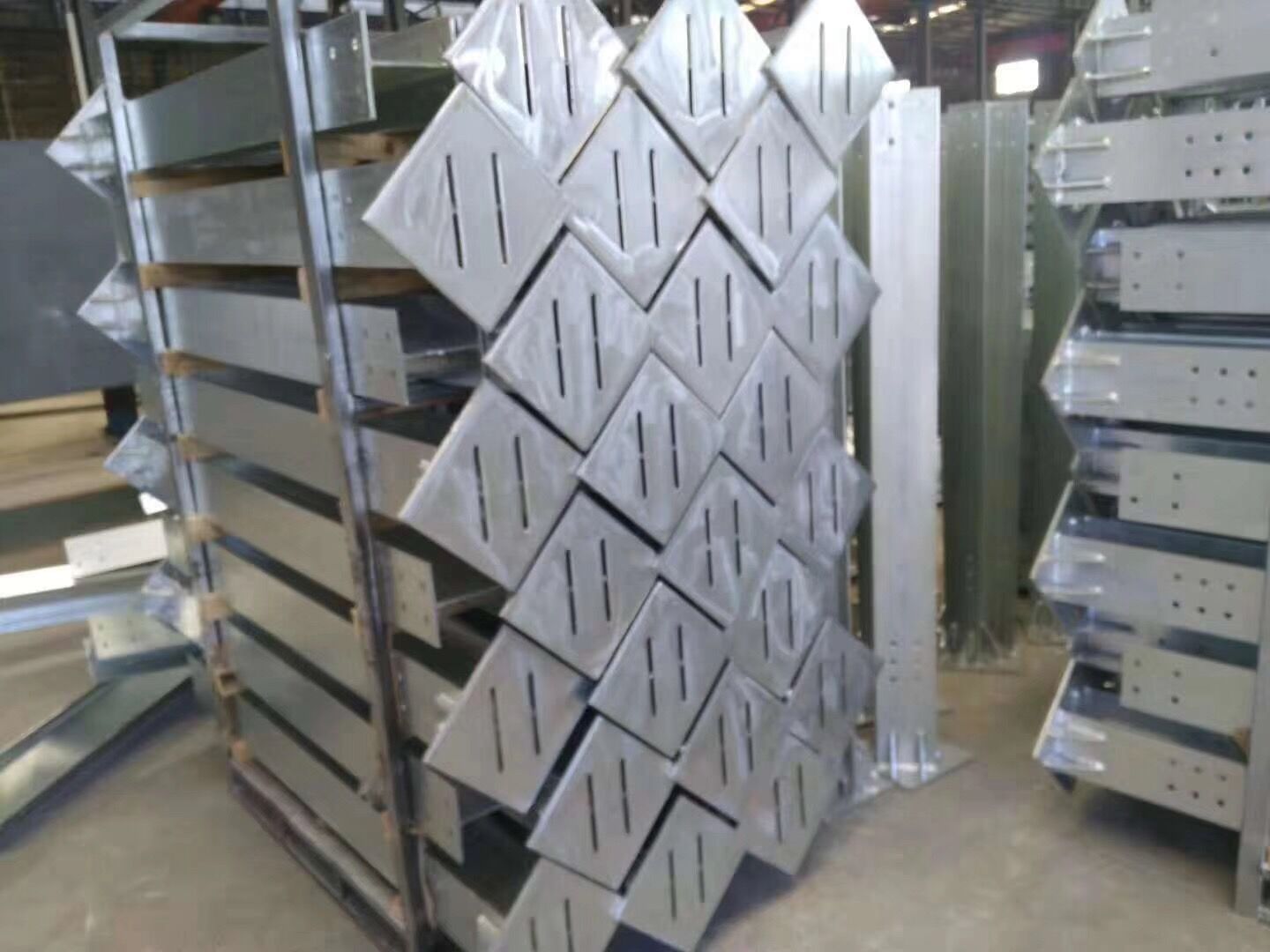

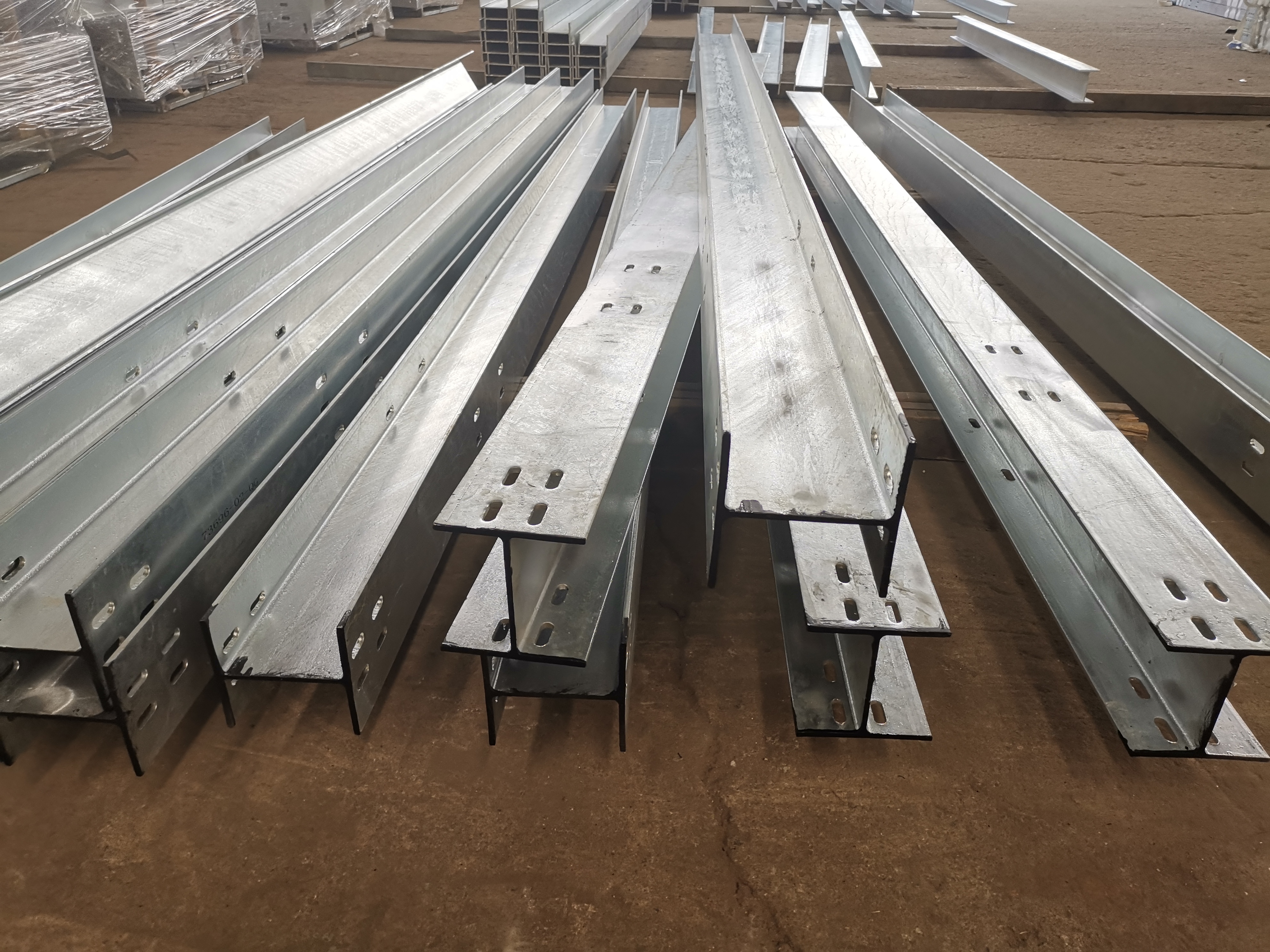

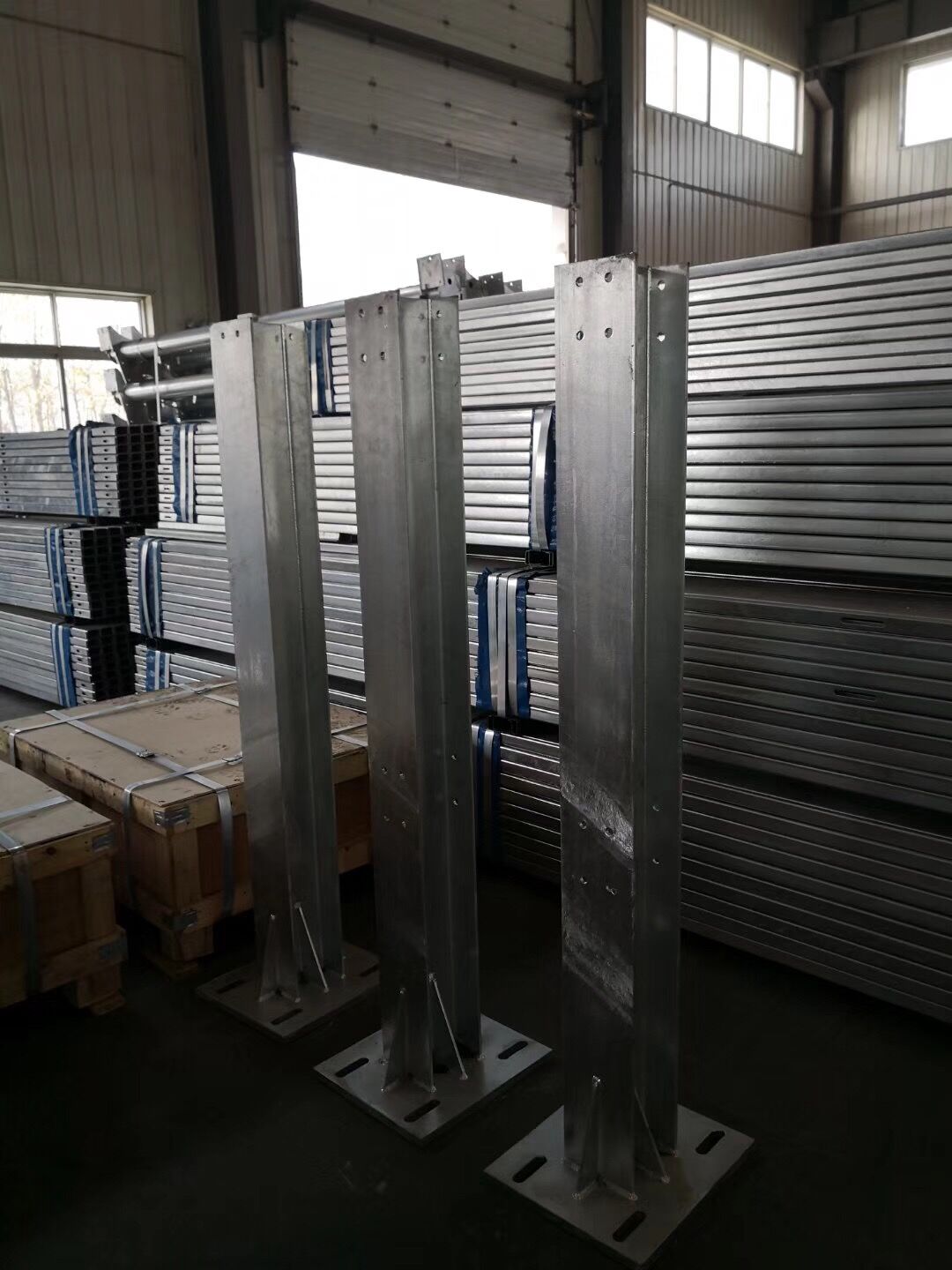

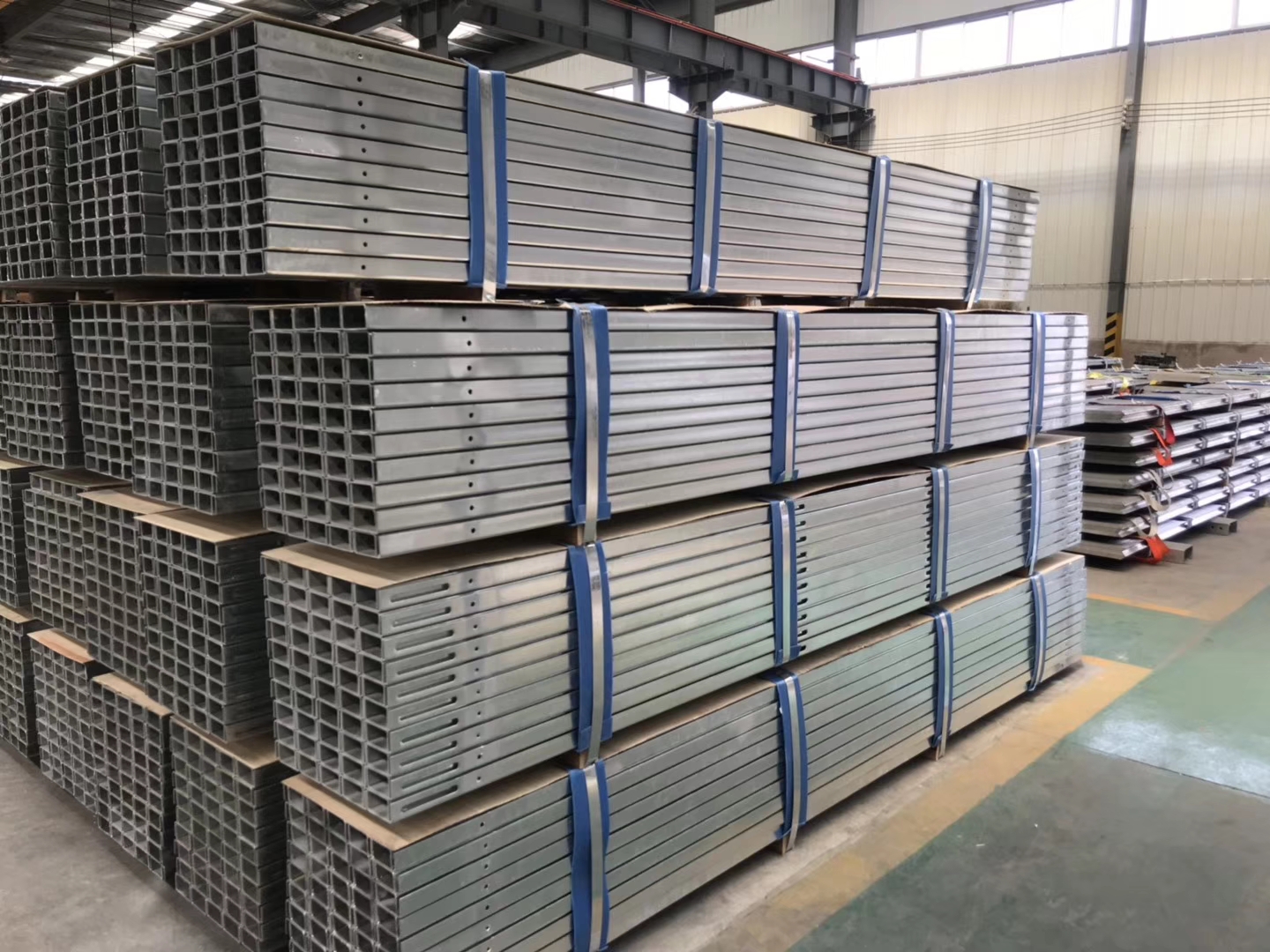

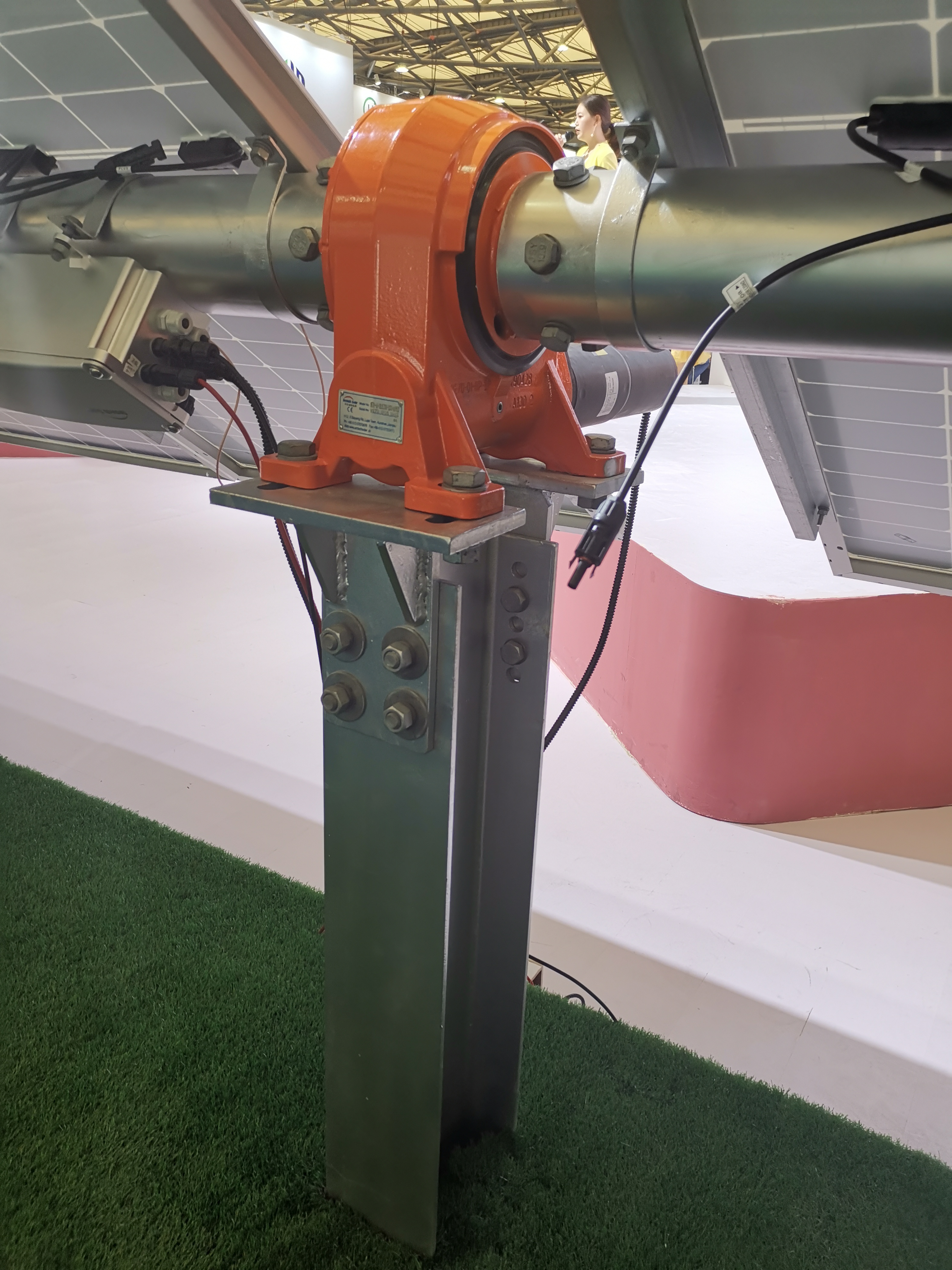

QQ图片20190402181115 QQ图片20190625175314 QQ图片20190625175649 QQ图片20190625175319 QQ图片20190625175324 QQ图片20190625175645 Structural SteelIMG_20190309_145530




Product detail pictures:

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures

Galvanized Steel Slotted Channels - H Beam for Fixed Solar Mounting System – Rainbow detail pictures
