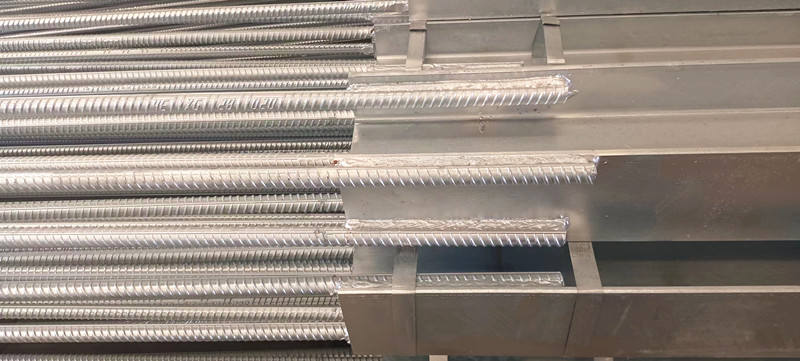

H-100mm Section Welding Rebar Steel Concrete Sleeper Retaining Wall Posts

Short Description:

Product Specification                                                                 Common Size SupplyWall HeightH Size(mm)H Size(mm)Rebar Size(mm)Rebar Length(mm)Total Length(mm0.4mH100*100*6*8750//7500.6mH100*...


Product Detail

Product Tags

Product Specification

Common Size Supply
Wall Height
H Size(mm)
H Size
(mm)
Rebar Size
(mm)
Rebar Length(mm)
Total Length(mm
0.4m
H100*100*6*8
750
/
/
750
0.6m
H100*100*6*8
800
16
500
1150
0.8m
H100*100*6*8
1100
16
700
1550
1.0m
H100*100*6*8
1300
16
900
1950
1.2m
H100*100*6*8
1500
16
1100
2350
1.4m
H100*100*6*8
1700
16
1300
2750
1.6m
H100*100*6*8
1900
16
1500
3150
1.8m
H100*100*6*8
2100
16
1700
3550
2.0m
H100*100*6*8
2300
16
1900
3950
2.0m
150UC23
2400
16
2350
4400
2.2m
150UC23
2600
16
2550
4800
2.4m
150UC23
2800
16&20
2750
5200
2.6m
150UC23
3000
16&20
2950
5600
3.0m
H150*150*7*10
3400
16&20
3350
6400
3.2m
H200*200*8*12
3600
16&20
3550
6800
3.4m
H200*200*8*12
3800
16&20
3750
7200
3.6m
H200*200*8*12
4000
16&24
3950
7600
4.0m
H250*250*9*14
4500
16&24
4350
8500
Note:1.Galvanized coat more than 85um(600g/m2)

          2.Other size and length can customized
3.As request can punched holes customized
1 (7)

Products Features

Product performance: High strength: Because the rebar itself has a high strength, after the welding combination into H-type, can give full play to the strength advantages of steel, can withstand large loads, suitable for a variety of large building structures and projects. Good toughness: H-type welded rebar has good toughness, and can effectively absorb and disperse energy when bearing dynamic load or impact load, and is not easy to brittle fracture, which improves the safety and reliability of the structure. Corrosion resistance: Some H-type welded rebar will be subjected to special surface treatment, such as hot dip galvanizing, painting, etc., so that it has good corrosion resistance and can be used in harsh environmental conditions for a long time, reducing maintenance costs and replacement frequency. Good weldability: The material and welding process of the product itself make it have good weldability, which is convenient to connect and assemble with other steel structure components on the construction site, and can meet the design and construction requirements of different engineering structures.

Packaging & Shipping


Contact Us

FAQ

1. who are we?
We are based in Tianjin, China, start from 2014,sell to Southeast Asia(20.00%),South Asia(20.00%),Southern Europe(10.00%),WesternEurope(10.00%),Africa(10.00%),South America(5.00%). There are total about 51-100 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Steel Pipes,Iron Angles,Iron Beams,Welded Steel Structures,Perforated Steel Products

4. why should you buy from us not from other suppliers?
High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards


5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
