H20 Timber Beam Building Slab Concreting Construction

Short Description:

Formwork H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used in formwork systems, construction systems parts, Falsework systems, timber structures and other bearing structures . Formwork H20 Timber Beam is the strongest and lightest formwork beam made of engineered spruce wood. Our Formwork beam are produced in various standard lengths.


  • Type: Timber Beam Formwork
  • Weight: 45 kg/sqm
  • Material: H20 timber beam, Q235 Steel, Film-faced plywood
  • Usage: Concrete slab construction
  • Bearing capacity: 8~9.1KN/sqm
  • Product Detail

    Product Tags

    company philosophy

    Product Description

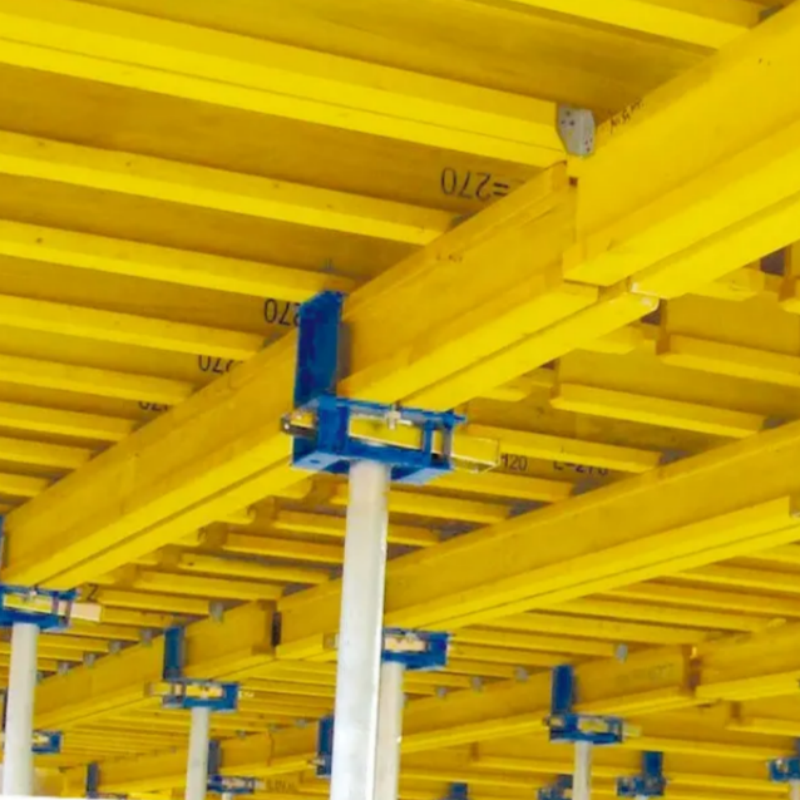

    H20 timber beam001
    H20 timber beam007

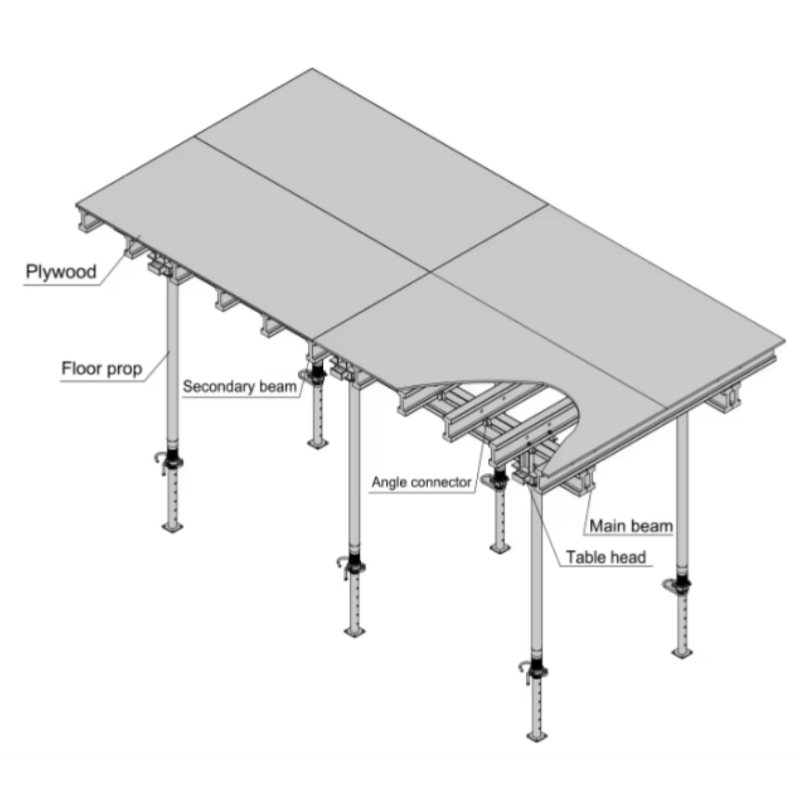

    H20 timber beam010

    Introducing the Formwork H20 Timber Beam – the ultimate solution for your construction needs. Also known as H20 Wood Beam, I Joist, I Beam, Wood H Beam, or Wood Girder, this innovative product is designed to meet the demands of modern construction projects. Whether you are working with concrete formwork, concrete plywood formwork, or Doka formwork systems, our H20 Timber Beam is the perfect choice for ensuring structural integrity and efficiency.

    Crafted from engineered spruce wood, the Formwork H20 Timber Beam is not only the strongest but also the lightest formwork beam available on the market. This unique combination of strength and lightweight design makes it ideal for use in various applications, including formwork systems, construction system parts, falsework systems, timber structures, and other bearing structures.

    Our Formwork H20 Timber Beams are produced in a range of standard lengths, allowing for versatility and adaptability in any project. The engineered design ensures that these beams can withstand heavy loads while maintaining their shape and performance over time. This reliability is crucial for contractors and builders who require materials that can keep up with the rigorous demands of construction.

    Incorporating the Formwork H20 Timber Beam into your project not only enhances safety and stability but also streamlines the construction process, saving you time and resources. With its exceptional performance and durability, this product is a must-have for any construction professional looking to elevate their work.

    Choose the Formwork H20 Timber Beam for your next project and experience the difference that quality engineering and design can make. Trust in a product that stands the test of time and delivers results you can rely on.

    Product Specification

    Product Name
    H20 Beam / h 20 Wooden Beam Formwork for hydraulic automatic climbing formwork
    Technical Specification
    Flange: Radiate pine LVL from New Zealand
    Web: Poplar core plywood
    Glue: WBP glue
    Weight: around 5.0 kg/m
    Available length (m): 1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized
    Features
    * Flange is made from imported radiate pin LVL, Finger-jointed into the web* Web is made from poplar core plywood with Melamine
    WBP glue
    * Two ends of each beam can be sealed with protective caps to protect them from moisture, reduce damage and increase service life
    * Yellow water proof painting
    * Monitoring as per EN13377 standard
    Packing
    Standard exporting package( bottom is pallet, covered with plastic film, around is carton, strengthen by steel tape with 3*6
    Size Available
    length:3000-6000mm, width:70-300mm
    Surface
    yellow waterproof painting or as per request

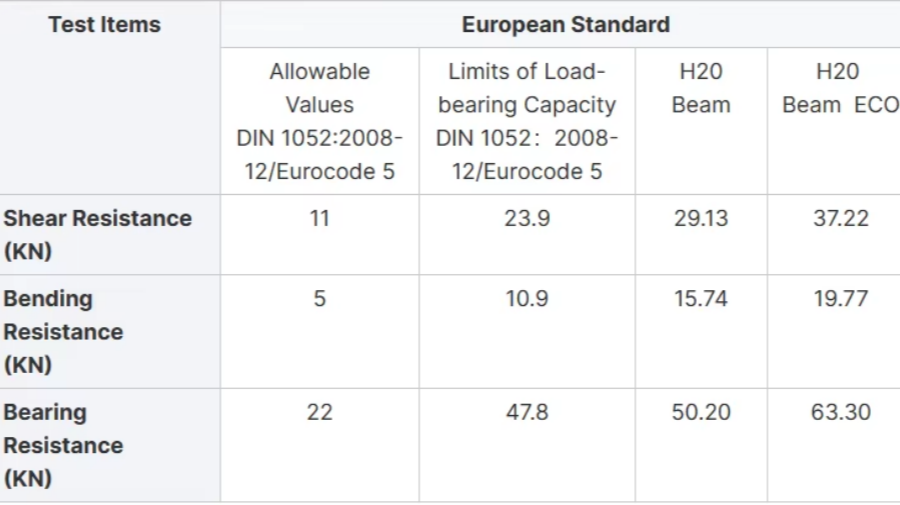

    H20 timber beam023

    Applications

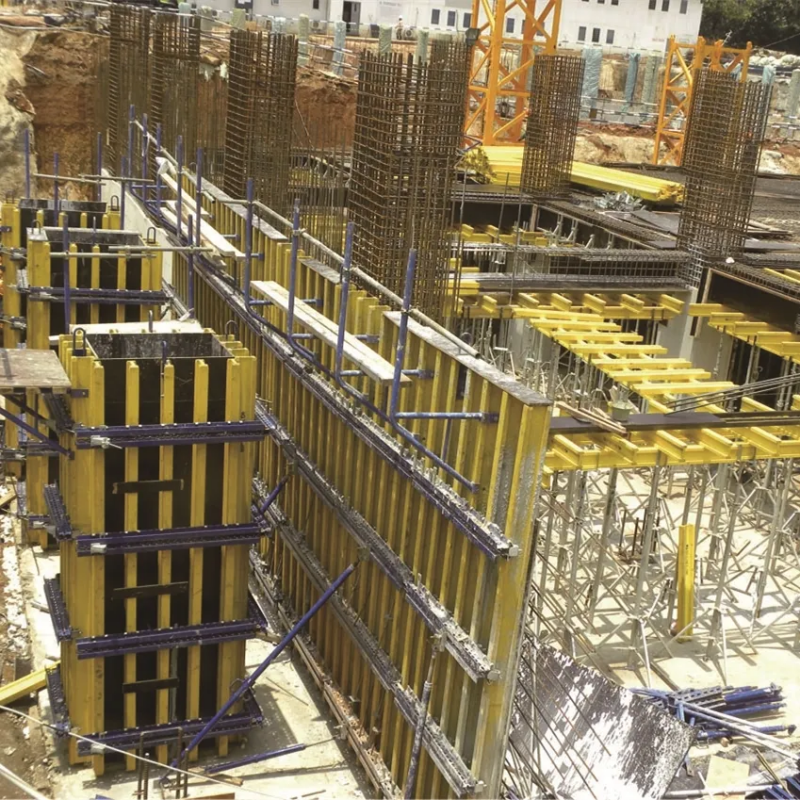

    H20 timber beam003
    H20 timber beam017

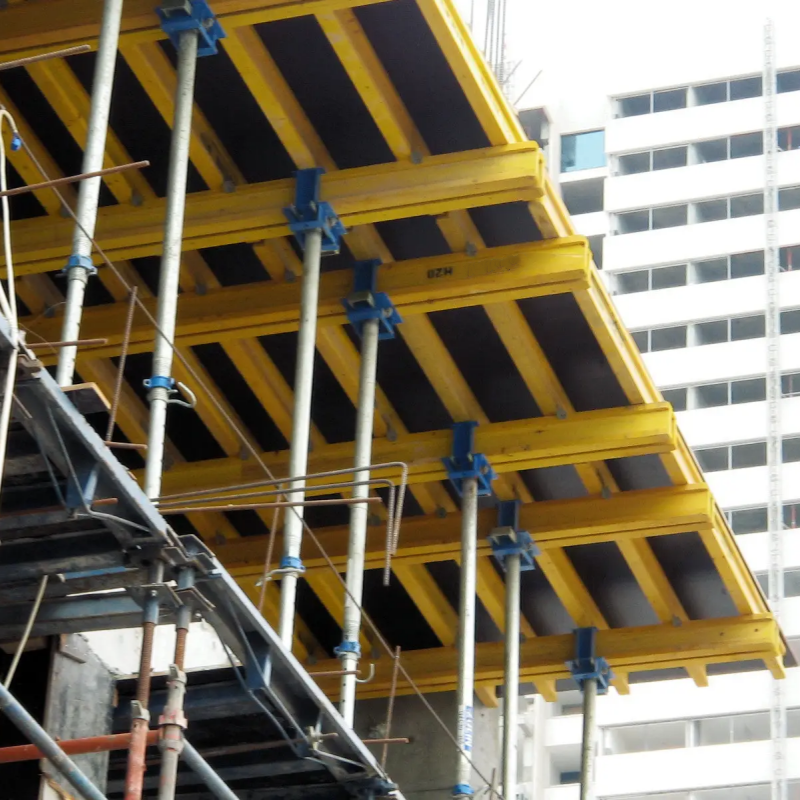

    H20 timber beam009
    H20 timber beam016

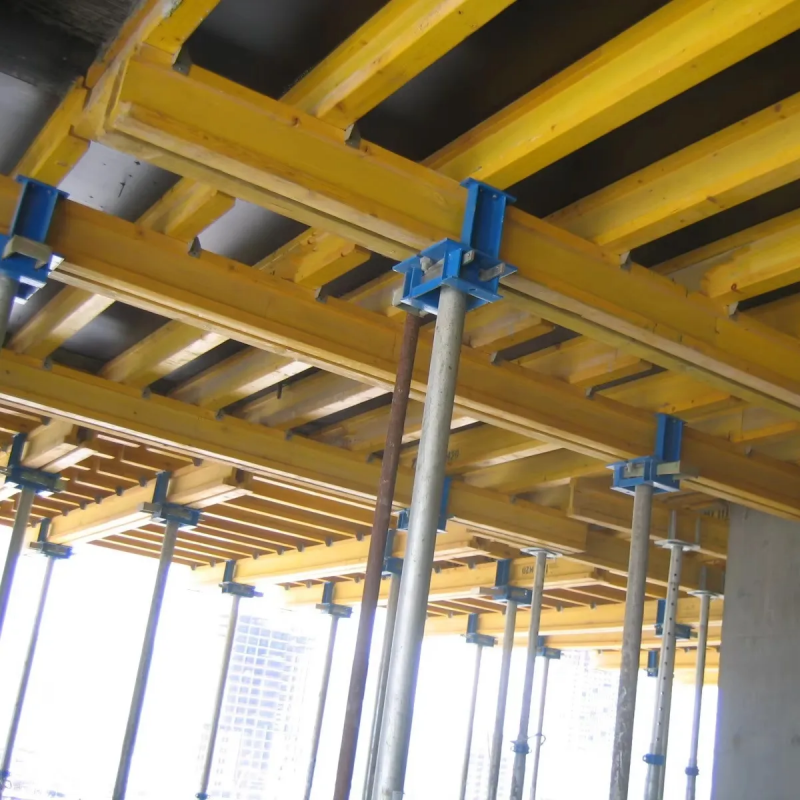

    H20 timber beam008
    H20 timber beam006

    Timber beam is a very important part of formwork system and has been widely applied in construction. Not only used in wall / column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge /Tunnel/ Airport/ Powerplant/ water treatment etc.

    Product Display

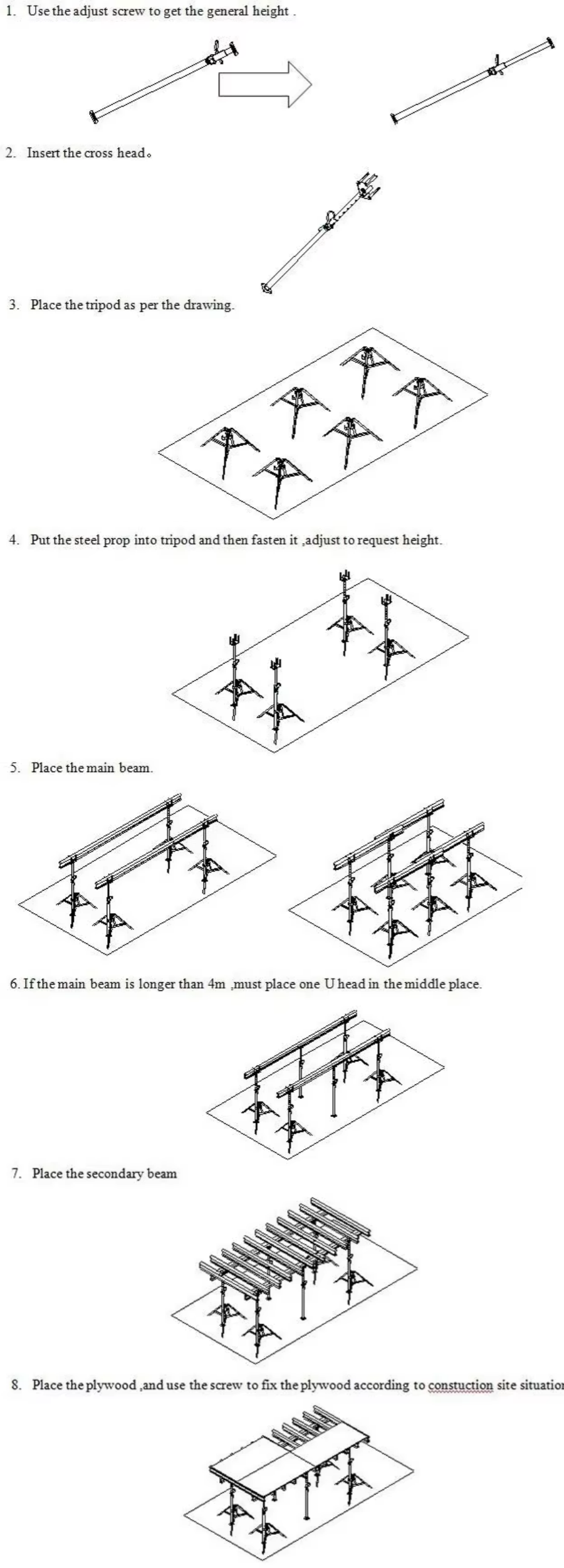

    H20 timber beam005

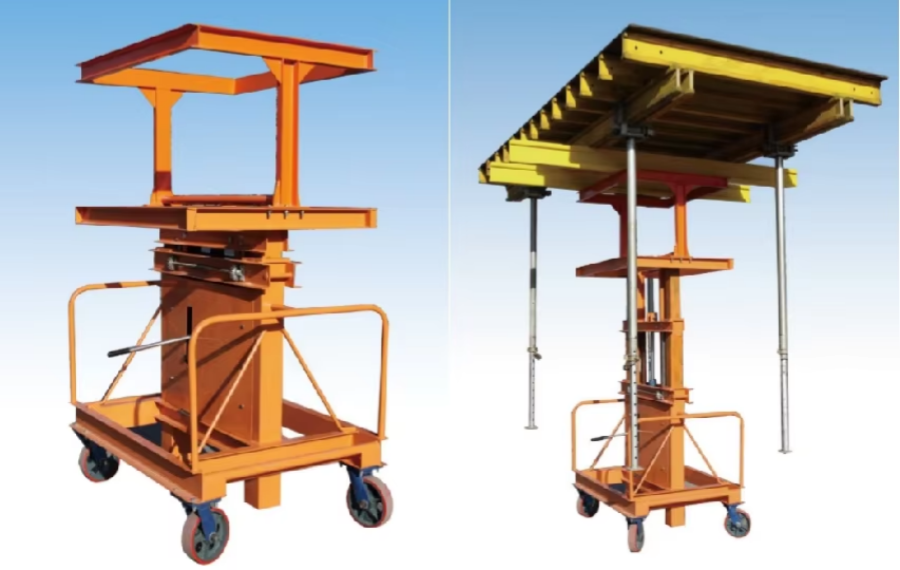

    H20 timber beam014

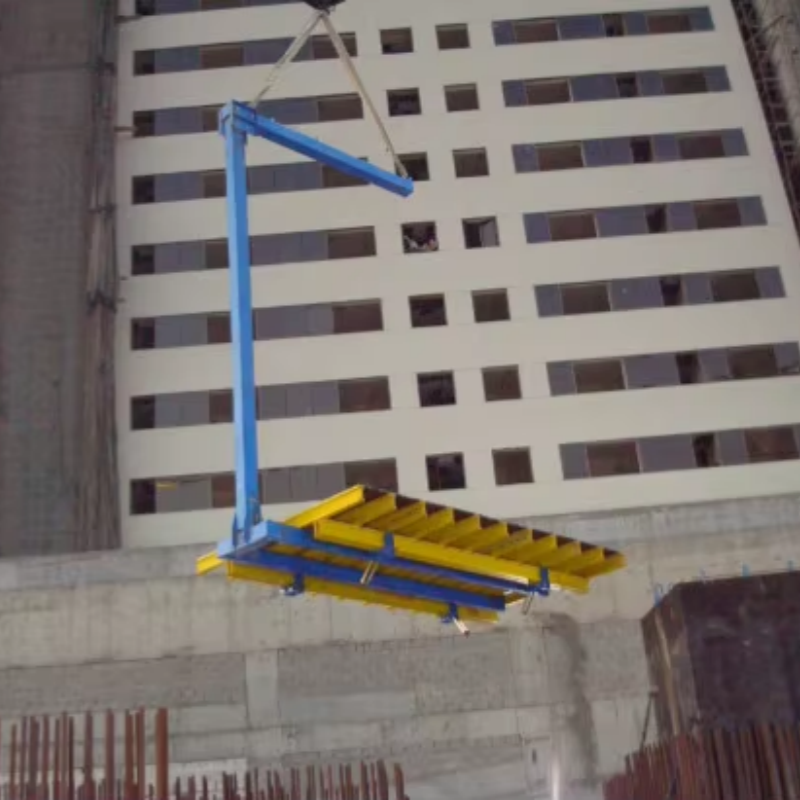

    H20 timber beam015
    H20 timber beam004

    Packing and loading

    H20 timber beam024
    H20 timber beam018

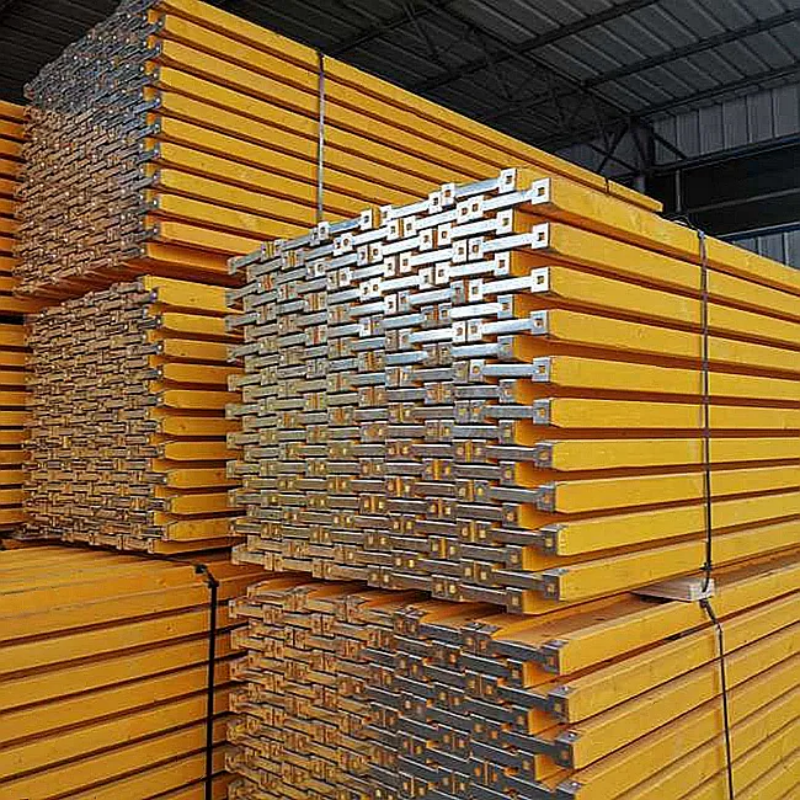

    H20 timber beam022

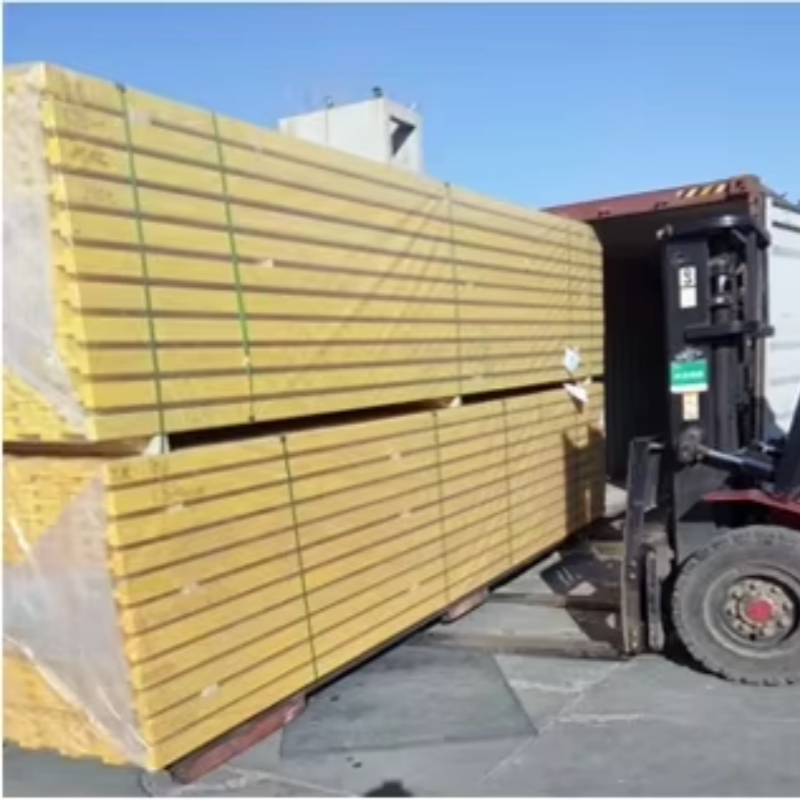

    H20 timber beam044
    H20 timber beam028

    Packing Details : Packing strip, package box, steel pallet, or according to client's request
    Delivery Details : Generally it is 5-30 days, it is according to quantity
    Port : Tianjin

    Our Workshop

    spring clamp020

    Company Profile

    formwork-clamp030
    formwork-clamp029
    formwork clamp026

    FAQ

    1. who are we?
    We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
    4. why should you buy from us not from other suppliers?
    High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
