hot dip galvanized Photovoltaic Engineering Spiral Pile

Short Description:

Place of Origin: Tianjin, China
Color: silver, Black
Brand Name :RAINBOW
Model Number: MG-SP-f76-T3
Diameter: 60MM, 76MM, 114MM
Standard:GB
Product name: Ground Screw Pile
Application:Solar Ground Mounting System
Surface treatment :Hot Dip Galvznized
Size: Customized Sizes
MOQ :1tons
Packing Carton+pallet
Payment Terms30%TT Advance + 70% Balance

Product Detail

Product Tags

Description

Spiral Pile is a robust and sustainable alternative to traditional concrete foundations, removing the need for excavation and concreting. Other applications for the ground screw foundation include signage, timber construction, fencing.

Benefits

The Spiral Pile is an ideal solution for ground mounted renewable energy technology as it provides the following

benefits:
* Suitable for all terrain including sloping hills and soil types
* Significant cost savings through time taken to construct
* No digging, no excavation, no waste, no concrete or wet trades
* Complete construction and foundation solution
* Fast and accurate insertion of ground screw
* Statistically tested and certified by independent testing institutions for load, pull and wind load according to stringent
guidelines
* Easy to install – easy to plan
* Sustainable ground engineering – no sealing or covering of surface or negative impact on landscape
* Durable and long lasting
* Easily removable and reusable.

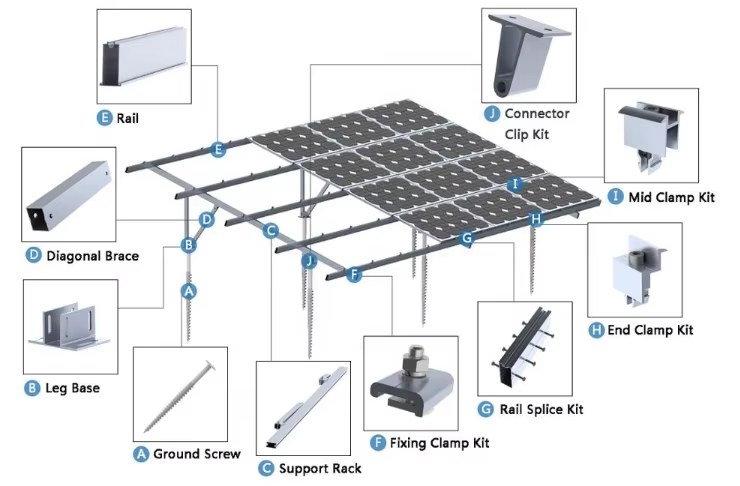

solar ground screw pile 32
NO
Code 1
Surface
Material
H(mm)
D(mm)
Galvanized Surface
Thickness
01
F76xL-2
Hot Galvanized
Q235
Customiazed
76
≥80μm
3.5mm/2.75mm/3.0mm
02
F76xL-4
Customiazed
76
≥80μm
03
F76xL
Customiazed
76
≥80μm
04
N76xL
Customiazed
76
≥80μm
05
F76xL-A
Customiazed
76
≥80μm
06
F76xL-U
Customiazed
76
≥80μm

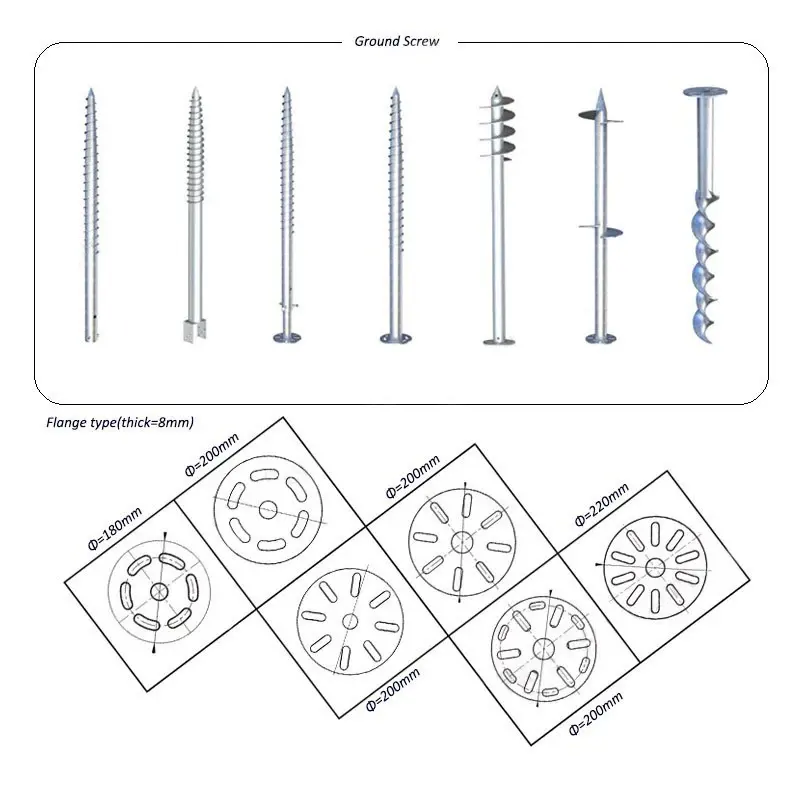

solar ground screw pile 6

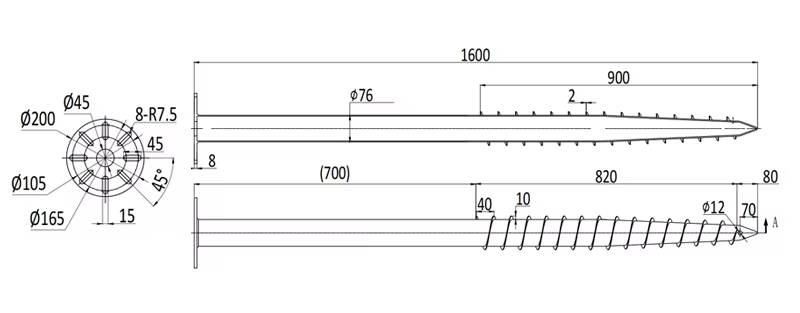

solar ground screw pile 12

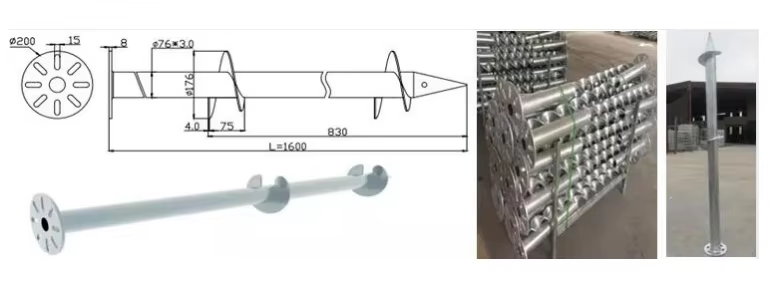

solar ground screw pile 16

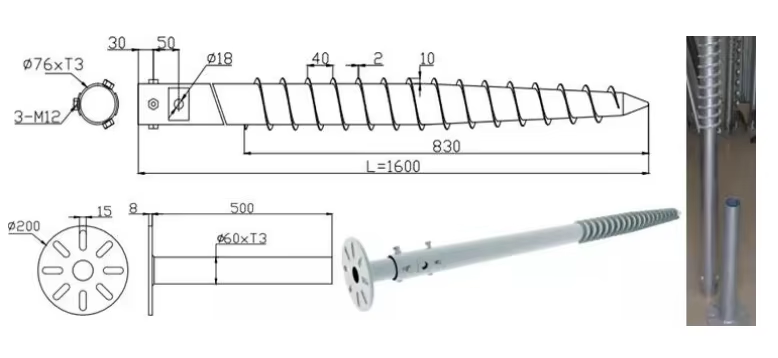

solar ground screw pile 15

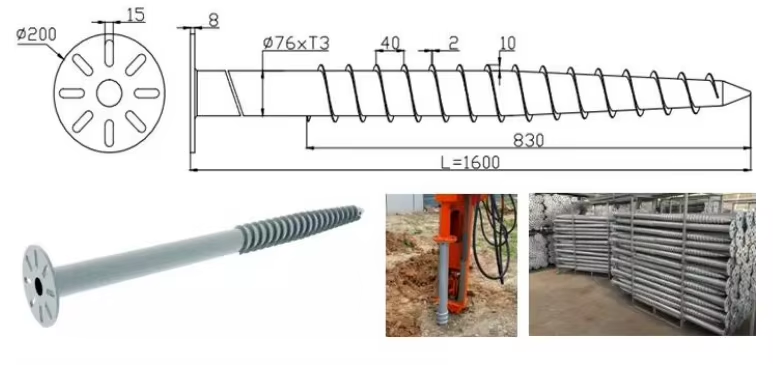

solar ground screw pile 14

Process

solar ground screw pile 17
solar ground screw pile 18
solar ground screw pile 19

Packing&Delivery

solar ground screw pile 22
solar ground screw pile 24

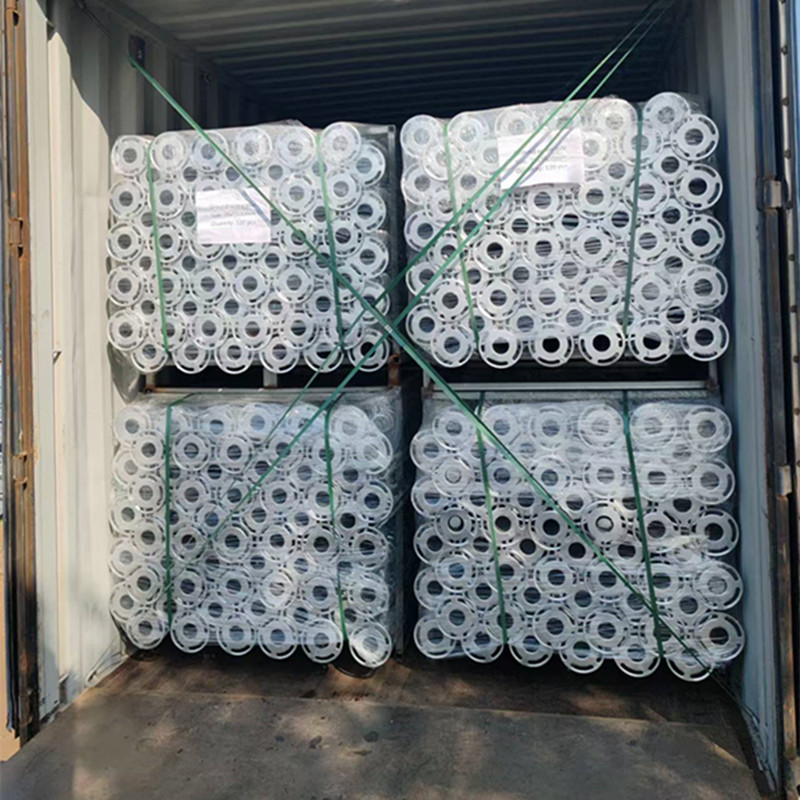

solar ground screw pile 29
solar ground screw pile 30

Inspection

solar ground screw pile 26
solar ground screw pile 25
solar ground screw pile 28
solar ground screw pile 27

Related Products

At the same time, if you want to purchase the most cost-effective PV bracket related products, such as rail, Solar bracket clamp,screw, other accessories, We have our own factory with an area of 150,000 square meters, producing a full range of solar photovoltaic products. For both sample orders and large orders, we can guarantee timely delivery. If you have any needs, welcome to contact us at any time. We look forward to long-term cooperation with you!

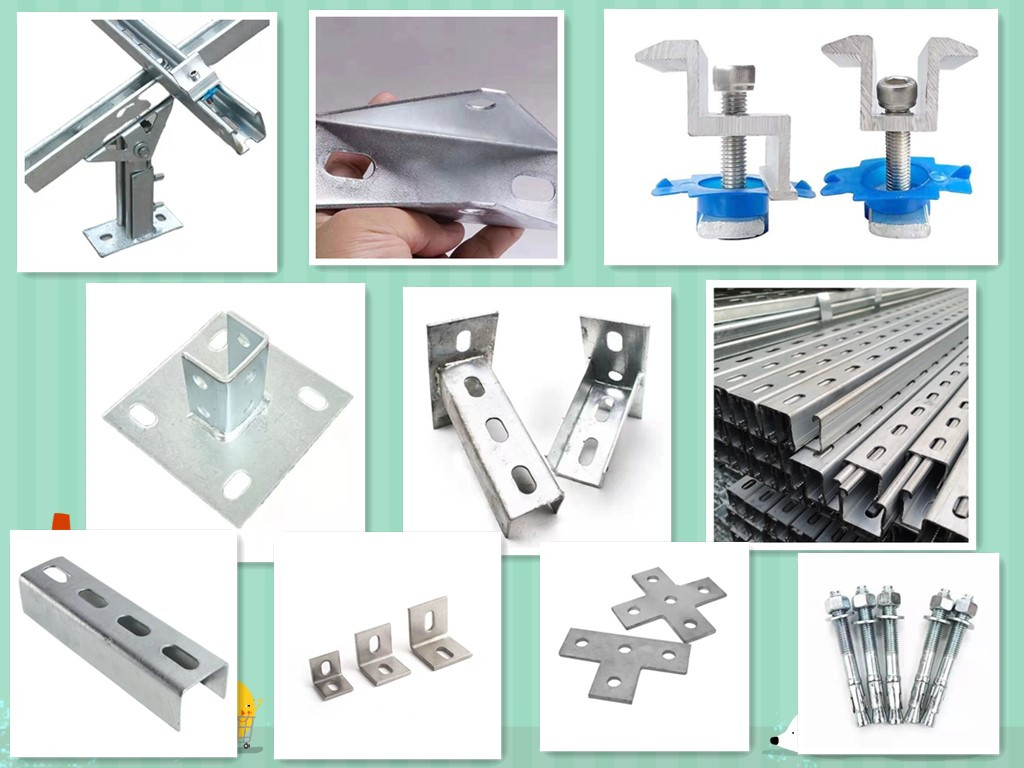

solar related products

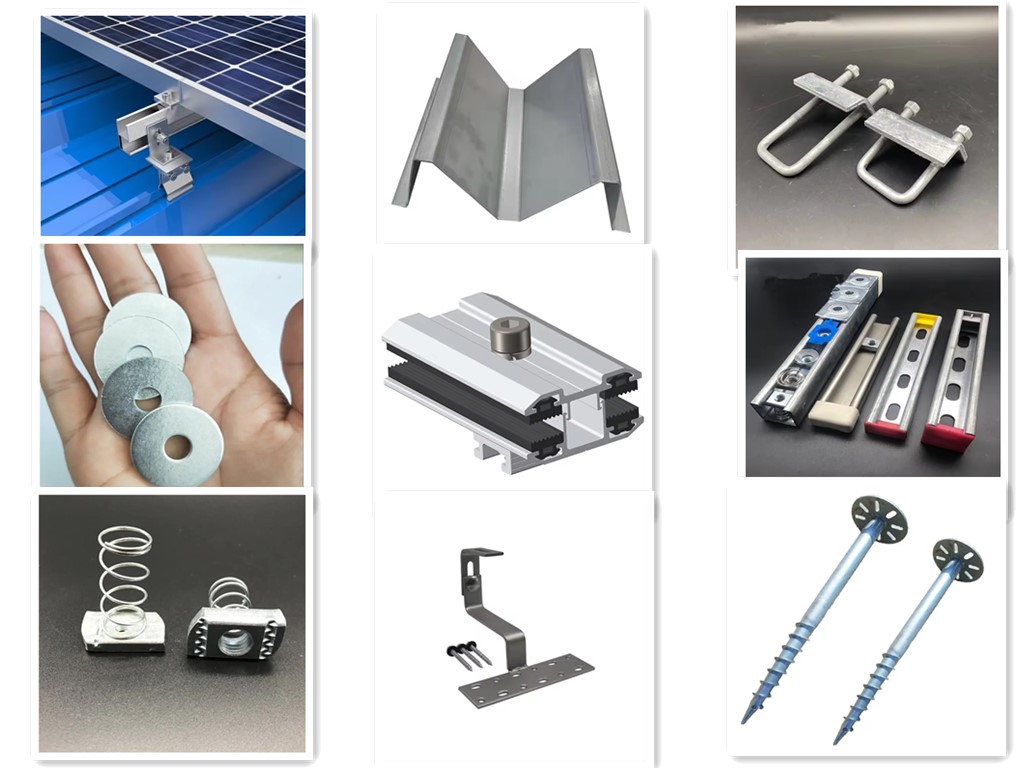

solar related products 3

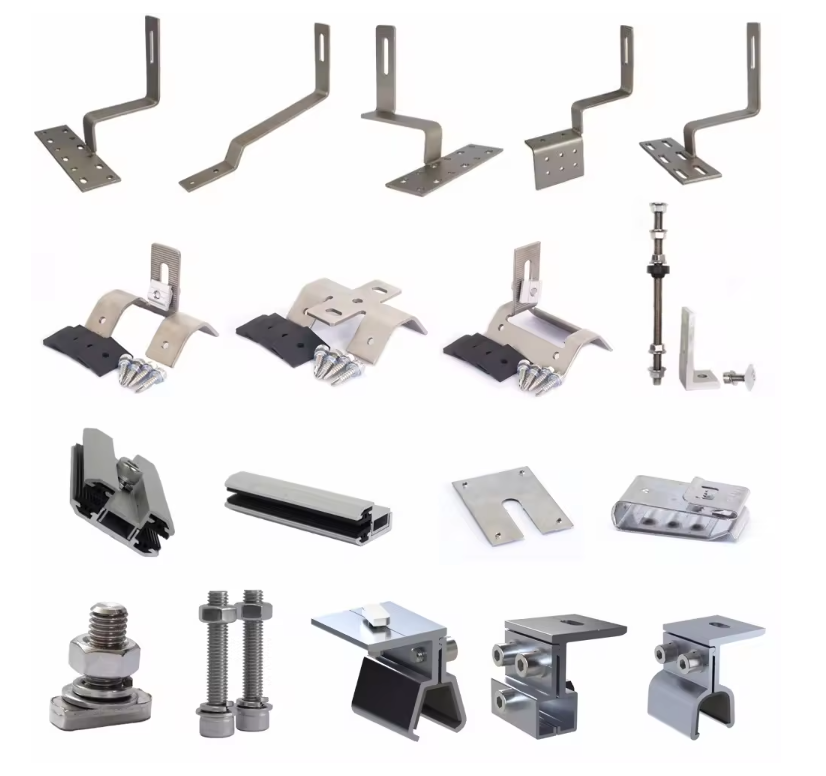

solar related products 2

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer. Our factory is located in Tianjin. You are warmly welcome to visit whenever you are available.
Q: How long is your delivery time?
A: Generally it is about 14 days if the goods are in stock,
or it is 15-21 days if no stock. It is according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance, balance can be made after shipment.
Q: How could I install ?
A: We provide install instruction for every type of products, and we have complete after-sales service system to solve all your problems.
Q: Could you design&produce according to customers’ request?
A: Sure, we have very rich experience in customizing production.We have an excellent design team to offer you professional OEM design service.
