China Hot Dip Galvanized Traditional T Bar steel lintels Manufacture and Factory

Hot Dip Galvanized Traditional T Bar steel lintels

Short Description:

Galvanized T Bar is a type of steel cast into a T shape. Because its section and the English letter “T” the same name.

Send email to us Whatsapp

Product Detail

Product Tags

Product Description:

T Lintel

T-shaped steel is a kind of steel cast into a T-shape. It is named because its cross section is the same as the English letter "T". There are two types of Galvanized T Bar: 1. T-shaped steel is directly split from H-shaped steel. The use standard is the same as that of H-shaped steel (GB/T11263-2017). It is an ideal material to replace double-angle steel welding. It has the advantages of strong bending resistance, simple construction, cost saving and light structure. 2. The T-shaped steel formed by hot rolling is mainly used in machinery and filling small hardware steel.

Product Specification:

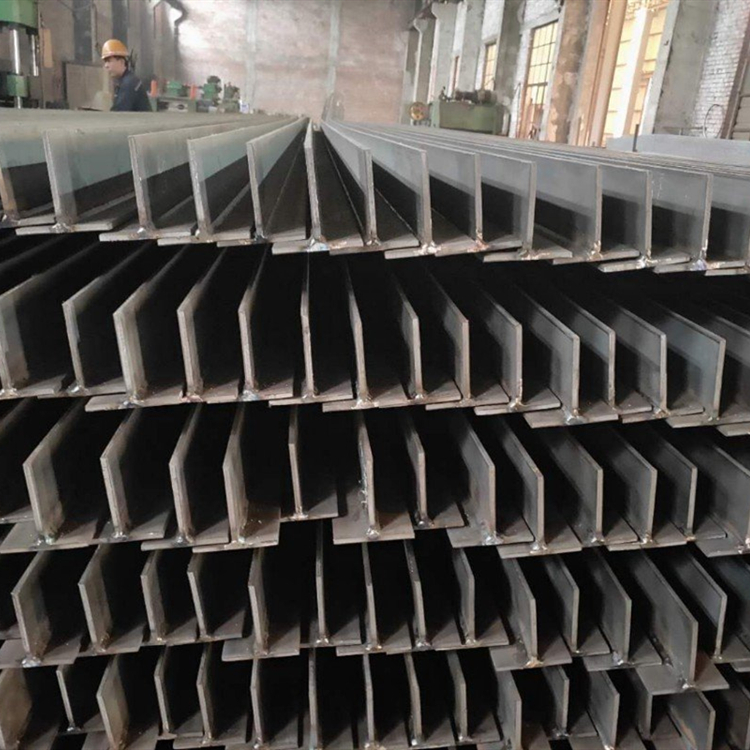

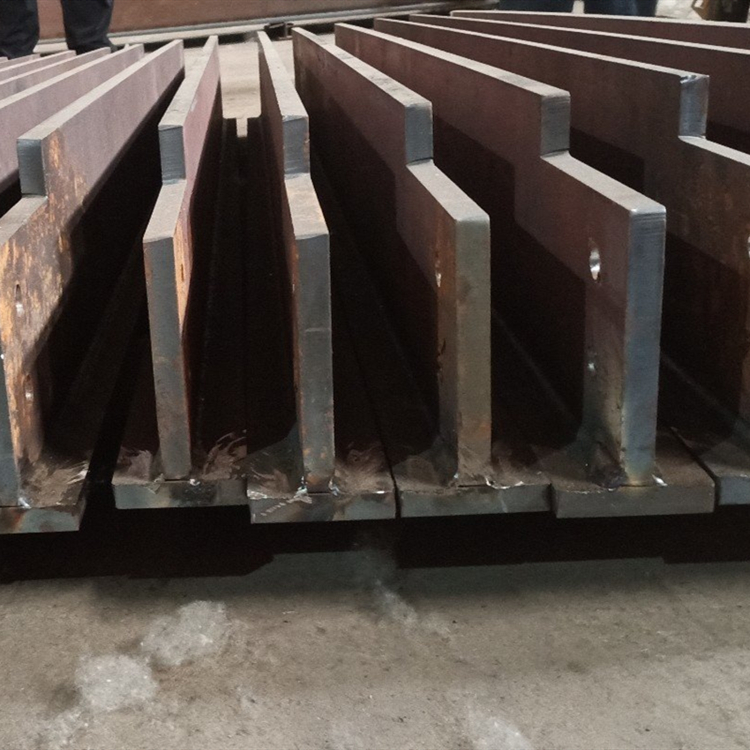

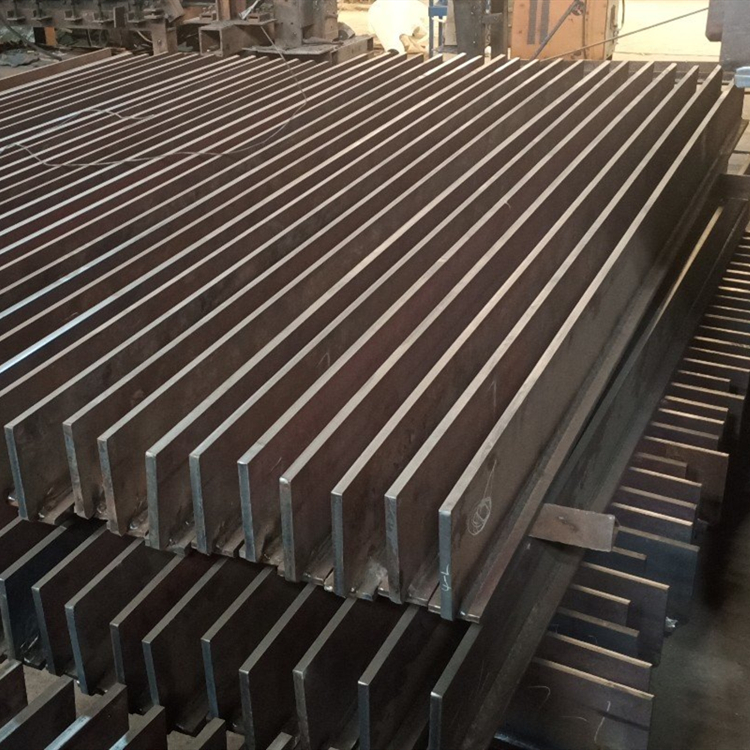

Product Display:

Introduction to T Lintel

It is named because its cross section is the same as the English letter "T". T-shaped steel material: Q235a, Q235b, Q235c, Q235d, Q345a, Q345b, Q345c, Q345d

T-beam classification:

1. Directly split H-shaped steel into T Bar Structural Steel [The use standard is the same as that of H-shaped steel. It is an ideal material to replace double-angle steel welding. It has the advantages of strong bending resistance, simple construction, cost saving and light structure weight]

2. The T-shaped steel formed by hot rolling is mainly used in machinery and filling small hardware steel.

T-shaped steel representation method:

Height H*width B*web thickness t1*wing plate thickness t2

For example, T-beam 200*200*8*12 (Q235B or SS400): It means T-beam with height 200mm, width 200mm, web thickness 8mm, wing thickness 12mm, and its grade is Q235B or SS400.
