IBC Steel Frame Tube DX51D

Short Description:

IBC metal wire mesh / IBC frame tube /IBC cage structure tube


Product Detail

Product Tags

Producs Description:

ibc

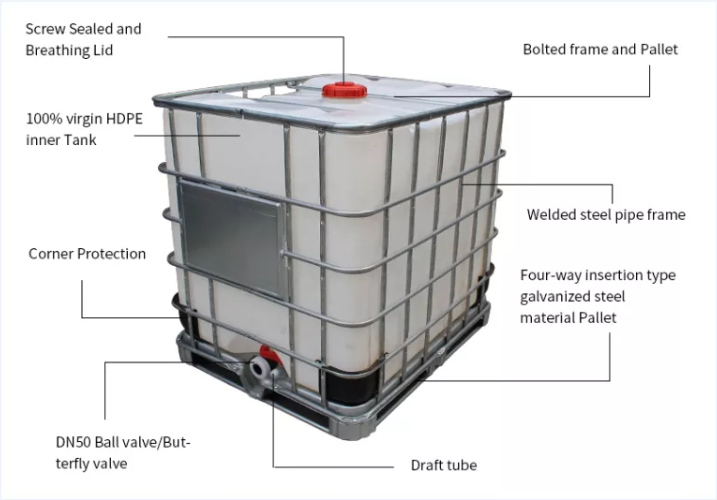

IBC Tons refer to IBC Intermediate Bulk Containers. It is an essential tool for modern storage and transportation of liquid products. The container is composed of an inner container and a metal frame. The inner container is blow-molded with high molecular weight and high density polyethylene, which has high strength, corrosion resistance and good hygiene.

 & Assembly Parts

We welded pre-galvanized steel coil of certain thickness as 0.8 mm or 0.9 mm or 1.0 mm into square section long tubing then cut them into different short lengths according requirement, as varieties welding location requirement.Dry and shinning the surface with light oil to ensure long-term purpose of anti-rust as long as half year even one year,then swaged the ends of long tubing or expend then other end to ensure they can insert each other tightly,meanwhile for vertical lengths tubing,the whole fabricated process are cut them into short certain length and punch tubing body with certain depth caulks,besides flatted the two ends of each piece with nipples for easy welding process .Certainly,with long-term experience almost 20 years, we can make finished tubing we called steel frame joint bars not only by square tubing,we can make them by round tubing,it also depends on the requirement from customer and certainly depends on quantity one time need as one time one shipment more than 20 " container,then almost everything can going very well,whenever touch your heart don't hesitate to contact Tianjin Rainbow Steel.
Commodity
Material Grade
Description
Spec.mm
Length
Weight kg/pc
(IBC PROFILE)

DX51D/120G

Square Vertical Bar 2 star
16*16*0.9mm
5140+/-5mm
2.22
Square Horizental Bar 2 star
16*16*0.9mm
4230+/-5mm
1.83
Horizontal Top Round Tail Bar
18*15*1.2mm
4175+/-5mm
3.24
Round Top Cross Bar
19*1.0mm
4120+/-5mm
1.83
Round Base Ring Tube
19*1.0mm
4120+/-5mm
1.83

Details Images:

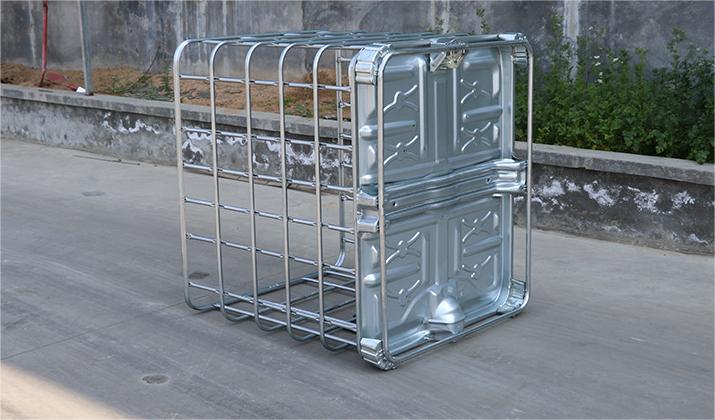

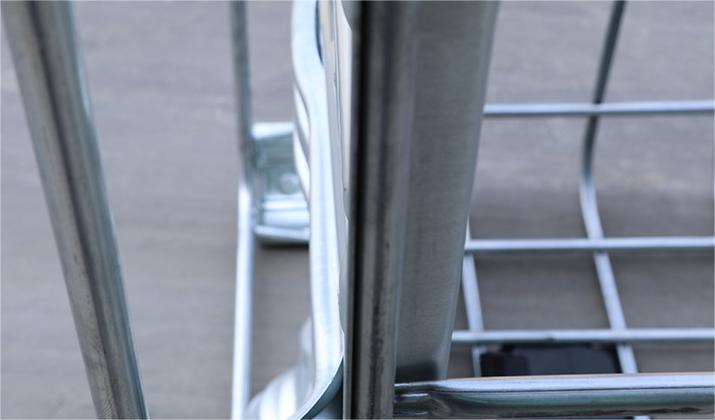

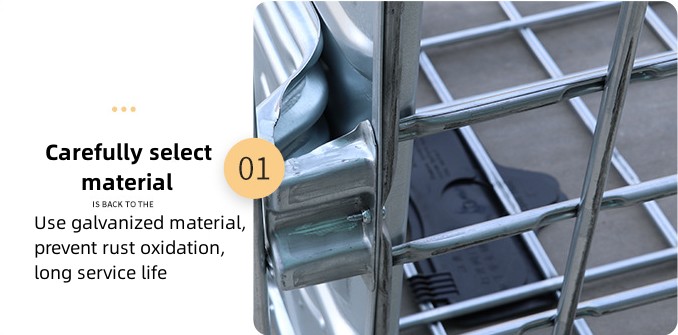

IBC frame
ibc frame
ibc frame

Product Display:

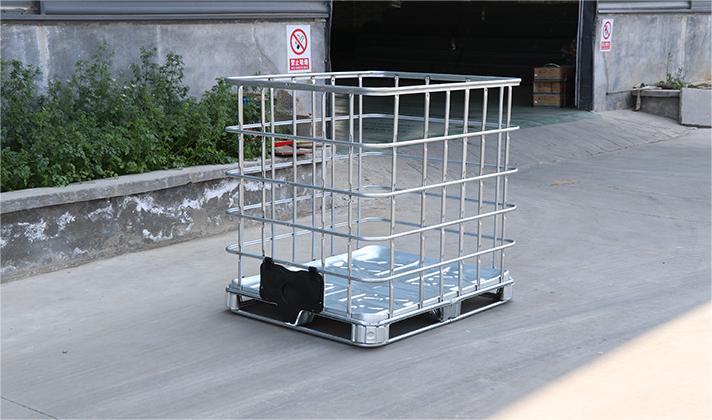

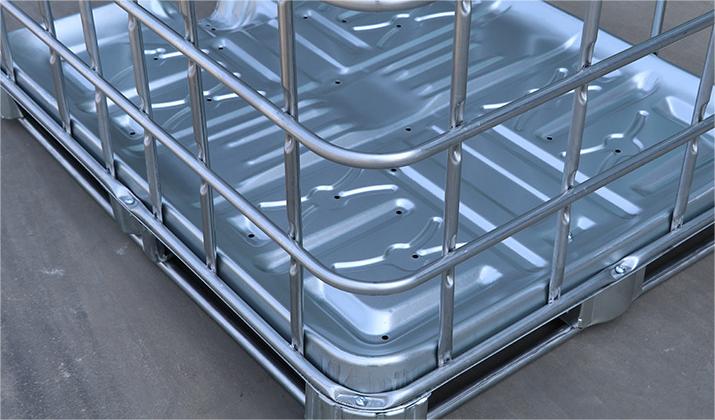

ibc struture1
ibc struture 2
ibc struture 3
ibc struture 4

Product Process:

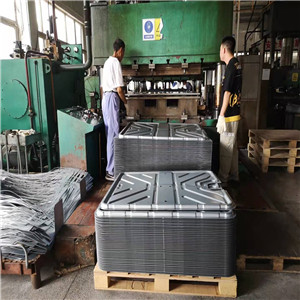

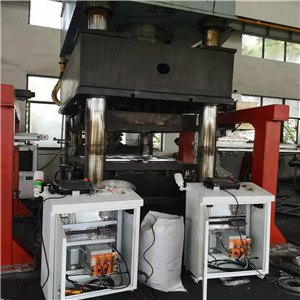

base pressing machine

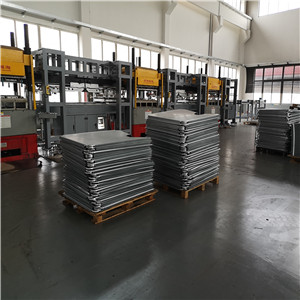

base plate
IBC base plate_
