Multi-type RETAINING WALL FENCE BRACKET

Short Description:

In the pursuit of safety and beauty of outdoor space today, the retaining wall fence bracket is not only the fence of stable soil, but also the art of enhancing the style of the home. Our carefully designed retaining wall fence brackets add a unique touch to your outdoor environment with their excellent stability, elegant design and easy installation process.

FOB Price: US $500-800/ Ton

Min.Order Quantity: 20 Tons

Supply Ability: 20000 Tons per Month

Brand Name: RAINBOW

Surface: Hot dip galvanized

Send email to us Whatsapp

Product Detail

Product Tags

Product Overview:

The retaining wall fence bracket is a kind of auxiliary structure designed for the retaining wall. Through the fixing and supporting of the bracket, it can not only effectively prevent soil erosion and landslide, but also increase the overall stability of the retaining wall. At the same time, the fence part can be used as a safety barrier to protect pedestrians from accidental injury, with both aesthetic and practical functions. Their universal design makes them suitable for both 100mm & 150mm Series Galintel Retaining Wall Posts, providing easy installation when constructing timber and steel fencing on top of retaining walls.

Types:

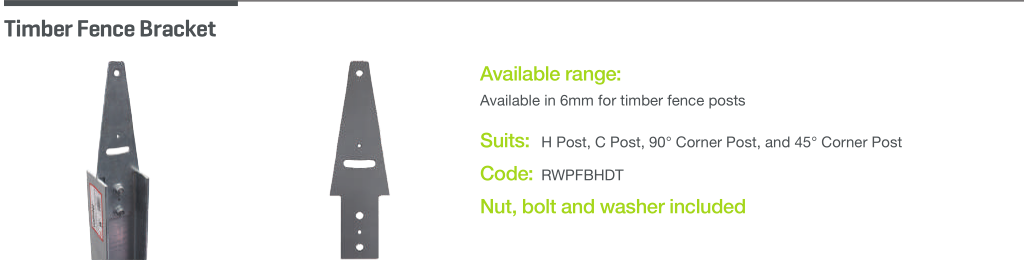

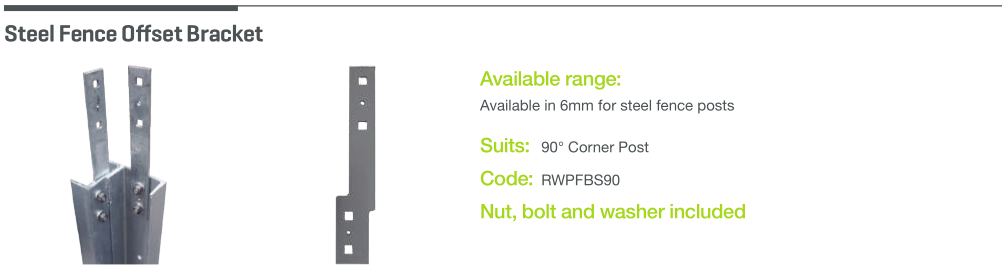

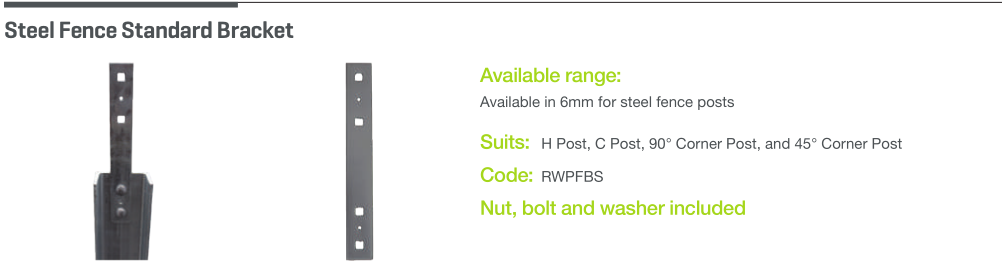

A variety of different types of options to meet the different needs of customers

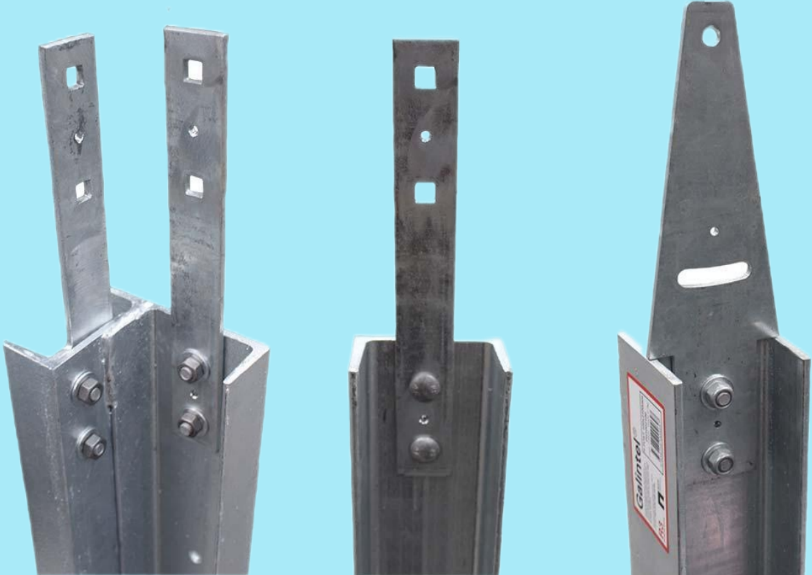

Details display:

【 Product Features 】

Structural stability: The use of high-strength steel or aluminum alloy material, through precision calculation and rigorous testing, to ensure that the structure is stable, can withstand a variety of complex environment pressure and impact.

Beautiful design: Provide a variety of style choices, such as modern simplicity, classical elegance, pastoral style, etc., can be customized according to your outdoor decoration style, improve the overall visual effect.

Safe and durable: The surface adopts advanced anti-corrosion treatment technology, such as hot dip galvanizing, electrostatic spraying, etc., effectively resist wind and rain erosion, extend service life, and ensure long-term safe use.

Easy installation: Modular design, installation process without complex construction, only simple assembly and fixing, greatly saving installation time and cost.

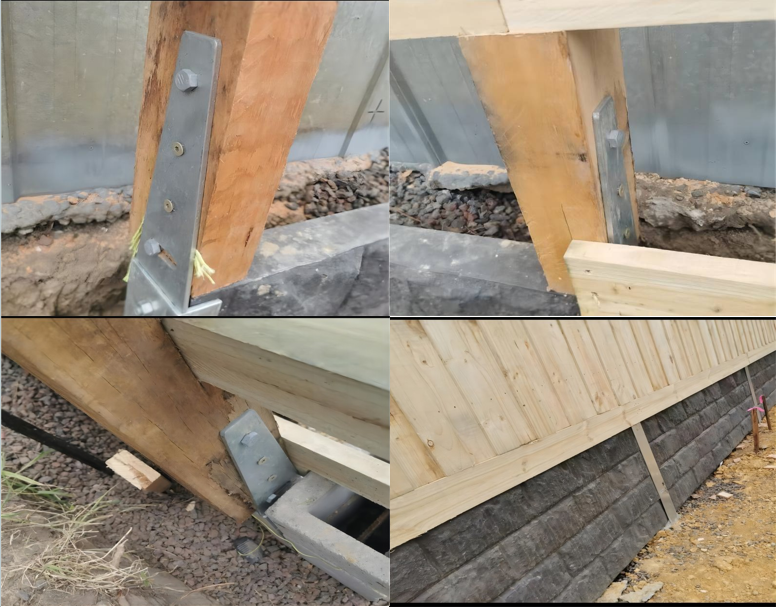

Fence Applications:

Walls must be suitably designed to accommodate additional wind loading imposed on all types of closed fences; for example, increasing the embedment for the posts.

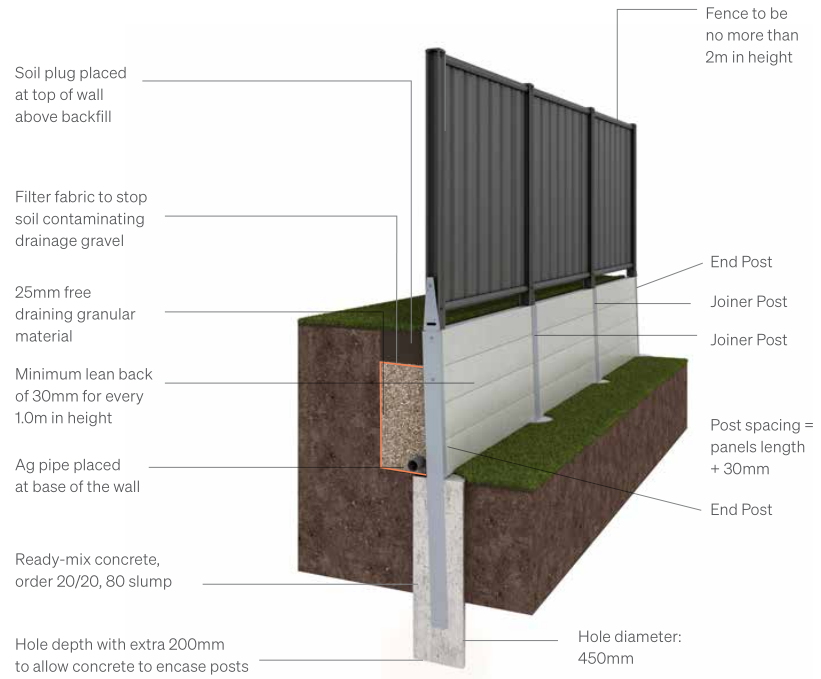

Cross Section Diagram – Fence Application
