Press Swivel Coupler Metal Scaffold Clamps

Short Description:

Fastener type steel tube scaffold, is the most widely used scaffold system in building engineering construction for it’s simple processing, low cost and economy. Except for erection of scaffolding, it can also be used to build derrick, feeding platform and the pier, etc.


  • Material: Q235B
  • Surface treatment: Hot Dip Galvanized/electro Galvanized
  • Packing: Bag
  • Size: OEM Size
  • Application: Building Construction
  • Product Detail

    Product Tags

    company philosophy

    Product Description

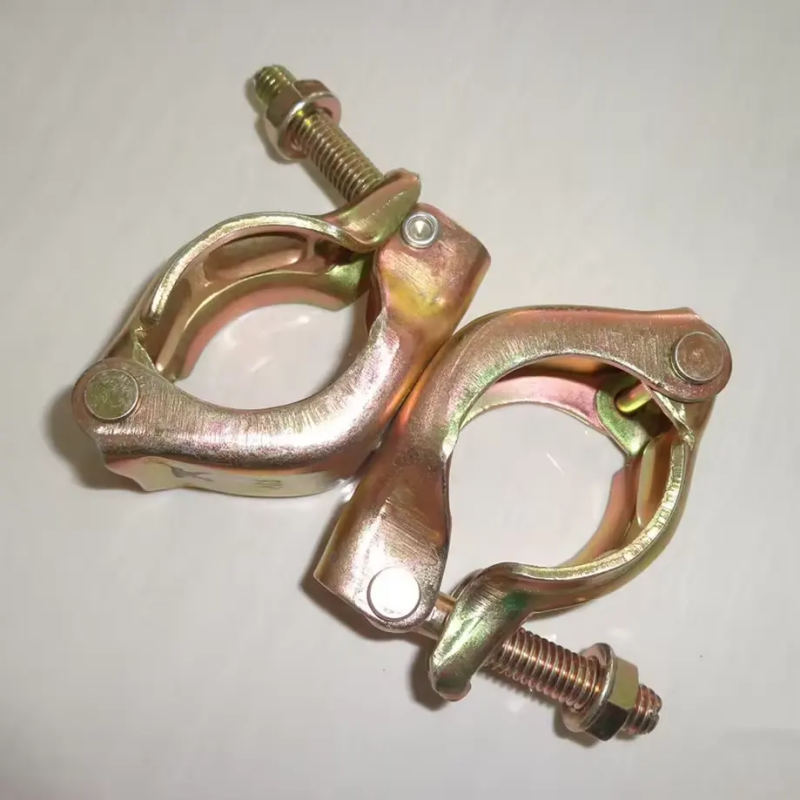

    Swivel Coupler scaffolding004

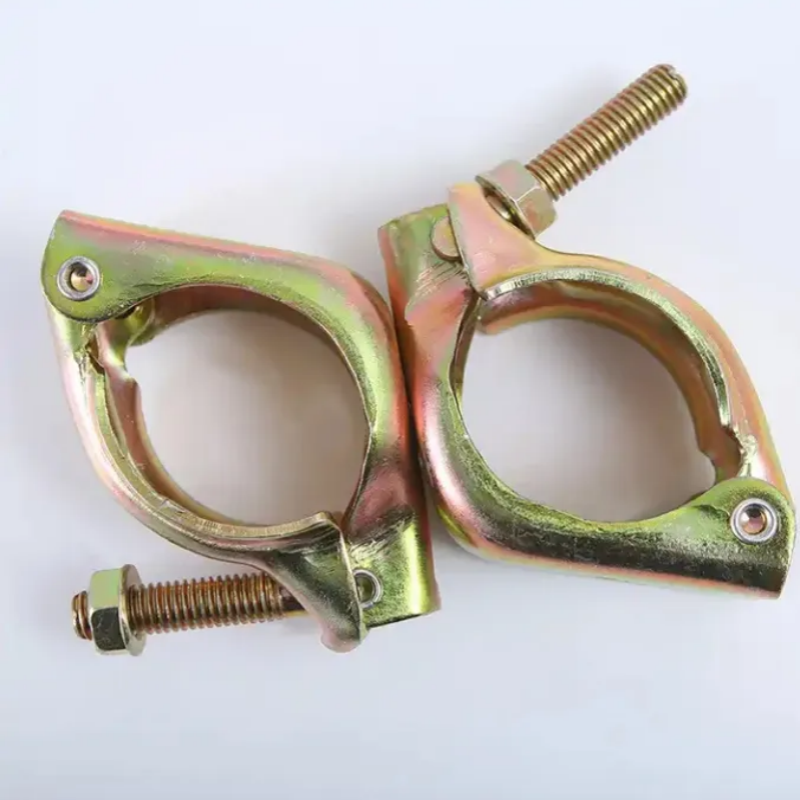

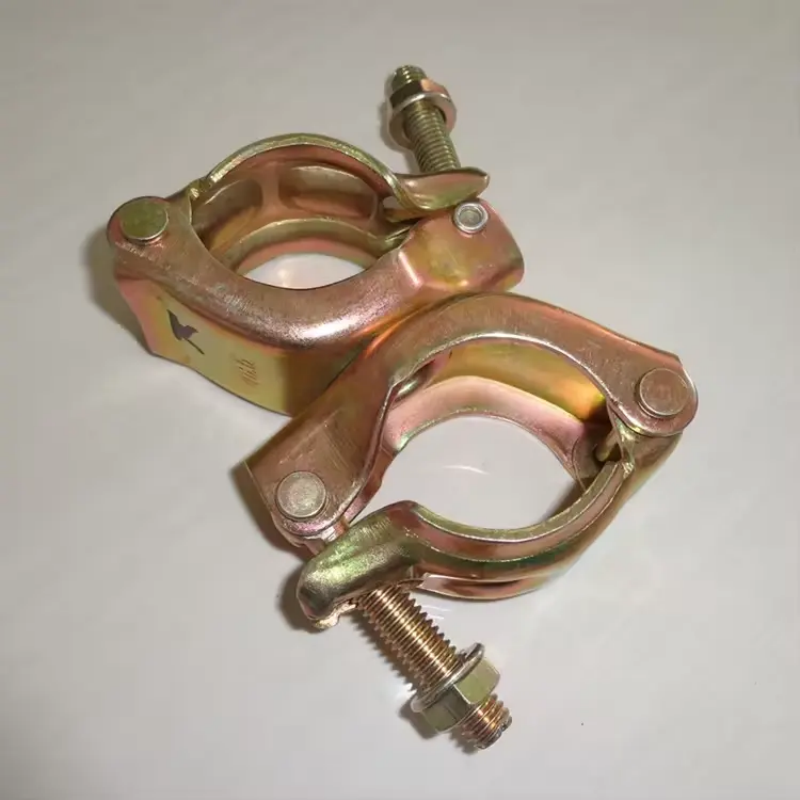

    Swivel Coupler scaffolding003
    Swivel Coupler scaffolding013

    Introducing the Press Swivel Coupler Metal Scaffold Clamps – the ultimate solution for your scaffolding needs. Engineered with precision and built to last, this clamp is designed to provide unparalleled stability and flexibility for your construction projects. Whether you are a professional contractor or a DIY enthusiast, our Swivel Coupler is the perfect tool to ensure safety and efficiency on the job site.

    Key Features:

    1. Superior Strength and Durability:
    Crafted from high-quality forged steel, our Swivel Coupler is built to withstand the toughest conditions. The robust construction ensures that the clamp can handle heavy loads without compromising on safety.

    2. 360-Degree Swivel Capability:
    The unique swivel design allows for a full 360-degree rotation, providing maximum flexibility when connecting scaffolding pipes. This feature is particularly useful in complex scaffolding structures where precise alignment is crucial.

    3. Easy Installation:
    Our Swivel Coupler is designed for quick and easy installation. The user-friendly design ensures that you can set up your scaffolding system in no time, saving you valuable time and effort.

    4. Versatile Application:
    This clamp is compatible with a wide range of pipe sizes, making it a versatile addition to your toolkit. Whether you are working with standard scaffolding pipes or specialized tubing, our Swivel Coupler has got you covered.

    5. Enhanced Safety:
    Safety is our top priority. The Swivel Coupler features a secure locking mechanism that ensures a tight and stable connection between pipes. This reduces the risk of accidents and enhances the overall safety of your scaffolding system.

    Product Specifications:

    - Material:  Steel
    - Finish:Galvanized for corrosion resistance
    - Pipe Compatibility:Suitable for various pipe sizes
    - Weight Capacity:Designed to support heavy loads

    Applications:

    - Construction Sites:Ideal for building and maintaining scaffolding structures.
    - Industrial Maintenance:Perfect for temporary structures in industrial settings.
    - DIY Projects:Great for home improvement projects that require sturdy scaffolding.

     Why Choose Our Swivel Coupler Scaffolding Clamp?

    When it comes to scaffolding, reliability and safety are paramount. Our Swivel Coupler Scaffolding Clamp offers the perfect blend of strength, flexibility, and ease of use. With its superior construction and versatile application, this clamp is an indispensable tool for any scaffolding project.

    Invest in the best. Choose our Swivel Coupler Scaffolding Clamp for your next project and experience the difference in quality and performance.

    Product Specification

    Photo No. Name Size Weight(kg) Packing
    Scaffolding Ladder clamp 1 JIS/KOREN Type Pressed Scaffolding Double Coupler 48.6×48.6mm 0.5-0.65 Carton/Woven Bag with pallet
    Scaffolding Ladder clamp 2 JIS/KOAREN Type Pressed Scaffolding Double Coupler 48.6×48.6mm 0.5-0.65 Carton/Woven Bag with pallet
    Scaffolding Ladder clamp 3 EN47/BS1139 Standard Pressed Britsh type
    Scaffolding Double Coupler
    48.3×48.3mm 0.78-0.82 Woven bag with pallet
    Scaffolding Ladder clamp 4 EN47/BS1139 Standard Pressed Britsh Type Scaffolding Swivel Coupler 48.3×48.3mm 0.98-1.02 Woven bag with pallet
    Scaffolding Ladder clamp 5 EN/47/BS1139 Standard Pressed Britsh Type Scaffolding Sleeve Coupler 48.3×48.3mm 0.98-1.02 Woven bag with pallet
    Scaffolding Ladder clamp 6 EN47/BS1139 Standard Drop Forged Britsh Type Scaffolding Double Coupler 48.3×48.3mm 0.98-1.02 Woven bag with pallet
    Scaffolding Ladder clamp 7 EN47/BS1139 Standard Drop Forged Britsh Type Scaffolding Swivel Coupler 48.3×48.3mm 1.10-1.12 Woven bag with pallet

    Applications

    forged swivel coupler014

    Fastener or Coupler is between steel tube and steel pipe fittings, there are three kinds of the form.

    1.Double Coupler(right-angle fastener/fixed coupler) for two vertical intersecting pipe connection, it depends on the fastener and the friction between the steel pipe to transfer load.

    2.Swivel Coupler(rotating fastener) for two arbitrary Angle intersecting steel pipe connection

    3.Sleeve Coupler(docking fastener) used for steel pipe butt joint two long connection.

    Product Display

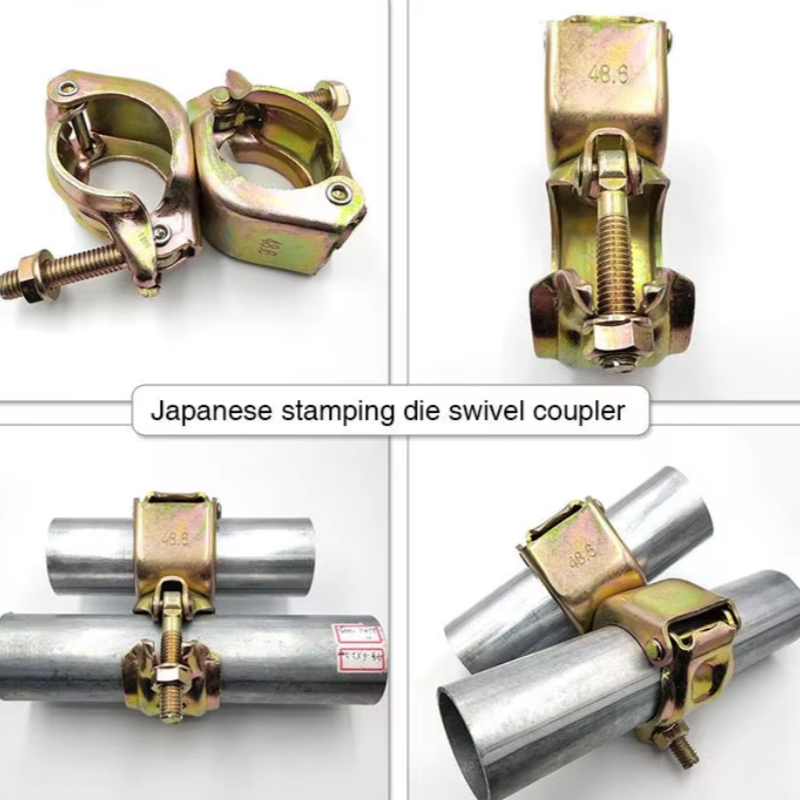

    Swivel Coupler scaffolding006
    Swivel Coupler scaffolding013
    Swivel Coupler scaffolding012

    Advantages

    1.Strong versatility and low cost.

    2.High building height.

    3.Easy and flexible to install.

    4.Strong and durable, turnover more.

    5.Available for outside and internal scaffolding

    Packing and loading

    sleeve Coupler013

    Packaging Details:Box, Pallet or as your need.Usually 30pcs/box.

    Delivery Detail:20 to 30 days after order confirmation.

    The advantage of our goods is good quality and competitive price.

    Our Workshop

    Swivel Coupler scaffolding010

    Company Profile

    formwork-clamp030
    formwork-clamp029
    formwork clamp026
