Professional Manufactory Steel T Lintel Australia market surface hot dipped galvanized Z600gram/sqm 200*10*200*10MM

Professional Manufactory Steel T Lintel Australia market surface hot dipped galvanized Z600gram/sqm 200*10*200*10MM Featured Image
  • Professional Manufactory Steel T Lintel Australia market surface hot dipped galvanized Z600gram/sqm 200*10*200*10MM
  • Professional Manufactory Steel T Lintel Australia market surface hot dipped galvanized Z600gram/sqm 200*10*200*10MM
  • Professional Manufactory Steel T Lintel Australia market surface hot dipped galvanized Z600gram/sqm 200*10*200*10MM

Short Description:

 is a type of steel cast into a T shape. Because its section and the English letter “T” the same name.


Whatsapp

Product Detail

Product Tags

Product Description:

04

Product Display:

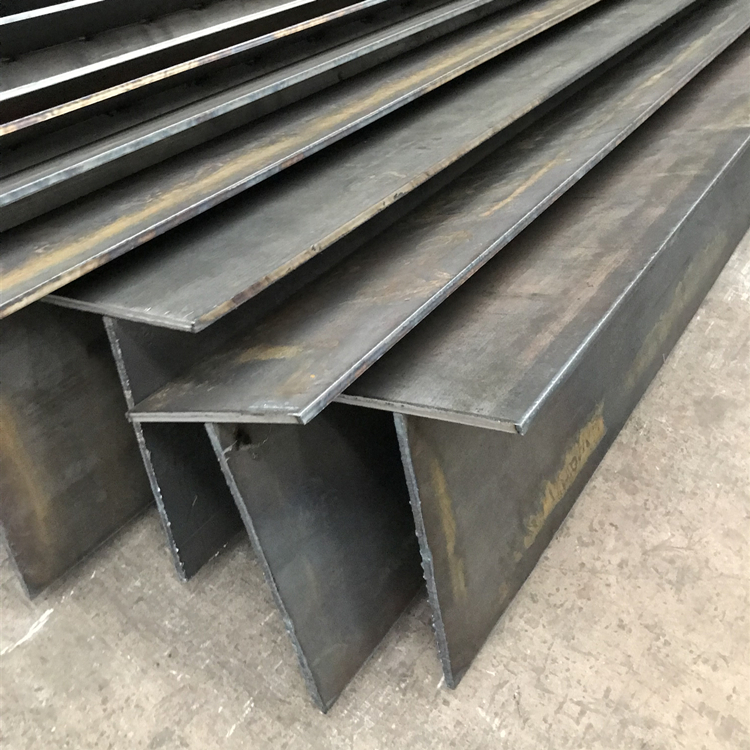

T Lintel (13)

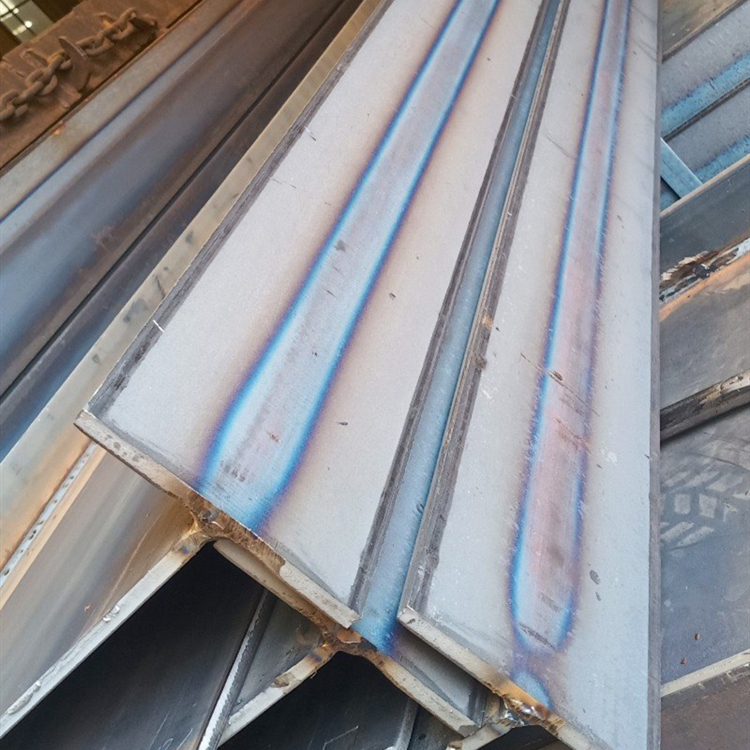

T Lintel (5)

& are widely used in Lintels for civil structure, garage lintels, steel structure construction, industrial plants, civil buildings, Masonry Constructions.

 is made by welding and straightening the hot rolled coil or the middle plate by assembly welding and straightening. Breaking through the hot rolling section. The specification of  can be designed according to the strength required by users. It can fully meet the needs of users in terms of size and length, saving a lot of Steel, which provides a wide range of options for steel structure manufacturing, bridge engineering and shipbuilding industries, is a high-quality profile that replaces double-angle steel structures. Wide range, with great development prospects.



All of our lintel and T bar range include the following features and benefits：

• Hot Dip Galvanized to AS/NZ 4680:2006
• R3 Durability Rating in accordance with AS/NZS 2699:2002
• Load Tested in accordance with AS/NZS 1170.1:2002
• Fully welded and not reliant upon composite action.
• Other T Bar Sizes available. Please contact our sales department for more information.
• Compliant with relevant Building Codes & Standards
• Full product warranty
• Fully engineered
• Labeled & Bar Coded (excludes custom lines)

Product Specification:

We are specialized in Prime steel T bar, Sizes as follow:
Section
Size
Length(m)
kg/Piece
Section
Size
Length(m)
Kg/Piece
T Bar
200*6*200*6
0.9
16.956
T Bar
200*10*200*10
2.1
65.94
T Bar
200*6*200*6
1.2
22.608
T Bar
200*10*200*10
2.4
75.36
T Bar
200*6*200*6
1.5
28.26
T Bar
200*10*200*10
2.7
84.78
T Bar
200*6*200*6
1.8
33.912
T Bar
200*10*200*10
3
94.2
T Bar
200*6*200*6
2.1
39.564
T Bar
200*10*200*10
3.3
103.62
T Bar
200*6*200*6
2.4
45.216
T Bar
200*10*200*10
3.6
113.04
T Bar
200*6*200*6
2.7
50.868
T Bar
200*10*200*10
3.9
122.46
T Bar
200*6*200*6
3
56.52
T Bar
200*10*200*10
4.2
131.88
T Bar
200*6*200*6
3.3
62.172
T Bar
200*10*200*10
4.5
141.3
T Bar
200*6*200*6
3.6
67.824
T Bar
200*10*200*10
5.2
163.28
T Bar
200*8*200*6
0.9
19.8
T Bar
200*10*200*10
5.4
169.56
T Bar
200*8*200*6
1.2
26.4
T Bar
200*10*200*10
5.7
178.98
T Bar
200*8*200*6
1.5
33
T Bar
200*10*200*10
6
188.4
T Bar
200*8*200*6
1.8
39.6
T Bar
250*12*200*10
3.9
153.075
T Bar
200*8*200*6
2.1
46.2
T Bar
250*12*200*10
4.2
164.85
T Bar
200*8*200*6
2.4
52.8
T Bar
250*12*200*10
4.5
176.625
T Bar
200*8*200*6
2.7
59.4
T Bar
250*12*200*10
4.8
188.4
T Bar
200*8*200*6
3
66
T Bar
250*12*200*10
5.1
200.175
T Bar
200*8*200*6
3.3
72.6
T Bar
250*12*200*10
5.4
211.95
T Bar
200*8*200*6
3.6
79.2
T Bar
250*12*200*10
5.7
223.725
T Bar
200*8*200*6
3.9
85.8
T Bar
250*12*200*10
6
235.5
T Bar
250*10*200*6
4.2
121.968
T Bar
250*10*200*10
4.2
148.386
T Bar
250*10*200*6
4.5
130.68
T Bar
250*10*200*10
4.5
158.985
T Bar
250*10*200*6
4.8
139.392
T Bar
250*10*200*10
4.8
169.584
T Bar
250*10*200*6
5.1
148.104
T Bar
250*10*200*10
5.1
180.183
T Bar
250*10*200*6
5.2
151.008
T Bar
250*10*200*10
5.2
183.716
T Bar
250*10*200*6
5.4
156.816
T Bar
250*10*200*10
5.4
190.782
T Bar
250*10*200*6
5.7
165.528
T Bar
250*10*200*10
5.7
201.381
T Bar
250*10*200*6
6
174.24
T Bar
250*10*200*10
6
211.98

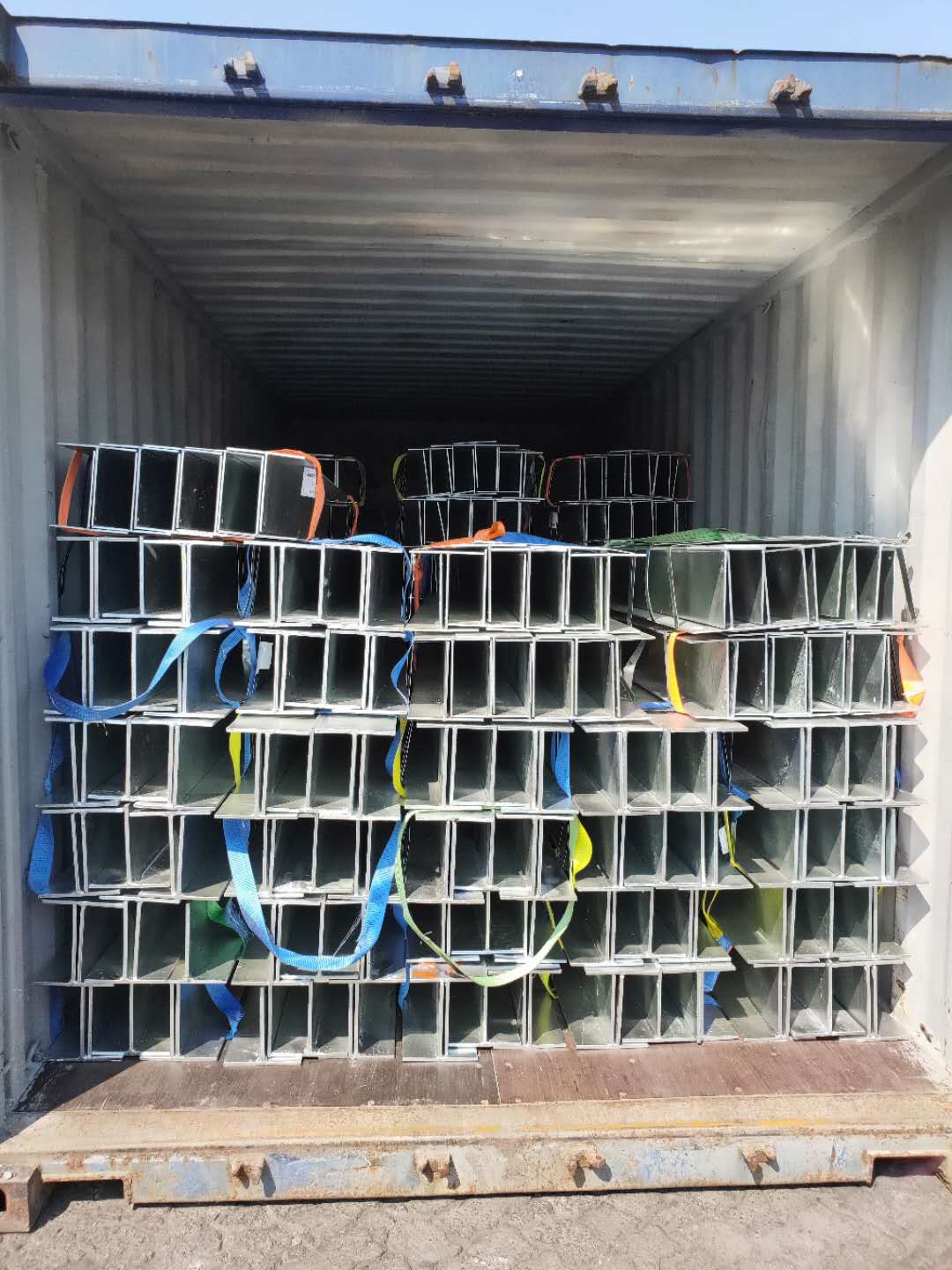

Packing& Loading:

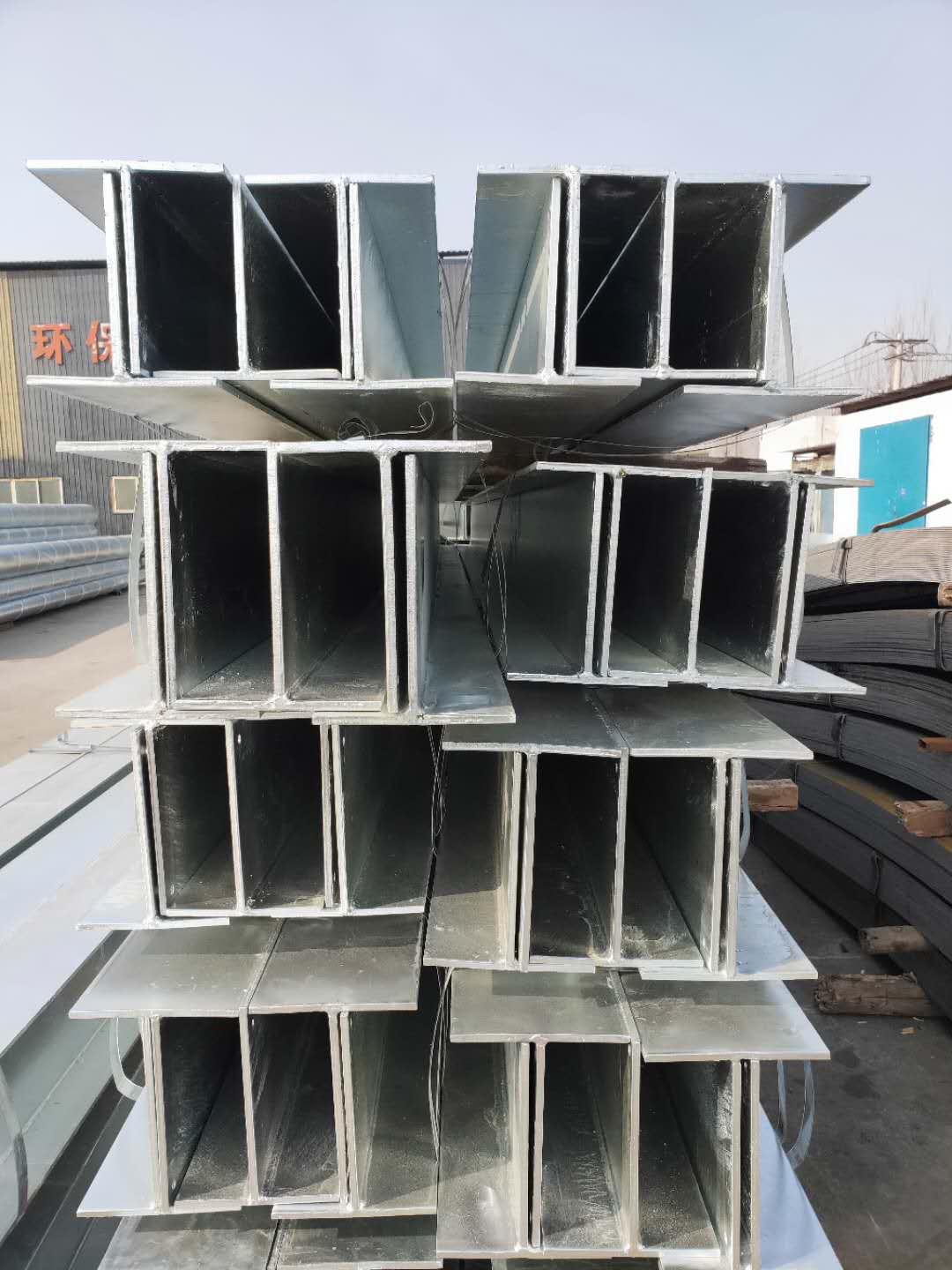

t bar6
T bar5

Company Profile:

tube

Welcome to Tianjin Rainbow Steel. We manufacture steel products or steel structure for the Solar Mounting Steel Structure, Transmission & Distribution Steel Structures (Towers & Poles) , Construction, Industrial, Scaffolding and Greenhouse Construction. Tianjin Rainbow Steel Group was founded in 2000, Located in Tianjin City. After several years of development, Rainbow Steel has developed into an intergrated iron and steel enterprise of galvanized steel pipe, galvanized steel angle bar, galvanized profiles, steel structures, and we are also the biggest electrical transmission steel tower and pole factory in china. our group has our own galvanizing mill, So all the jobs can be galvanized from our own factory. Discover our vast metal product range including Steel Pipes, Iron Angles, Iron Beams, Perforated Steel Products, Welded Steel Structures, Steel Tower&Pole, Exciting projects, extensive industry expertise and high-quality service offering.
