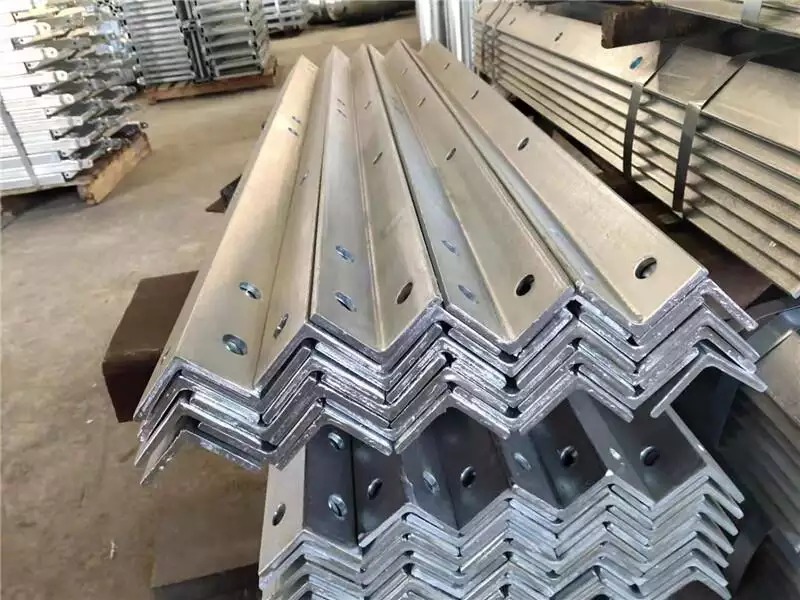

Hot Dip Galvanized Slotted Steel Angle Bar

Hot Dip Galvanized Slotted Steel Angle Bar Featured Image
  • Hot Dip Galvanized Slotted Steel Angle Bar
  • Hot Dip Galvanized Slotted Steel Angle Bar
  • Hot Dip Galvanized Slotted Steel Angle Bar
  • Hot Dip Galvanized Slotted Steel Angle Bar
  • Hot Dip Galvanized Slotted Steel Angle Bar

Short Description:

Hot Diped Galvanized steel angle. Tianjin Rainbow Steel is specialized in the manufacturing steel products. If you have any inquiry, please feel free to contact me .


Whatsapp

Product Detail

Product Tags

Product Description:

steel angle 3
steel angle 2

1. Low treatment cost: The cost of hot dip galvanizing is lower than that of other paint coatings.

2. Durable: Hot-dip galvanized  has the characteristics of surface luster, uniform zinc layer, no leakage, no drip-slip, strong adhesion and strong corrosion resistance. In suburban environment, the standard thickness of hot-dip galvanized rust-proof can be maintained for more than 50 years without repair; in urban or offshore areas, the standard thickness of hot-dip galvanized rust-proof layer can be maintained for 20 years. It doesn’t need to be repaired.

3. Good reliability: The galvanized layer is metallurgical bond with the steel and becomes a part of the steel surface, so the durability of the coating is more reliable.

4. The coating has strong toughness: the galvanized layer forms a special metallurgical structure, which can withstand mechanical damage during transportation and use.

5. Comprehensive protection: Every part of the plated part can be galvanized, even in the depression, sharp corner and hidden place can be fully protected;

6. Time-saving and labor-saving: galvanizing process is faster than other coating construction methods, and can avoid the time required for painting on the site after installation.

Specification: 20*20–250*250
Thickness: 2MM-20MM
length: 6M 9M 12M(cutting to meet your requirement)
Material: carbon steel
Surface treatment: Black and Galvanized
Grade: Q195,Q235,Q345(Chinese standard)
Zinc Thickness: 35~85 micron
Process for reference: Punching

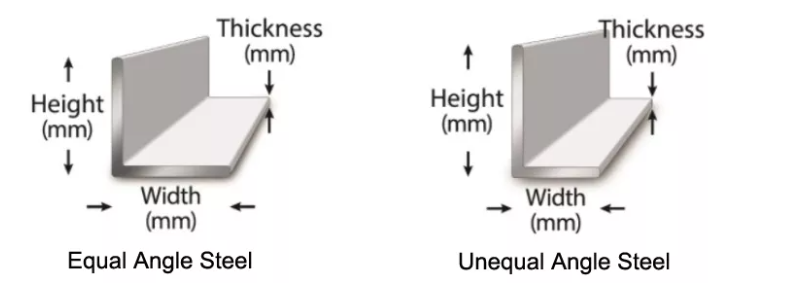

Product Specification:

steel angle 4

Equal
Size(mm) Theoretical Weight
(kg/m)		 Size(mm) Theoretical Weight
(kg/m)		 Size(mm) Theoretical Weight
(kg/m)
25*3 1.124 70*6 6.406 100*16 23.257
25*4 1.459 70*7 7.398 110*8 13.532
30*3 1.373 70*8 8.373 110*10 16.69
30*4 1.786 75*5 5.818 110*12 19.782
40*3 1.852 75*6 6.905 110*14 22.809
40*4 2.422 75*7 7.976 125*8 15.504
40*5 2.967 75*8 9.03 125*10 19.133
50*3 2.332 75*10 11.089 125*12 22.696
50*4 3.059 80*6 7.736 125*14 26.193
50*5 3.77 80*8 9.658 140*10 21.488
50*6 4.465 80*10 11.874 140*12 25.522
60*5 4.57 90*8 10.946 140*14 29.49
60*6 5.42 90*10 13.476 160*12 29.391
63*4 3.907 90*12 15.94 160*14 33.987
63*5 4.822 100*8 12.276 160*16 38.518
63*6 5.721 100*10 15.12 160*18 48.63
63*8 7.7469 100*12 17.898 180*18 48.634
70*5 5.397 100*14 20.611 200*24 71.168



Unequal
Size(mm) Theoretical Weight
(kg/m)		 Size(mm) Theoretical Weight
(kg/m)		 Size(mm) Theoretical Weight
(kg/m)
25*16*3 0.912  75*50*5 5.339 110*70*10 13.476
32*20*3 1.717 75*50*6 4.808 125*80*8 12.551
40*25*3 1.484 70*50*7 5.699 125*80*10 15.474
40*25*4 1.936 75*50*8 7.431 125*80*12 18.33
40*28*3 1.687 80*50*6 5.935 140*90*8 14.16
40*28*4 2.203 90*56*6 6.717 140*90*10 17.475
45*30*4 2.251 90*56*7 7.756 140*90*12 20.724
50*32*3 1.908 90*56*8 8.779 160*100*10 19.872
50*32*4 2.494 100*63*6 7.55 160*100*12 23.592
50*36*3 2.153 100*63*7 8.722 160*100*14 27.247
56*36*4 2.818 100*63*8 9.878 180*110*10 22.273
56*36*5 3.466 100*63*10 12.142 180*110*12 26.464
63*40*4 3.185 100*80*7 9.656 180*110*14 30.589
63*40*5 3.92 100*80*8 10.946 200*125*12 29.761
63*40*6 4.638 100*80*10 13.476 200*125*14 34.436
63*40*7 5.339 110*70*8 10.946

Product Display:

steel angle 8
steel angle 7

Product advantages

 is a carbon structural steel for construction. It is a section steel with a simple section. It is mainly used for metal components and the frame of factory buildings. In use, it requires good weldability, plastic deformation performance and certain mechanical strength. The raw material billets for the production of angle steel are low-carbon square billets, and the finished angle steel is delivered in a hot-rolled, normalized or hot-rolled state.
unequal steel angle
unequal steel angle 1

Description of application effect

Angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding, various building structures and engineering structures, such as building beams, bridges, power transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks, and Warehouse etc.

Packing & Loading :

steel angle 5
steel angle 6

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Are you looking for the perfect steel for your construction project? Look no further because we have a selection of premium steel angles guaranteed to meet your every need.

Made from high quality carbon structural steel, our Angle Bars are specially designed for construction applications. These bars are of simple cross-section and are mainly used for metal parts and frames in workshops.

Our angle steel has excellent welding performance, plastic deformation performance and certain mechanical strength, which is the best choice for various construction projects. Plus, they're made from low-carbon billet, which ensures their durability and strength in any application.

The production process of these angle steel bars needs to be hot rolled, normalized or hot rolled according to the specific requirements to ensure that they maintain their high quality appearance and durability.

We pride ourselves on supplying only the highest quality angle rebar that meets the strictest industry standards. Whether you are looking for iron angles, perforated steel angles or galvanized angles, we have a solution for you.

Our team of professional manufacturers ensures that our steel angle bars meet the required specifications, ensuring strength and reliability for every application. Additionally, our range of angles are available in a wide range of sizes, thicknesses and shapes, ensuring that we cater to the specific needs of our customers.

If you're looking to upgrade your building materials and extend the life of your project, our range of angle steel rods should be your first choice. Your satisfaction is our top priority, we guarantee the best product quality and durability, making sure our Angle Steel is your first choice in every application.

So don't hesitate! Choose from our range of angle steel rods for your construction projects, manufactured by the best galvanized angle steel manufacturers in the market. Let us take your construction project to the next level with premium steel angles.
