Iron Casting Three Wing Anchor Nut for Concrete Formwork Tie Rod System

Short Description:

Formwork Tie Rod Nut is a kind of important accessories in pouring shear wall project. Together with the Tie Rod, they act as wall tie system, to fasten the formwork panels tightly during concrete pouring process. They can also be used in other applications for fastening purpose.We manufacture all types of Tie rod nut with super good quality !



Use: formwork tie rod fixing and fastening

Types: 2 claws / 3 claws

Material: Cast iron QT450

Surface Treatment: Raw material black / Electro galvanized in silver or yellow color

Size: for D12 / 15 / 17 mm diameter tie rod

Base Plate: 70 / 80 / 90 / 95 / 100mm Diameter

Weight: 0.41/0.45/0.62kg etc.

Work Load: 180KN

Packing: Small woven bag + pallet or small woven bag + big bag

Advantage: Support customized design (logo and mark emboss on product) and all strength test


Product Detail

Product Tags

Product Specification

Product Type
Formwork fasteners
Product name
Formwork tie rod anchor wing nut
Material
Cast Iron QT450-10
Surface treatment
Electro Galvanized,black
Size
70 / 80 / 90 / 95 / 100mm Diameter
Diameter
D12 / 15 / 17 mm diameter
Weight
0.41/0.45/0.62kg etc
MOQ
5000pcs
Packing
Small woven bag + pallet or small woven bag + big bag
Work Load 180KN

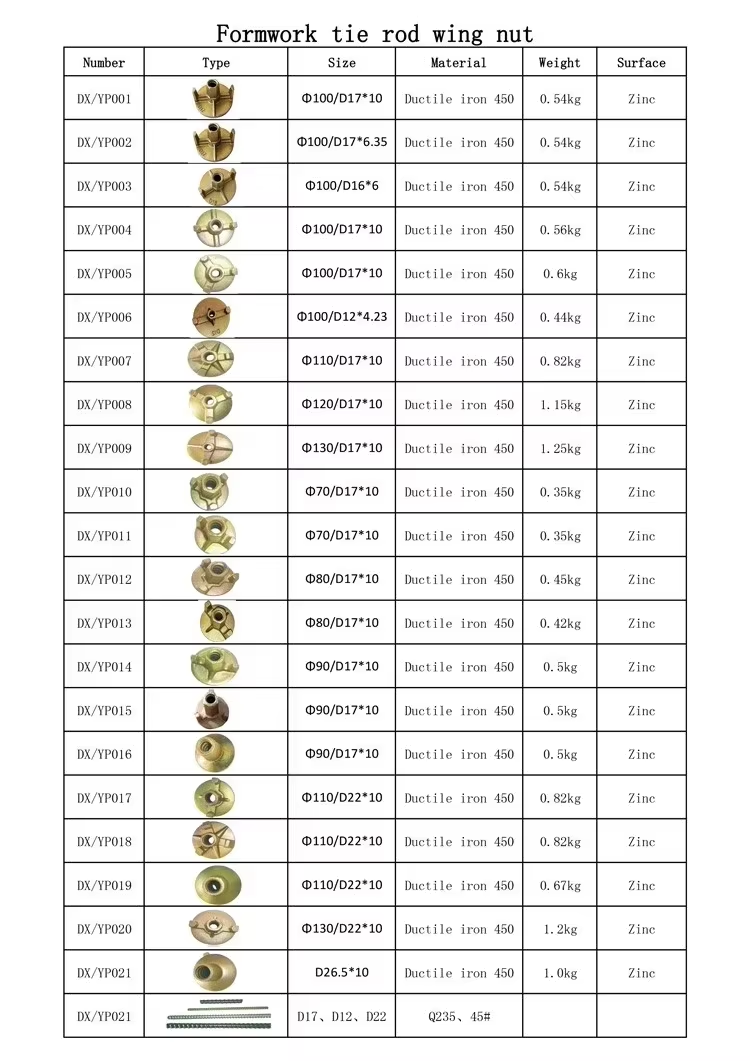

tie rod casting nut

Applications

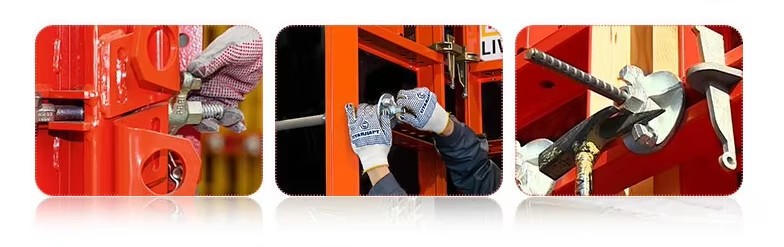

formwork clamps

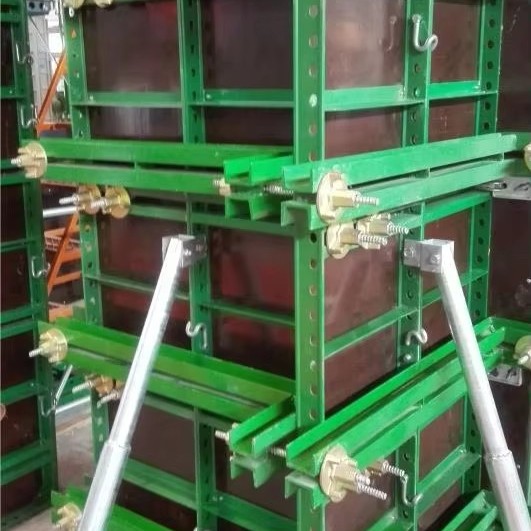

tie rod system wing nut

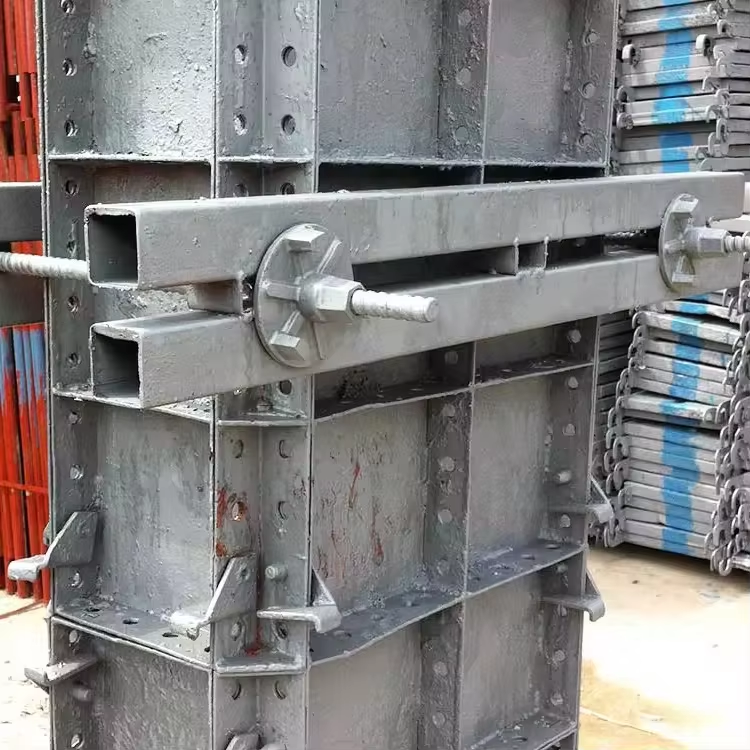

tie rod system nut

Product Display

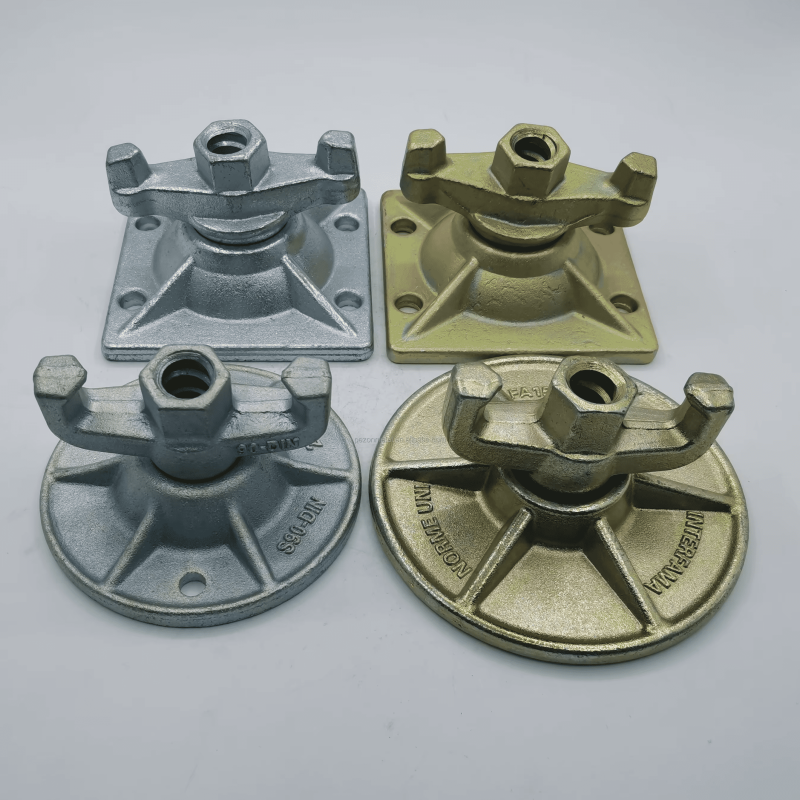

swivel wing nut012
swivel wing nut003

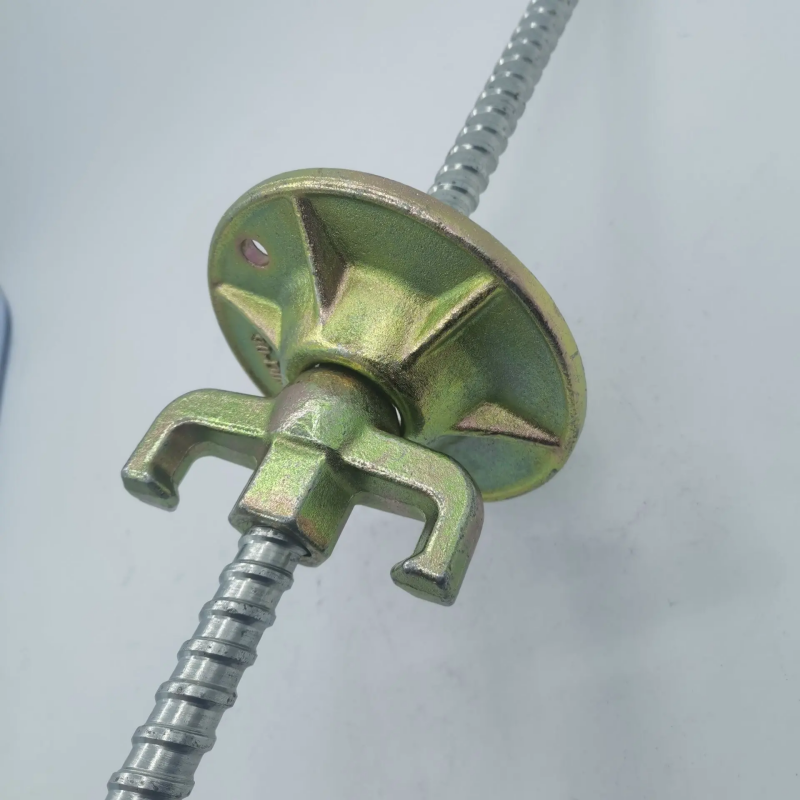

swivel wing nut008

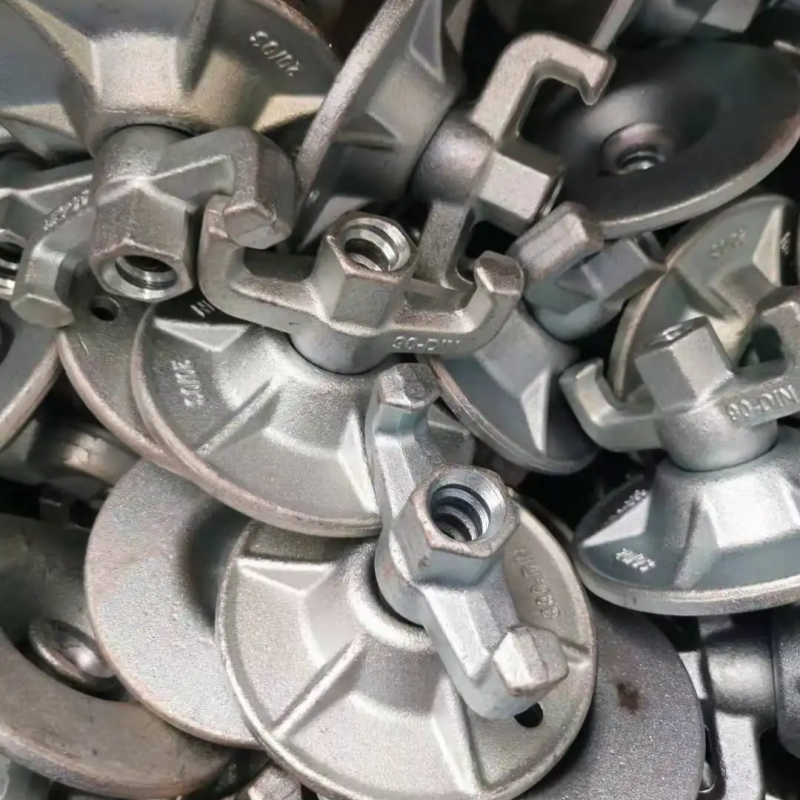

swivel wing nut010

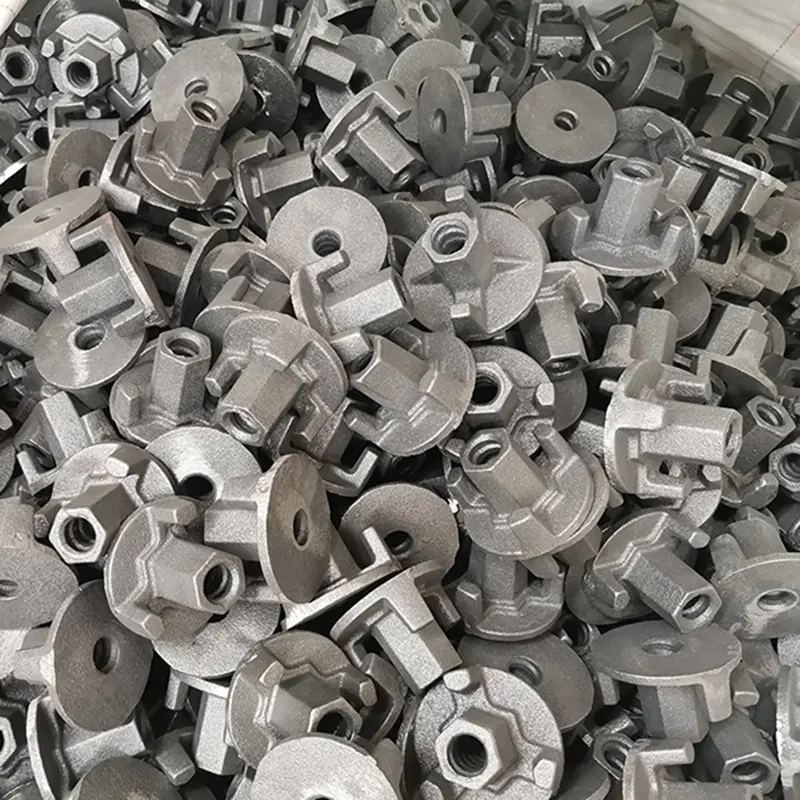

Formwork Tie Rod006

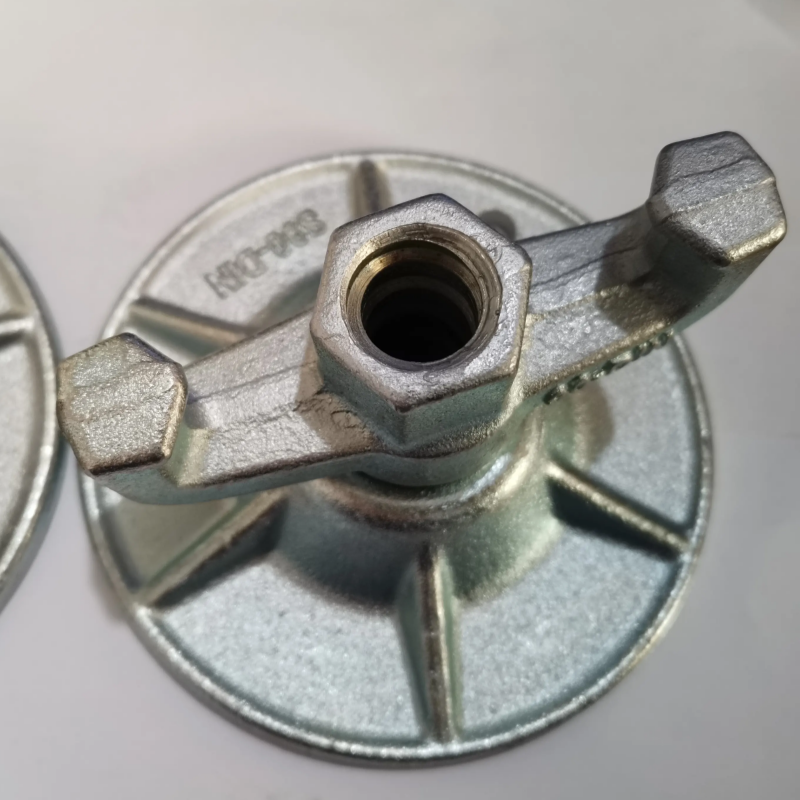

swivel wing nut018

Product Features

The Formwork Tie Rod System Anchor Wing Nut is widely considered ideal to use in different domains for fastening applications. This range of nuts is precisely manufactured by making use of finest quality materials like cast iron, carbon steel and mild steel. These nuts are widely treasured in this domain for their easy tightening and loosening applicability. It is to be used to fix or fasten the formwork tie rod system together with water stopper nut, tie rod, other wing nut and cone but etc.

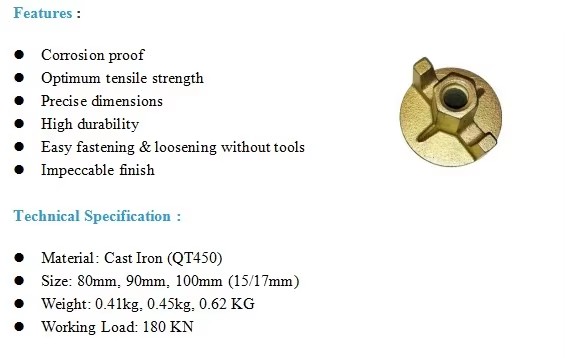

formwork tie rod

Production Process

Packaging & Delivery

tie rod nut packaging
formwork clamp020

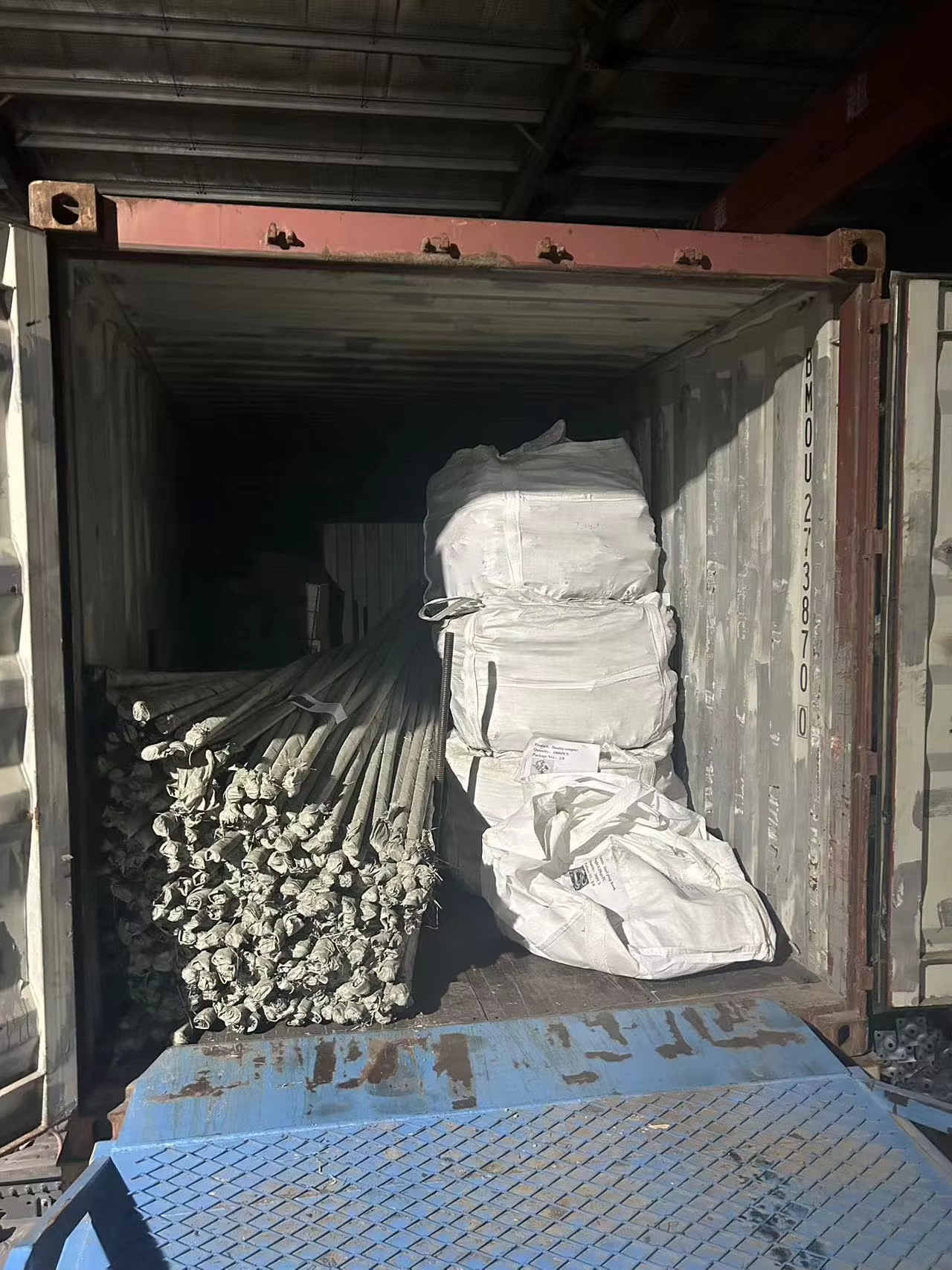

tie rod casting nut QT450
formwork clamp021

Related Products



Tianjin Rainbow Steel has been in the field of formwork and scaffolding system for construction for more than 10 years, dedicated to supply of formwork supporting system like steel prop and tripod stand as well as fixing accessories like steel formwork clamps or tie rod systems, as well as frame scaffolding, ringlock scaffolding, cuplock scaffolding and their accessories like planks, couplers and screw jack base etc.
At present we are exporting to 23 countries around the world, with our good quality, timely delivery, competitive rates and outstanding service, we look forward to expand more worldwide business and hope together with your support and cooperation, we will create a bright future!
formwork accessories
steel prop

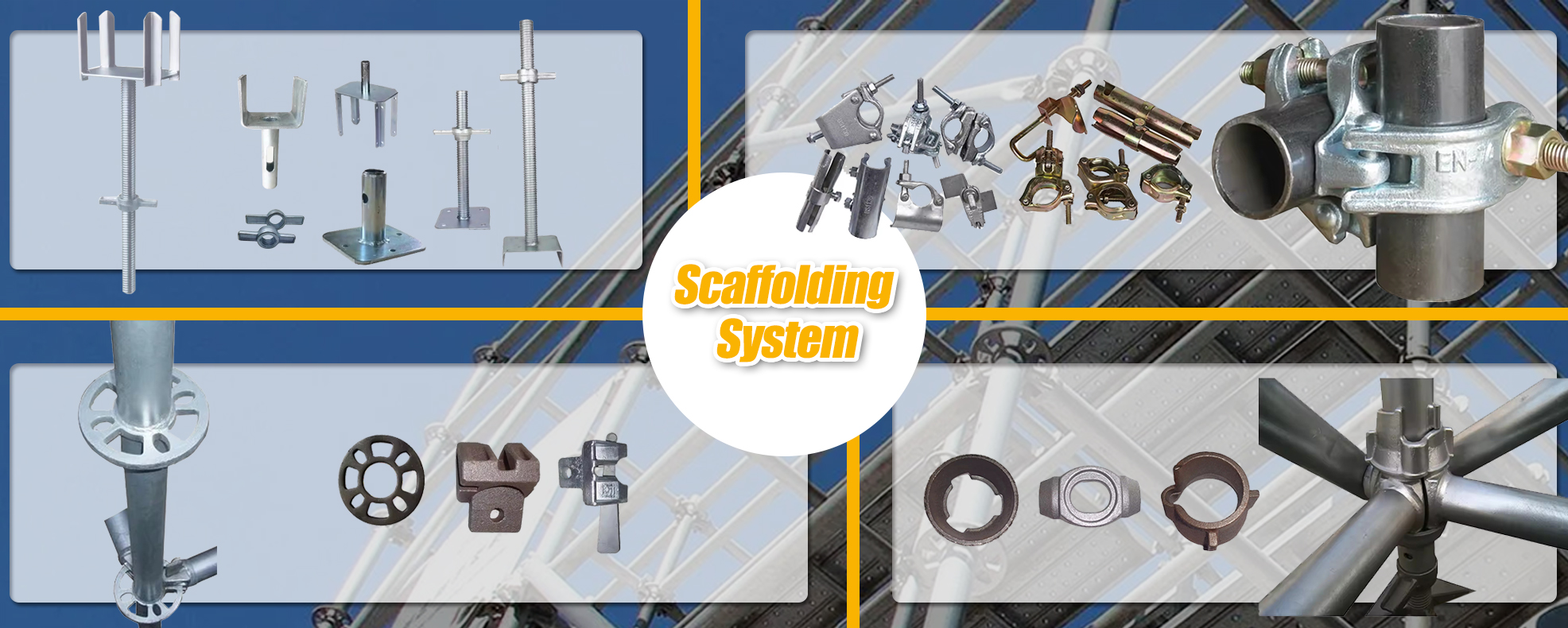

scaffolding couplers
