Steel Fence Post Bracket for Steel Retaining Walls

Short Description:

Galvanized Fence Bracket Join Timber And Steel Fence Posts To Retaining Wall Posts

The Arrow style Fence brackets / Fence cleats are specifically designed to join timber and steel fence posts to Retaining Wall Posts and are best suited for our UC100 galvanised steel channel posts to cover most of your requirements when adding a fence to your retaining wall.

  • FOB Price: US $500-800/ Ton
  • Min.Order Quantity: 20 Tons
  • Supply Ability: 20000 Tons per Month
  • Product Name: Steel Posts Arrow Fence Brackets
  • Surface Treatment: Galvanized
  • Brand Name: Rainbow
  • Product Detail

    Product Tags

    Product Description

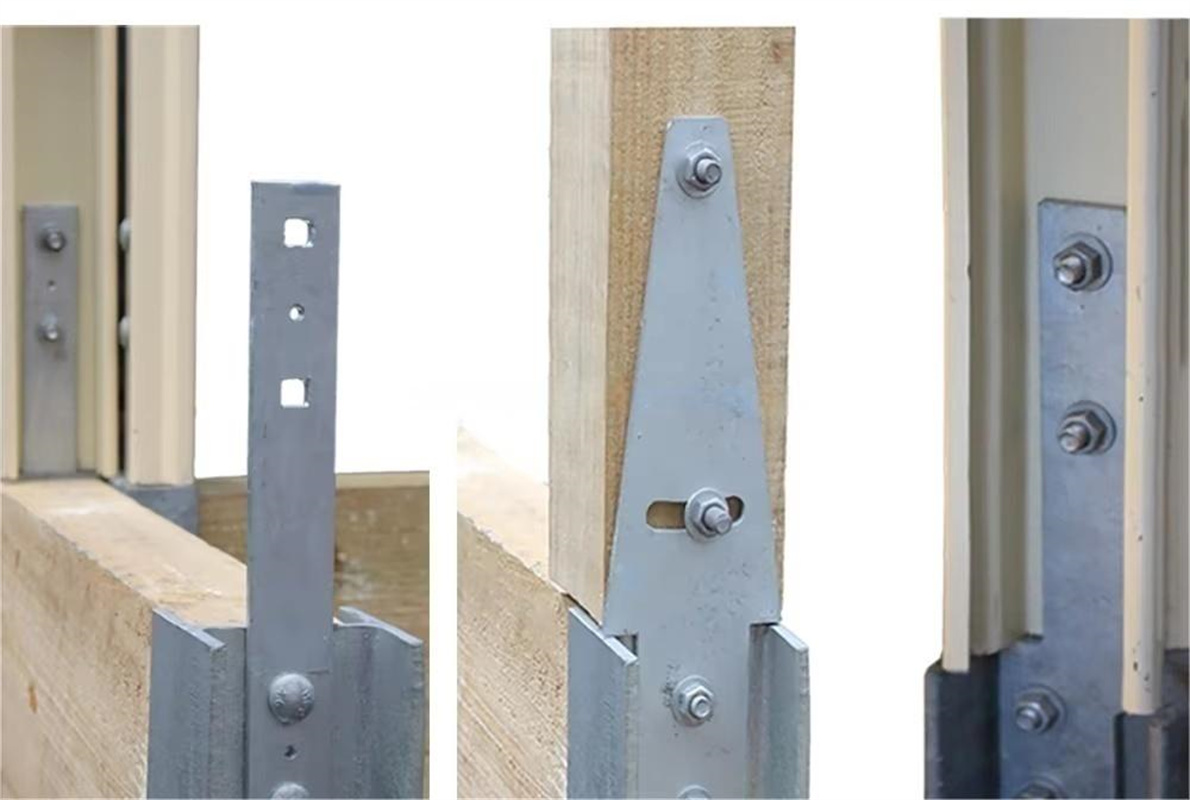

    FENCE (1)

    Galvanized Fence Bracket Join Timber And Steel Fence Posts To Retaining Wall Posts

    Fence Brackets are designed specifically to join timber and steel fence posts to our Galvanized Retaining Wall Posts.

    We stock Universal Columns, Parallel Flange Chanel as well as 45 degree and 90 degree Welded Corners.

    Their universal design makes it suitable for both 100mm & 150mm Retaining Wall Posts, providing easy installation when constructing timber and steel fencing on top of retaining walls.
    Features

    * Can be welded or bolted onto the steel channels
    * Heavy-duty 6mm thickness
    * Sleeper wall steel in stock with holes already drilled to suit brackets
    * Suits H-Channel Posts, C-Channel Posts, 90° Right Angle Posts, and 45° Corner Channel Posts

    Product type

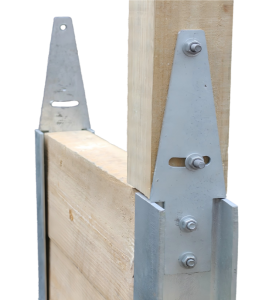

     Steel Fence Post Bracket for Steel Retaining Walls (Straight)

    图片1(2)

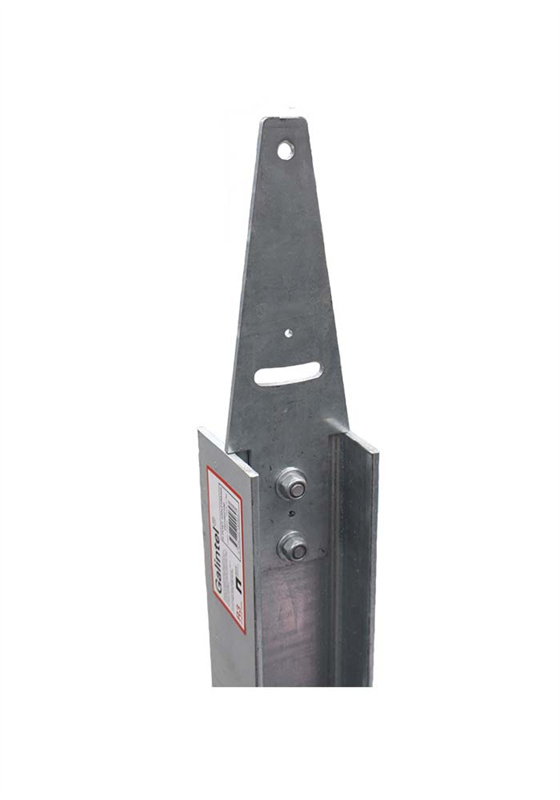

    100mm-Series-H-Section-Timber-Bracket2

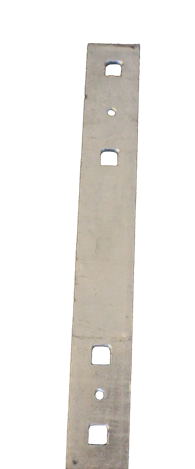

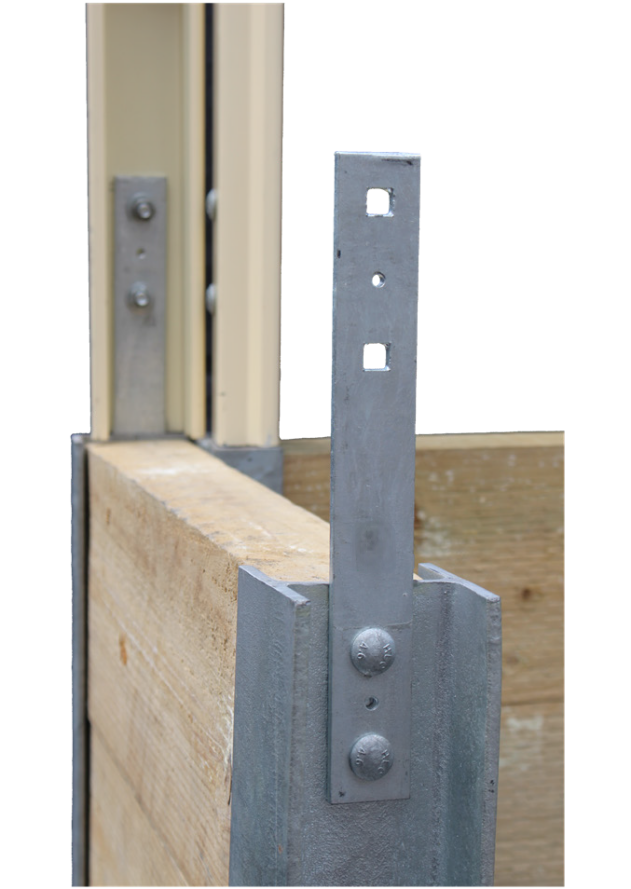

     Steel Fence Post Bracket for Steel Retaining Walls (Standard)

    图片3 图片4

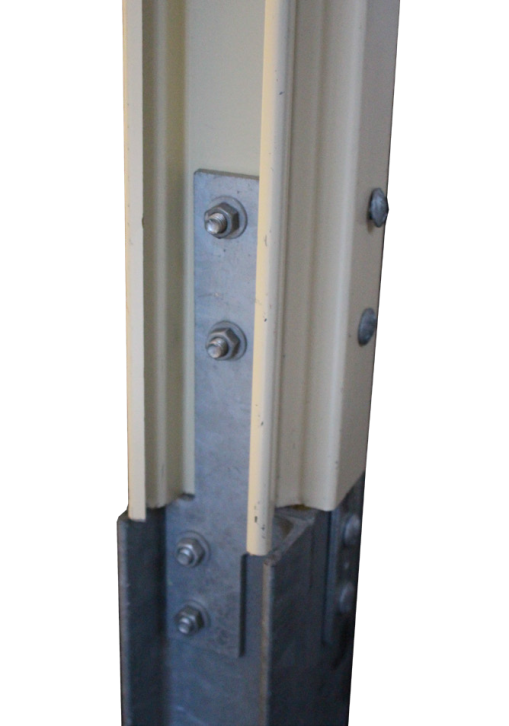

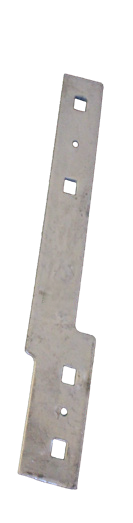

    Steel Fence Post Bracket for Steel Retaining Walls (Offset)

    图片5图片6

    Other categories

    Standard galvanized retaining wall fence post: suitable for most conventional retaining wall fence installation scenarios, specifications and sizes in line with industry standards, strong versatility.

    Reinforced galvanized retaining wall fence post: on the basis of the standard type, the thickness and strength of the steel are increased, which is suitable for scenes with high stability requirements, such as large-scale projects and heavy retaining walls.

    Customized galvanized retaining wall fence post: can be customized according to the special needs of customers, such as special size, special shape or special surface treatment requirements, etc., to meet the personalized project needs.

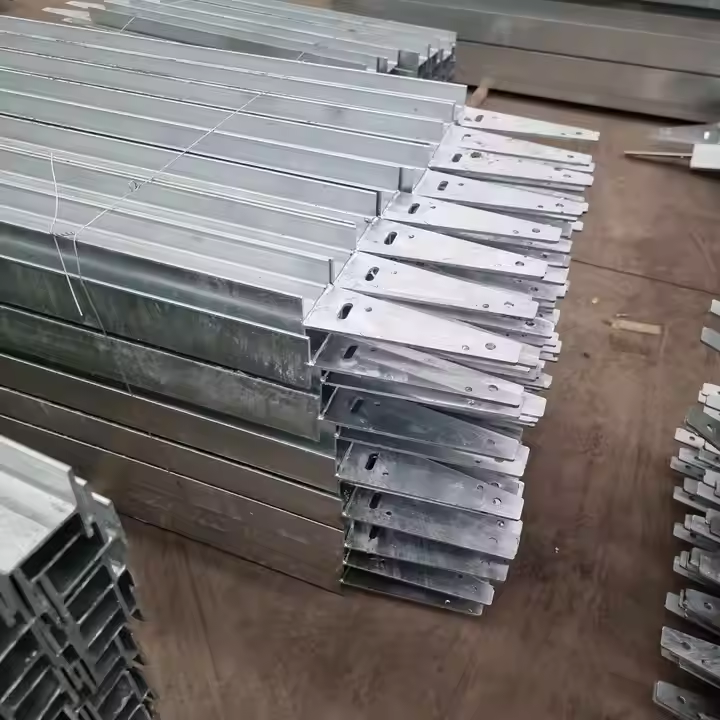

    H07ee48f9f9e84a18af48258bf704afc9u.jpg_720x720q50

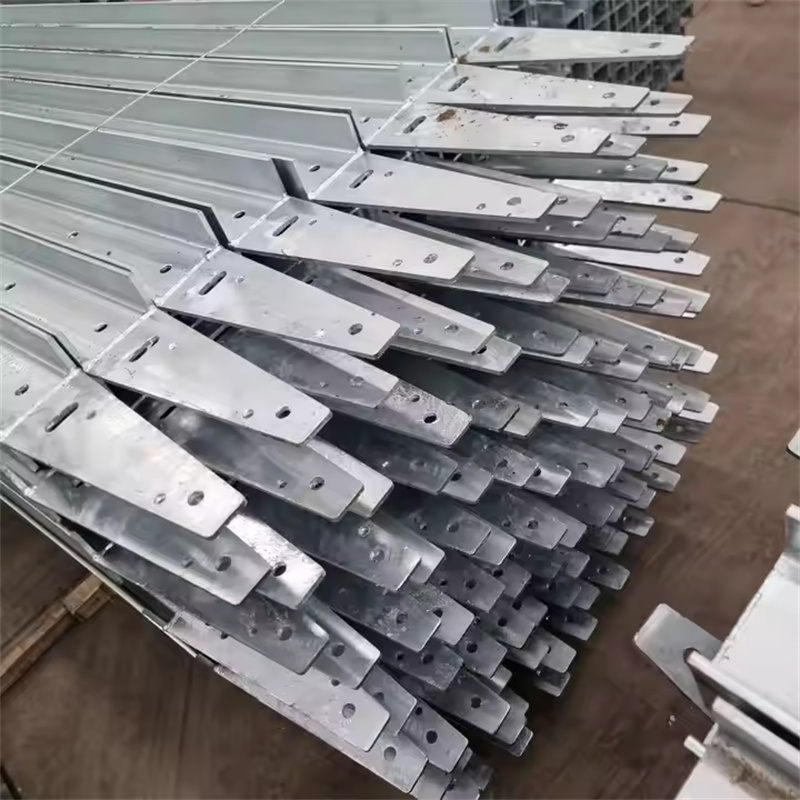

    H3b40bcd475f140998283303526b82261w.jpg_720x720q50

    Installation process

    安装1



    1.

    Fence Brackets

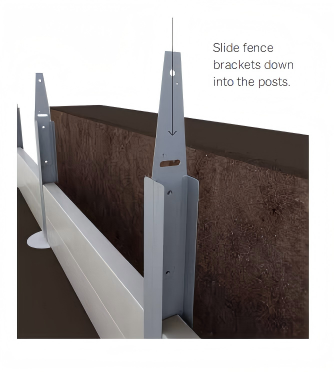

    Before installing the top level of concrete sleepers, slide fence brackets into place, making sure to align the holes in the posts with the fence bracket holes.

















    安装2

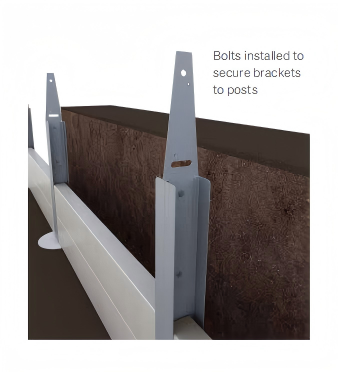

    2.

    Bolts Installed

    Firmly bolt the fence brackets to the posts ensuring the head of the bolt will still allow the concrete panel to be put in place.













    安装3









    3.

    Concrete Sleepers

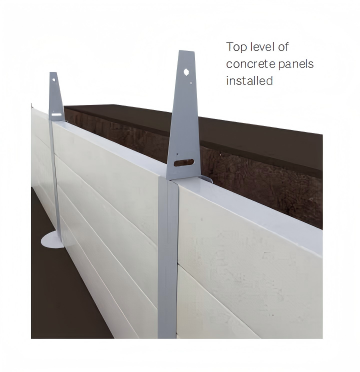

    Install top level of concrete sleepers flush with the top of the posts.











    安装4





    4.

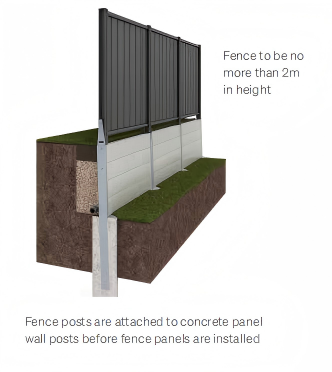

    Fence Installation

    Firmly bolt the fence brackets to the posts ensuring the head of the bolt will still allow the concrete sleepers to be put in place.

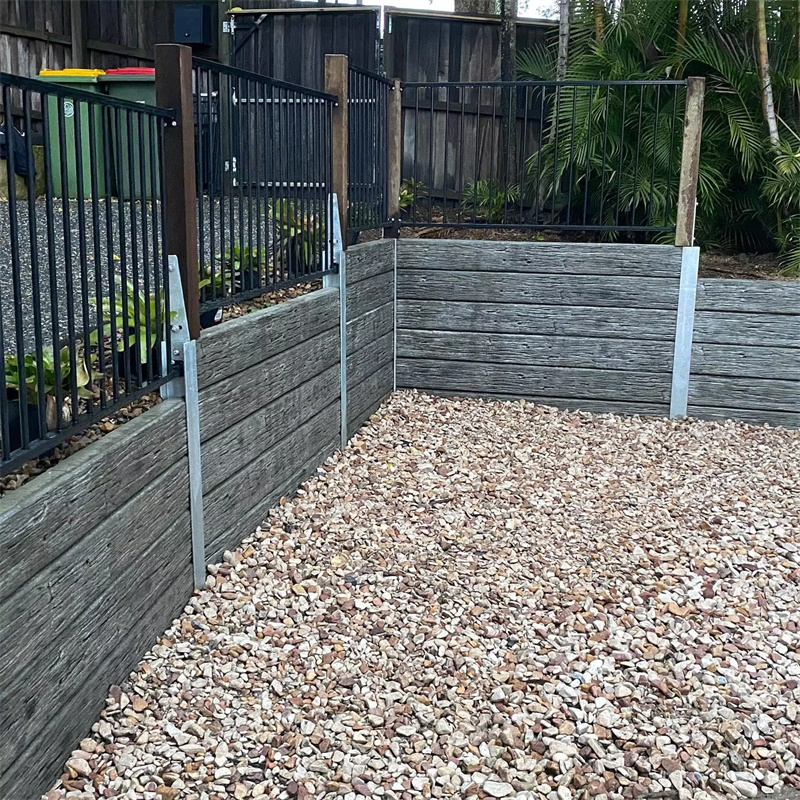

    Application

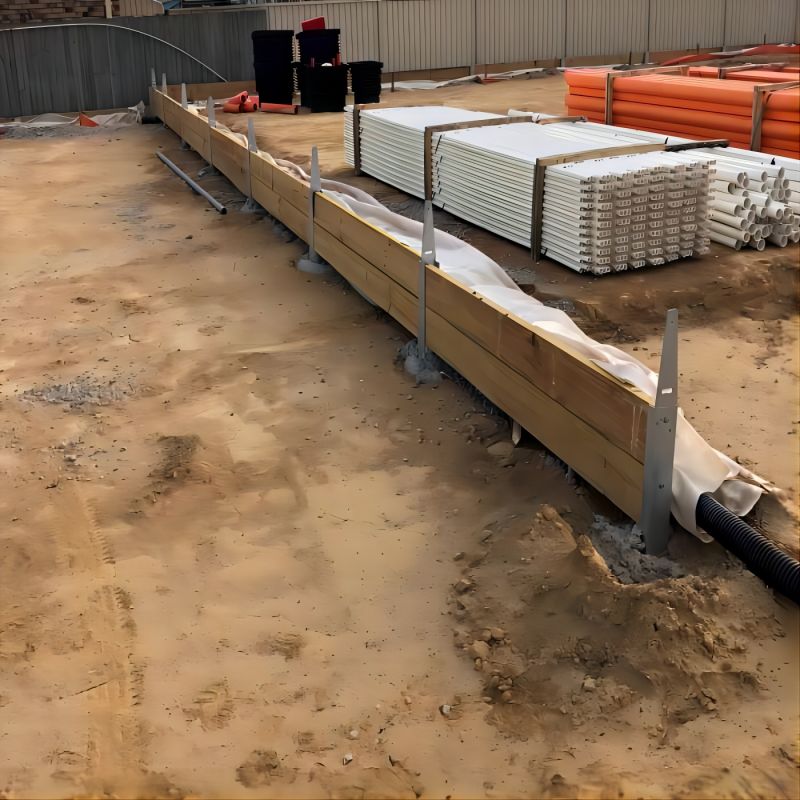

    retaining wall post (73)(1)(1)(1)



    H034950d79f1540209b9814c1fb7ad697j
