Short Description:

Different solar trackers are designed with different spindle steel tubes, usually in square and circular forms. As an important part of trackers, the square or circular spindle tube require high straightness and distortion. We strictly control the dimension accuracy and surface flatness of hot ro...


Product Detail

Product Tags

Related Video

Feedback (2)

High quality Initial,and Buyer Supreme is our guideline to offer the ideal assistance to our shoppers.At present, we are striving our best to become amongst the ideal exporters inside our industry to satisfy shoppers more want for Solar Racking , Conduit Pipe 25mm , Ground Solar Array , For even more inquires remember to do not hesitate to get in touch with us. Thank you - Your support continuously inspires us.
Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow Detail:

Different solar trackers are designed with different spindle steel tubes, usually in square and circular forms. As an important part of trackers, the square or circular spindle tube require high straightness and distortion. We strictly control the dimension accuracy and surface flatness of hot rolles coils from the material link, and then cut and twist the coils twice after the production of steel tubes is completed. Straightening to ensure that our products fully meet the requirements of the drawings.

Pipe material is usually Q355 or S355. According to customer’s requirements, hot dip galvanizing or pre-galvanizing can be selected.

Torque Square Tube

Material: Q355,S355

Standard: GB/T6728, ASTM A500 Gr.B

Surface: Hot dip galvanized according to ASTM A123, BS4687, GB/T13912, Pre galvanized according to ASTM A653M G90

Specification: 80*80*3MM, 100*100*4MM, 110*110*4MM, 150*150*5MM

Pcking: bundle packing or steel pallet packing, suitable for long ditance ocean transportation

Characters: Our raw material for foundation piles is hot rolled coil from China first -class iron and steel company. Perfect Quality Management System which can track the heat number completely. Our average thickness of hot galvanied znc layer reaches 80 microns, we provide cuatomized packaging and overall packing plan for customers, greatly improving the safety of goods and unloading speed.

Characteristic tolerance
Concavo convex degree Less than 0.6% of the side length and a minimum of 0.4mm
Twist degree =2+Total Length (mm)*0.5/1000
Right angle 90°±0.5°
Straightness Less than 0.2% of the total length and less than 2mm per meter
Length tolerance L(total length)+2mm

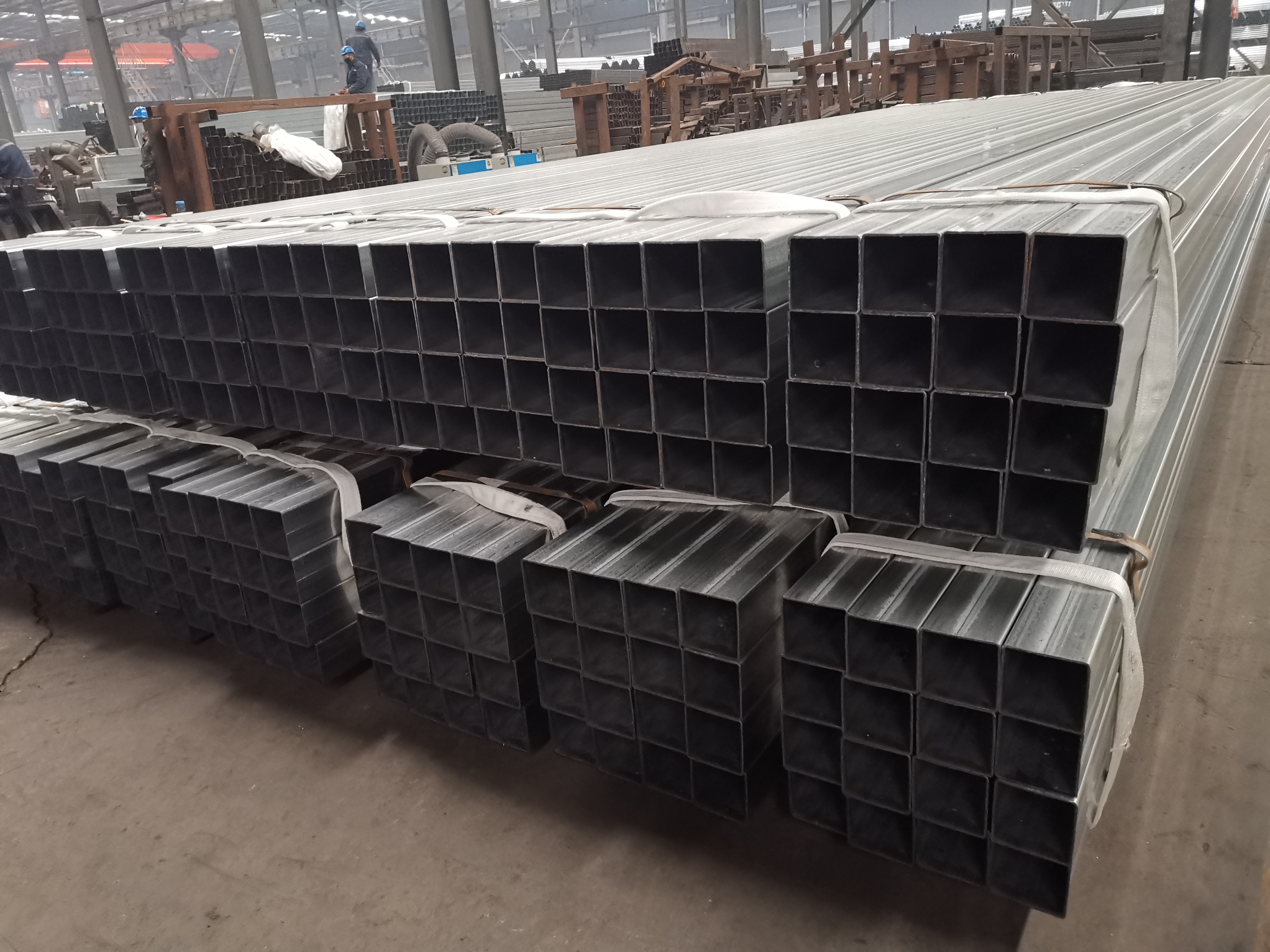

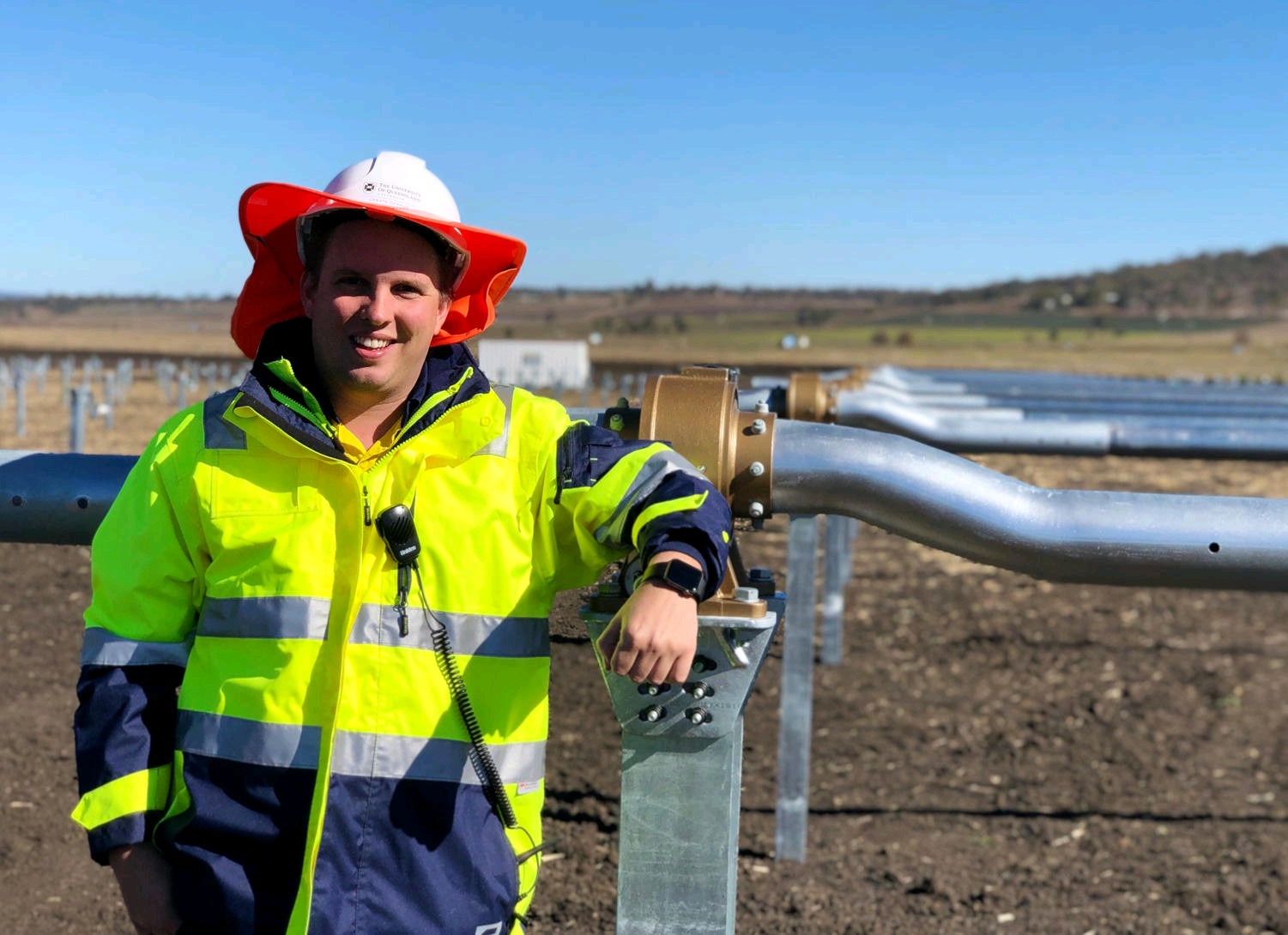

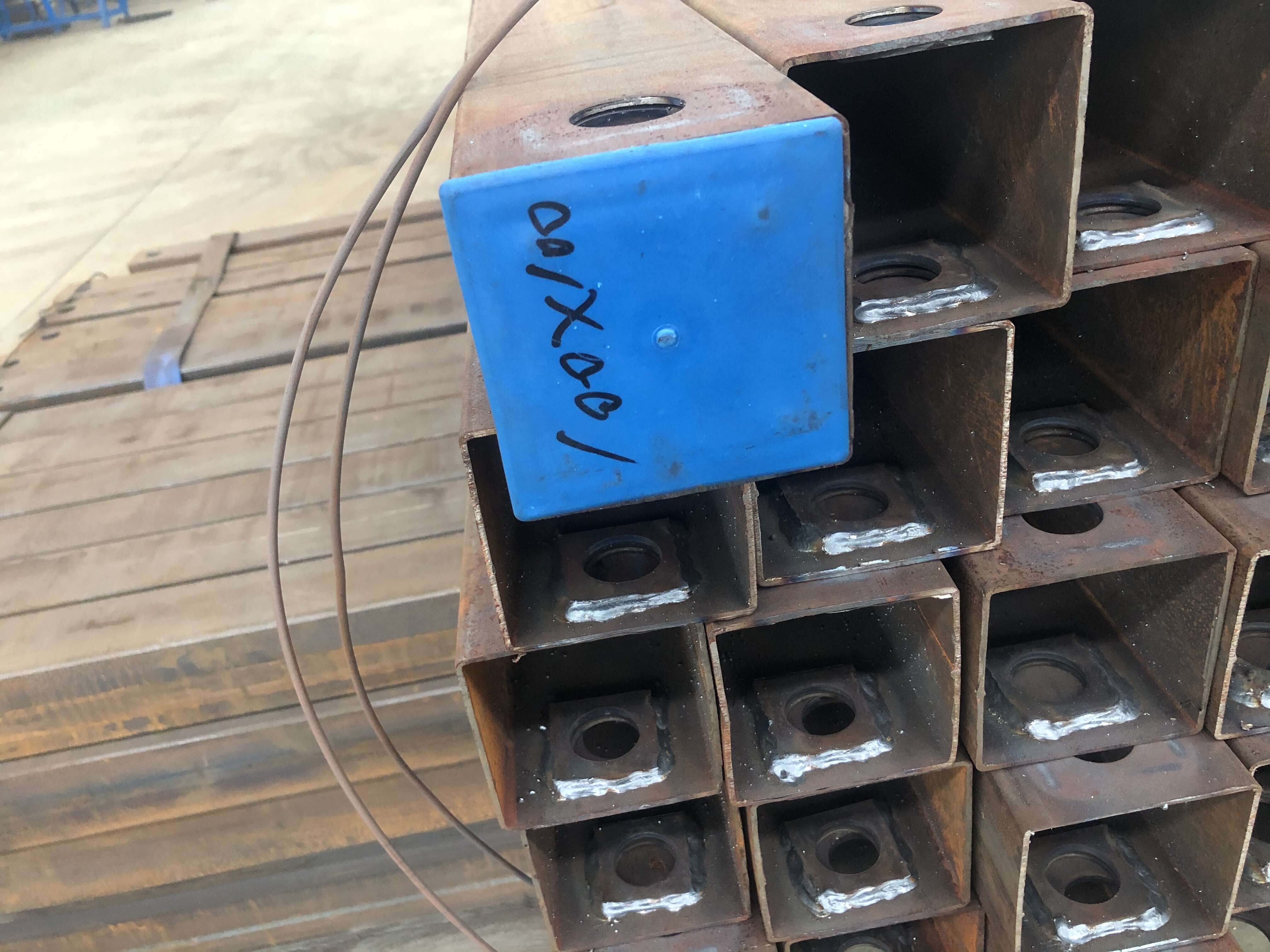

NT PIPE QQ图片20200229112738 QQ图片20200417092838 torque 4

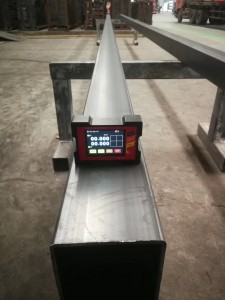

150x150mm方管 扭曲度测试2




Product detail pictures:

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures

Steel H Channel Beams - Square pipe for Solar Tracking System – Rainbow detail pictures
