Steel Sheet Pile

Short Description:

 are used in earth retaining structures where a differential surface level is to be established. The sheet pile forms the vertical interface.

Steel sheet piles are used for both temporary and permanent retaining walls. Structures include basements, underground carparks and abutments for bridges including integral bridges.


Product Detail

Product Tags

Product Description:

Steel Sheet Pile





 are used in earth retaining structures where a differential surface level is to be established. The sheet pile forms the vertical interface.

Steel sheet piles are used for both temporary and permanent retaining walls. Structures include basements, underground carparks and abutments for bridges including integral bridges.





Product Display:

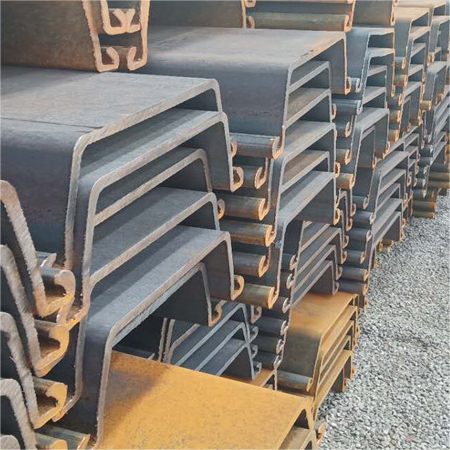

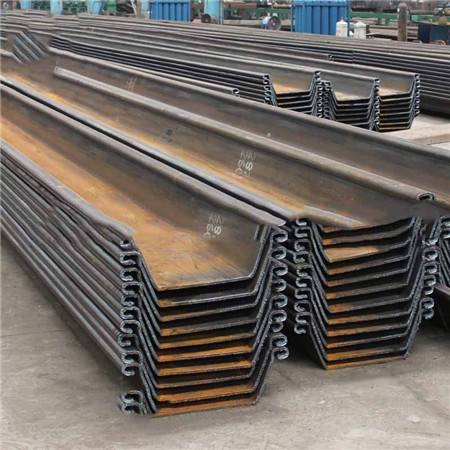

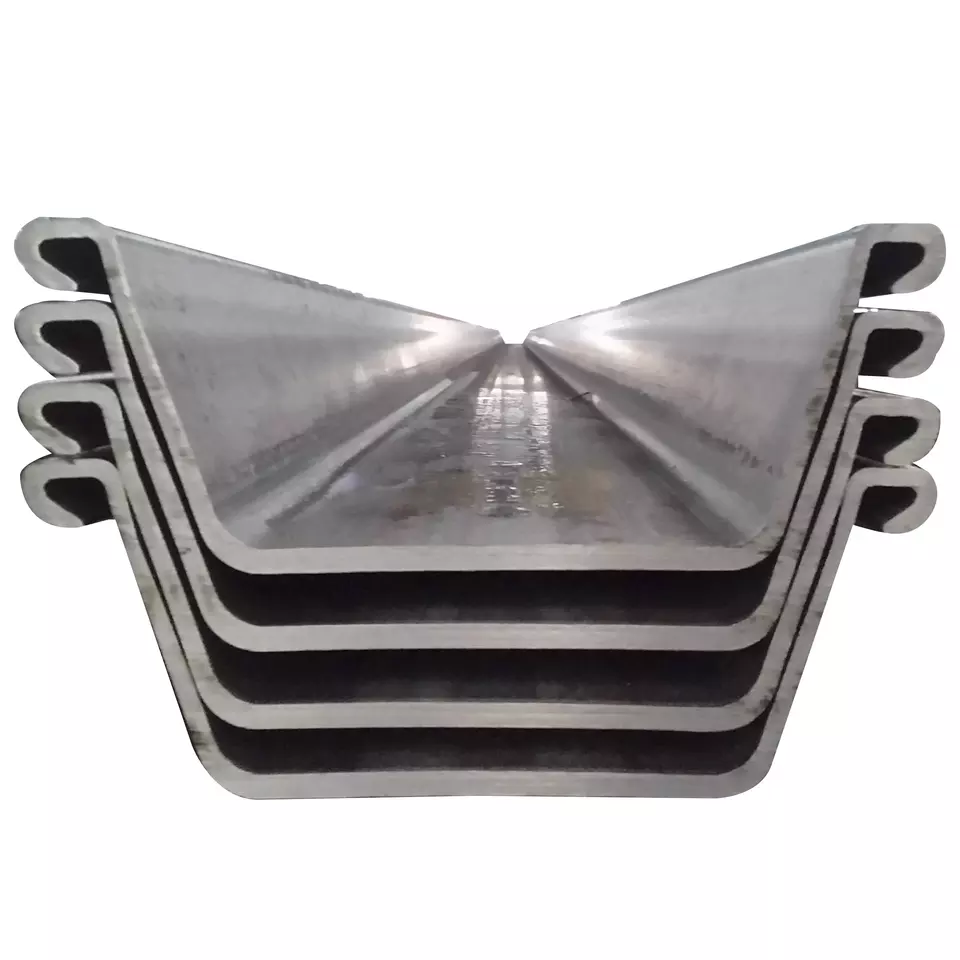

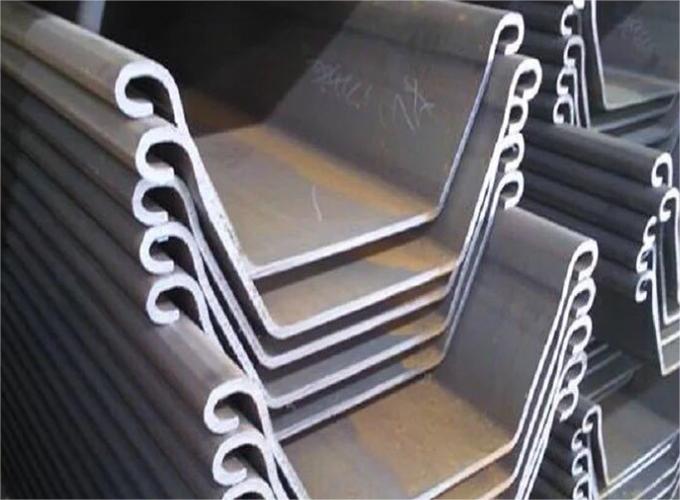

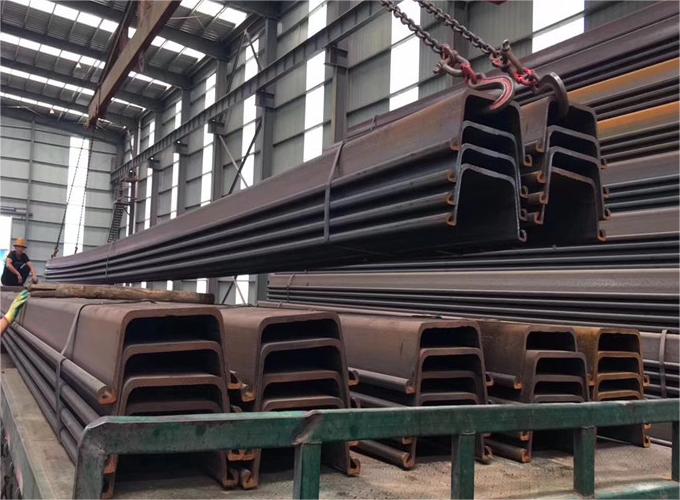

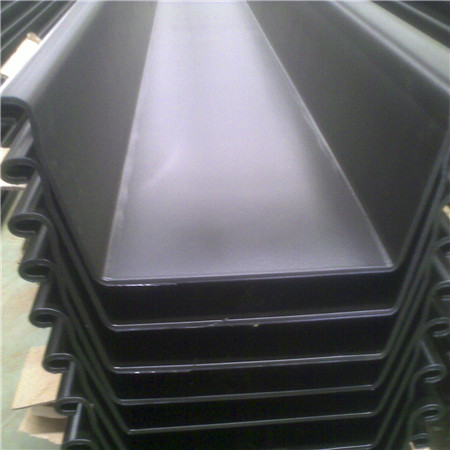

Steel Pile
Steel Pile
Steel Sheet Pile
Steel Sheet Pile
Steel Sheet Pile

 Advantages:

1.With strong bearing capacity and light structure, the continuous wall composed of steel sheet piles has high strength and rigidity.

2.Good water tightness, lock joint of steel sheet pile is closely connected, which can prevent seepage naturally.

3.The construction is simple, can adapt to different geological conditions and soil quality, can reduce the excavation volume of the foundation pit, the operation occupies a small site.

4.Good durability, depending on the difference in the use environment, the life can be as long as 50 years.

5.Construction is environmentally friendly, and the amount of soil taken and concrete used is greatly reduced, which can effectively protect land resources.

6.Efficient operation, very suitable for rapid implementation of flood control, collapse, quicksand, earthquake and other disaster relief and prevention.

7.Materials can be recycled for repeated use, and can be reused for 20-30 times in temporary projects.

8. Compared with other monomer structures, the wall is lighter and has greater adaptability to deformation, which is suitable for the prevention and treatment of various geological disasters.

Product Specification:

STEEL SHEET PILE

SIZE (W*H)

Width (mm)

Height (mm)

WEB THICKNESS (mm)

PER PIECE

PER METER

Sectional Are (cm2)

Theoretical Weight (kg/m)

Sectional Are(cm2)

Theoretical Weight (kg/m2)

400*100

400

100

10.5

61.18

48.0

153.0

120.1

400*125

400

120

13.0

76.42

60.0

191.0

149.9

400*150

400

150

13.1

74.4

58.4

186.0

146.0

400*170

400

170

15.5

96.99

76.1

242.5

190.4

500*200

500

200

24.3

133.8

105

267.6

210.0

500*225

500

225

27.6

153

120

306.0

240.2

600*130

600

130

10.3

78.7

61.8

131.2

103.0

600*180

600

180

13.4

103.9

81.6

173.2

136.0

600*210

600

210

18.0

135.3

106.2

225.5

177.0



750

204

10

99.2

77.9

132

103.8

700*205

750

205.5

11.5

109.9

86.3

147

115.0



750

206

12

113.4

89

151

118.7

Product Applications:

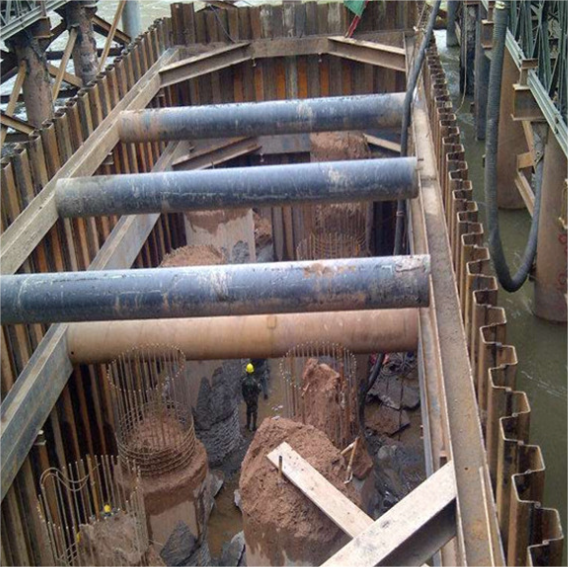

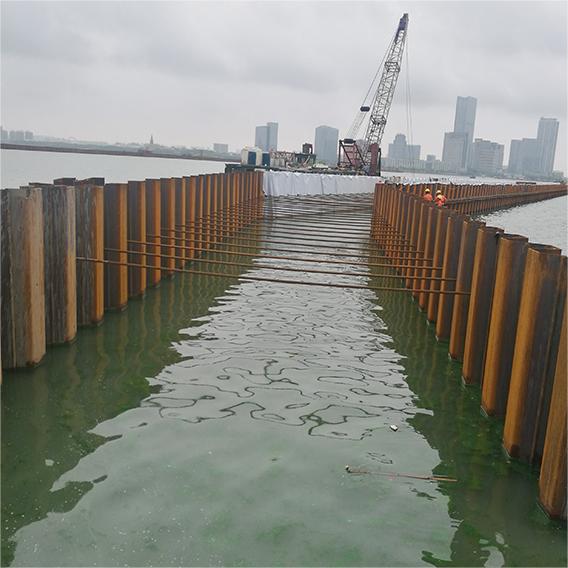

Steel Sheet Pile 4
Steel Sheet Pile 3

 has a wide range of applications, listed as follows;

(1) River bank protection and flood control. Steel sheet pile is usually used in river revetment, ship lock, lock structure and flood control, its advantage is easy to water construction; Long service life.

(2) water catching station. Steel sheet piles, which used to be used as temporary supports for pumping stations, can also be used for permanent structures, greatly reducing construction time and costs. Pumping stations tend to be rectangular structures, but from the existing open structures, circular will be the future development trend.

(3) Bridge pier. The use of steel sheet piles is most economical when the pile is under load or when the construction speed is required. It can play the role of both foundation and pier, and can operate in one direction, taking up little time and space.

(4) Road widening retaining wall. The key of road widening construction is land occupation and construction speed, especially in the case of borrowing other lanes, steel sheet pile can meet the above requirements, without soil excavation and clearing.

Do you need a reliable and efficient retaining structure solution? You can do that with our sheet piles, the ultimate choice for building different surface levels. As a leading manufacturer of steel sheet piles in China, we bring you a revolutionary product that is ideal for both temporary and permanent retaining walls. With our state-of-the-art technology and high-quality materials, we are proud to provide you with products that exceed your expectations.

Our sheet piles are designed to provide you with a stable and durable vertical interface, making them ideal for a variety of structures. Whether you are building basements, underground car parks or abutments, our sheet piles are the perfect choice. With their exceptional strength and flexibility, they ensure maximum safety and stability for your projects.

Our factories in China focus on steel plate manufacturing. Our team of skilled professionals utilizes advanced manufacturing techniques to produce high quality sheet piles that meet international standards. With our commitment to excellence, we ensure that every sheet pile we produce is of the highest quality and can withstand the harshest environmental conditions.

One of the key attributes of our sheet piles is that it is made from cold rolled steel. This process enhances the strength and durability of the pile, making it very reliable for long-term use. Additionally, our sheet piles are galvanized for superior corrosion resistance. This ensures your retaining walls will remain intact and strong even in challenging environments.

As one of the top galvanized steel sheet manufacturers in China, we take pride in offering products that exceed industry standards. Our commitment to customer satisfaction drives us to continuously improve our manufacturing processes and develop innovative solutions. By choosing our sheet piles, you are investing in a durable product that will stand the test of time.

In conclusion, our sheet piles are the ultimate solution for all your earth retaining needs. With its unrivaled strength, stability and corrosion resistance, it is ideal for both temporary and permanent retaining walls. As a leading steel sheet pile manufacturer in China, we prioritize quality and customer satisfaction. By choosing our products, you are making a wise investment in a reliable and durable solution. So why wait? Contact us today and experience the difference with our sheet piles. Sheet Pile China is your trusted partner for all your sheet pile needs.
