W10x22 Steel H Beam

Short Description:

 is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its section is the same as the English letter “H”.


Product Detail

Product Tags

Product Description:

 is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its section is the same as the English letter "H". Since the various parts of the  are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance, simple construction, cost saving and light structure in all directions.

H beam9
h beam 6

The material is made of American standard wide-flange  with the size standard of ASTM A6. The steel grade can be selected between ASTM A572 GR50 /GR60, ASTM A992 or Q355. The hot-dip galvanizing meets ASTM A123, ISO1461 and AS/NZS4680 standards. Of course, we are also happy to meet other quality standards and different HDG coating thickness for our customers, as it is our tradition to quickly respond to customer needs and act immediately. The company's long-term inventory of the common specifications of the WF beams 2000 tons, to meet the customer's fastest delivery requirements.

Product Specification:

H Beam-2

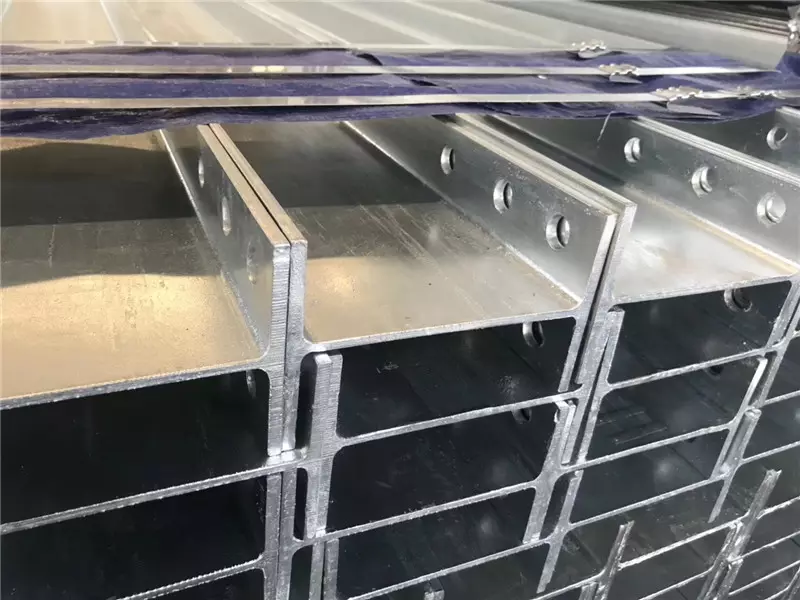

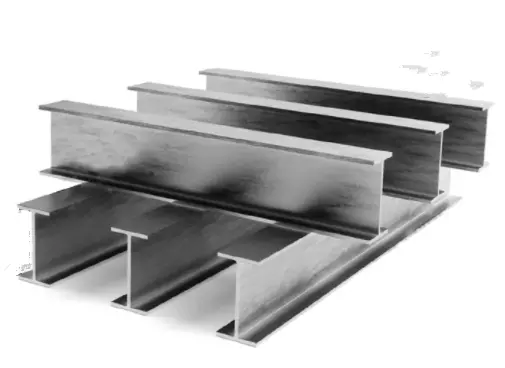

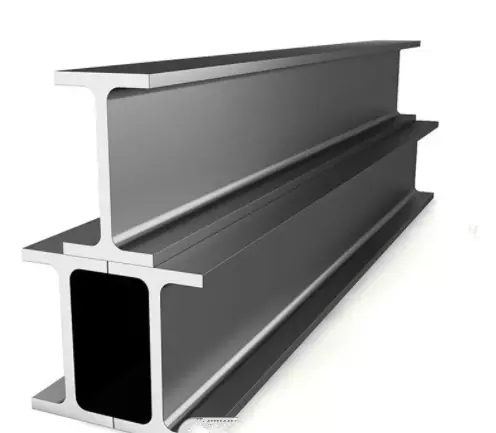

Product Display:

h beam 7
h beam 8

Quality is our most basic Principle. We always adhere to our Quality Policy of Qualified, Stable and Continuous Improvement.Allrawmaterials are selected from the national leading steel companies, steel grade comply with Q235, Q355, ASTM A572 GR50/60, and EN10025 S355. Thesurface anti-corrosion hot-dip galvanizing process according to ASTM A123, EN1461 and B/T13912 standards, and the minimum average coating thickness can be 65-85 microns or eve 100 microns according to customer requirements. In accordance with the ISO9001 managementsystem, we strictly controls quality input, process control and furnace number tracking, and has established a complete quality file storage and trace-ability system to provide max 25 years quality assurance.

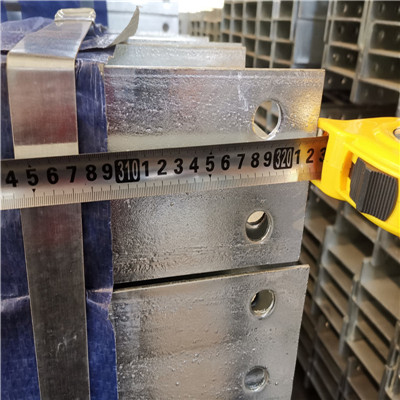

Inspection:

H beam inspection
H beam post
